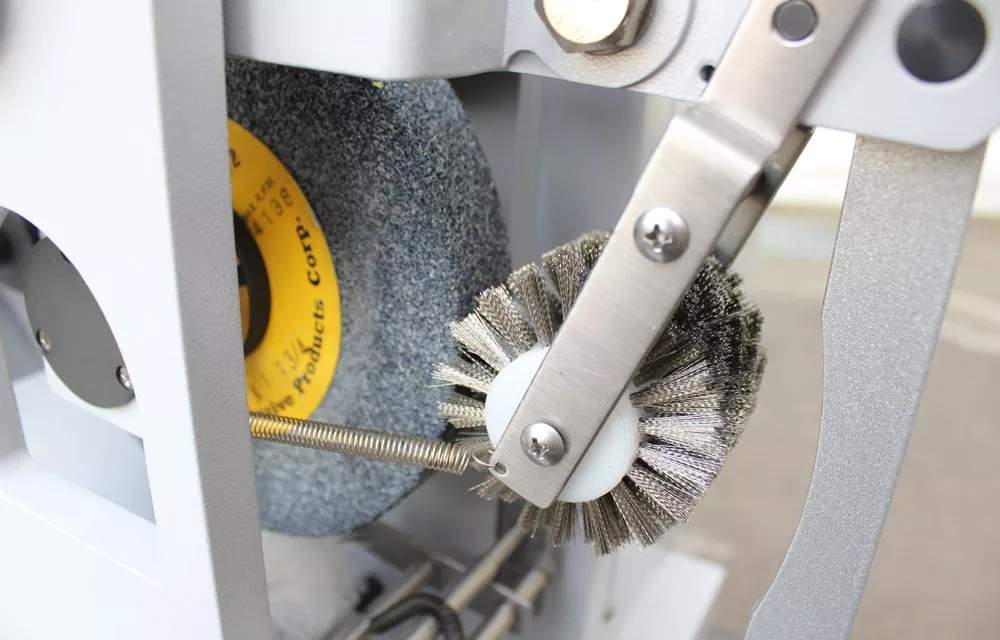

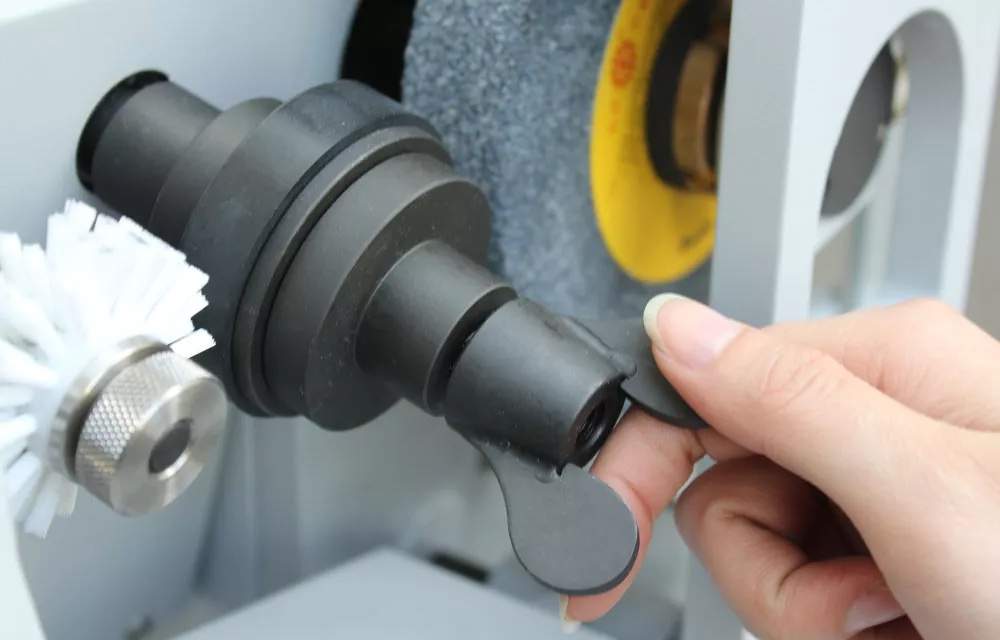

Akron Abrasion Tester

Akron abrasion tester is used for testing wear-resisting property of vulcanized rubber. Friction between sample and grinding wheel at certain leaning angle and load, the machine tests abrasion volume of sample at a certain range. The machine complies with GB/T 1689 Test for Wear-Resisting Property of Vulcanized Rubber standard requirements.

Specifications for the Akron Abrasion Tester
Model QT-AA100 QT-AAB100
Grinding Wheel Outside dia Φ150mm,25mm(w),grit 36# Outside dia Φ150mm,25mm(w),grit 40#
Grinding wheel rotating speed 34±1r/min 35±1r/min
Specimen Slanted Range 0~35° adjustable
Specimen Rotating speed 76±2r/min 85±1r/min
Load 26.7N±0.2 1kg. 6lb
Counter LCD,0~99,999,999
Dimension (W×D×H) 59 × 49 × 49 cm
Weight (approx.) 60 kg
Power 1∮,AC220V, 50Hz (Specified by user)


For more information about Akron Abrasion Tester, please call us at 1.877.884.8378 or Click the button below.
