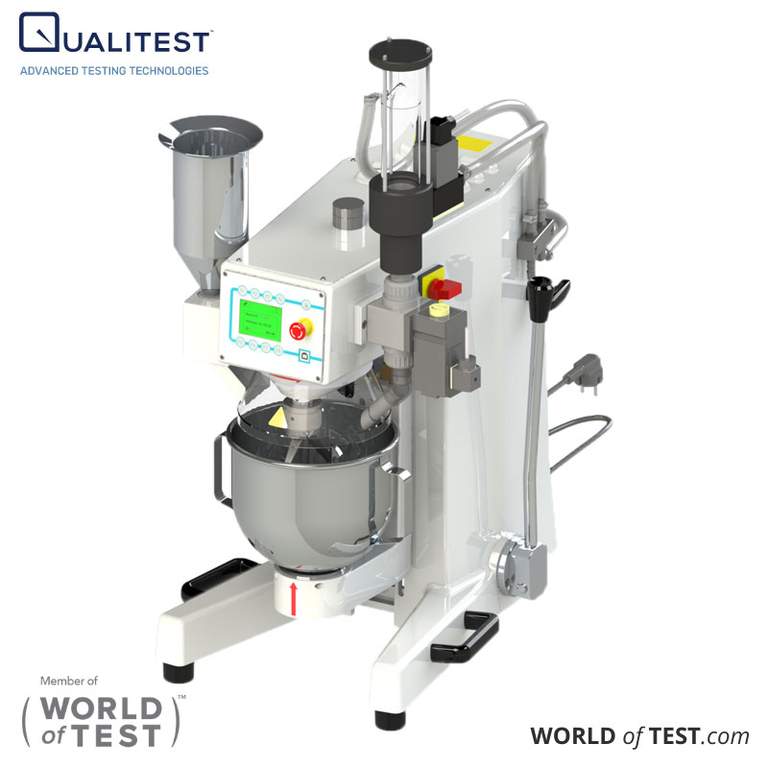

Automatic Mortar Mixer - QualiMIX

Automatic Mortar Mixer - QualiMIX

EN 196, DIN 1164, ASTM C 305, AASHTO T162

The Automatic Mortar Mixer - QualiMIX series is used to make cement mortar and cement paste. It is offered in both manual switching or fully automatic. The unit comes with comprehensive safety equipment, a mixing bowl cover, electronic position monitoring of the mixing bowl, restart protection emergency stop switch, multilingual display and is freely programmable.

Safety Features of the Automatic Mortar Mixer - QualiMIX

  • Safety cover of the mixing bowl to protect against rotating parts (finger protection)
  • Electronic position monitoring of the mixing bowl, ex. the mixer only works if the bowl is correctly inserted in the holders and is in the working position.
  • Restart protection, ex. follwoing system faults the machine must be switched on again.
  • EMERGENCY STOP switch
  • Clear layout of the controls
  • Stable handles for safe transport of the mixer by hand
  • Funnel for filling
  • Optional: LED lighting, for improved view of the mixture in the mixing bowl.

The heavy-duty design is made of aluminum and grey cast iron. The mixing bowl is connects to the mixer using a quick-release clamping system for convenience and quicker operation. The distance between the mixing bowl and stirrer is 3±1 mm and can be finely set using a simple device. The mixing bowl and stirrer are made of stainless steel. The drive has a powerful three phase DC motor. Quiet, maintenance-free operating due to planetary gears with toothed belt drive. The Automatic Mortar Mixer - QualiMIX comes with 2 mixing speeds: 140±5RPM and 285±10RPM. The mixing bowl can be lowered using a lifting device.

Base Area 390 x 600 mm
Height 700-860 mm
Weight, gross/net approx. 70 / 62 kg
Connected loads 400V / 50Hz / 0.37kW
110V / 60Hz / 60Hz
230V / 50Hz / 60Hz



Available Models

QualiMIX 3 Series
QualiMIX 3 Series

EN 196 / DIN 1164 / ASTM C305 etc.

5 litre capacity with manual switching.
Heavy duty design made of aluminum and grey cast iron mixer bowl and stirrer made of stainless steel
2 mixing speeds: 140 / 285 RPM
Power: 400V / 50Hz, 110V / 60Hz, 230V / 50-60Hz

QualiMIX 3i Series
QualiMIX 3i Series

EN 196 / DIN 1164 / ASTM C305 etc.

5 litre capacity with manual switching, sand dispenser, manually controlled
Heavy duty design made of aluminum and grey cast iron mixer bowl and stirrer made of stainless steel
2 mixing speeds: 140 / 285 RPM
Power: 400V / 50Hz, 110V / 60Hz, 230V / 50-60Hz

QualiMIX 5 Series
QualiMIX 5 Series

EN 196-1+3 / DIN 1164-5+7 / ASTM C305 etc.

5 litre capacity with programmed mode (can also be run manually), sand dispenser
Heavy duty design made of aluminum and grey cast iron mixer bowl and stirrer made of stainless steel
2 mixing speeds: 140 / 285 RPM
Power: 400V / 50Hz, 110V / 60Hz, 230V / 50-60Hz

QualiMIX 6 Series
QualiMIX 6 Series

EN 196-1+3 / DIN 1164-5+7 / ASTM C305 etc.

5 litre capacity with programmed mode (can also be run manually), sand dispenser, and water metering
Heavy duty design made of aluminum and grey cast iron mixer bowl and stirrer made of stainless steel
2 mixing speeds: 140 / 285 RPM
Power: 400V / 50Hz, 110V / 60Hz, 230V / 50-60Hz

QualiMIX 6i Series
QualiMIX 6i Series

EN 196-1+3 / DIN 1164-5+7 / ASTM C305 etc.

5 litre capacity with programmed mode (can also be run manually), sand dispenser, water metering, and dust extraction
Heavy duty design made of aluminum and grey cast iron mixer bowl and stirrer made of stainless steel
2 mixing speeds: 140 / 285 RPM
Power: 400V / 50Hz, 110V / 60Hz, 230V / 50-60Hz

QualiMIX 6ii Series
QualiMIX 6ii Series

EN 196-1+3 / DIN 1164-5+7 / ASTM C305 etc.

5 litre capacity with programmed mode (can also be run manually), sand dispenser, and variable water metering
Heavy duty design made of aluminum and grey cast iron mixer bowl and stirrer made of stainless steel
2 mixing speeds: 140 / 285 RPM
Power: 400V / 50Hz, 110V / 60Hz, 230V / 50-60Hz

QualiMIX 6iii Series
QualiMIX 6iii Series

Automatic Mortar Mixer - QualiMIX 6iii Series

ASTM C 109, C 305 / EN 196

  • Automatic program control, sand feeder, variable water dosing system and dust extraction system, (Seven different water amounts can be programmed into the system on request)
  • EN 196: 225 ml (6 amounts freely programmable)
  • ASTM C109: 230, 242, 340 and 359 ml (3 amounts freely programmable) Stored mixing programs: ASTM C305
  • 2 mixing speeds:140 ± 5 rpm, 285 ± 10 rpm, Mixing bowl and stirrer made of stainless steel, Weight: 72 kg, 400 V / 50 Hz
QualiMIX 6iv Series
QualiMIX 6iv Series

ASTM C 109, C 305

  • with additional consistency measurement
  • ASTM C305, C109 With sand feeder and variable water dosing system.
  • A certain workability of the mortar can be achieved by controlled water supply. We start normally with 200 ml water amount, reach approx. 5 Nm torque and add additional water until the right workability is reached normally at a torque of 3 Nm. In addition, for the production of standardized mixtures with a fixed set of standard program ASTM C305
  • 2 mixing speeds:140 ± 5 rpm, 285 ± 10 rpm
  • Mixing bowl and stirrer made of stainless steel
  • 400 V / 50 Hz
