Box Compression Tester - 7001 Series
Box Compression Tester - i-Boxtek 1700

Box Compression Tester - 7001 Series

Meeting TAPPI-804, JIS-Z0212, and other International Standards

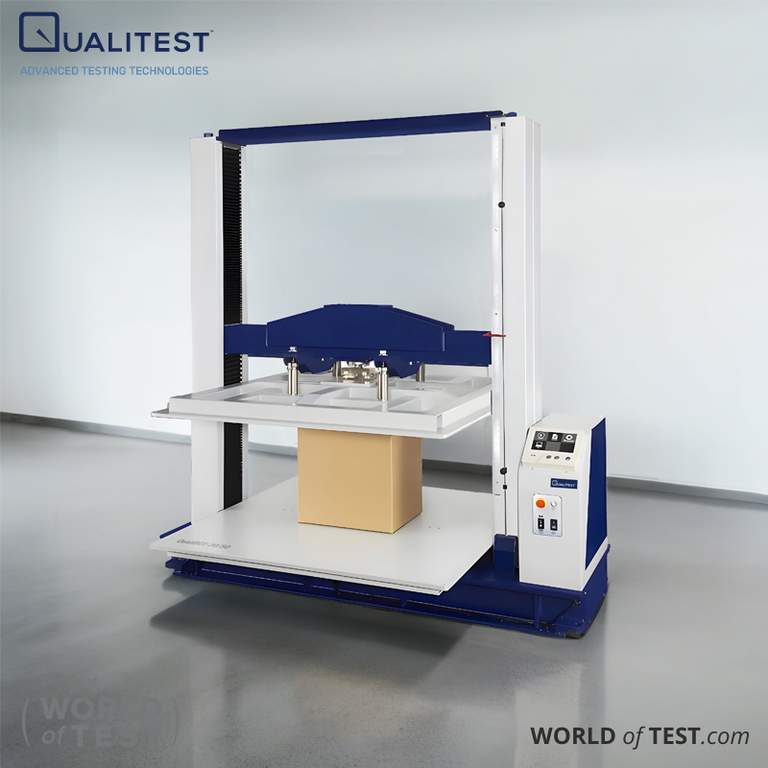

The 7001-Series advanced Box Compression Testers are PC-controlled systems primarily used in the packaging industry for determination of the compression strength of cartons, containers, cardboard boxes, etc. The top model 7001-DS is driven with AC servo motor for ideal and smooth control of speed from 0.001 to 200mm/min. The model 7001-D is the lower cost hydraulic microcomputer system with U25 indicator for general testing purposes.

Specifications of the Box Compression Tester
Item Descriptions
Capacities 2, 5, or 10 tons (20kN, 50kN, or 100kN)
Units lbf, kgf, N, KN, kPa, MPa
Resolution 1/200,000
Accuracy Within +/- 0.5%
Test Space 1500 × 1500 × 1500mm or specified
Display method U62 Dedicated software
Compression Speed 0.001 ~200 mm/min
Speed Accuracy Within +/- 0.5%
Motor AC Servo-motor
Dimensions of Main Unit 200× 120 × 196cm
Dimensions of Computer/Desk 113 × 66 × 87cm
Weight of Main Unit 1240kg
Weight of Computer/Desk 60kg
Power 3∮, AC220V,50/60HZ,15A/3∮,AC 380V,50/60HZ,12A(specified by user)



Box Compression Tester - i-Boxtek 1700

ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, JIS Z0212, GB/T 16491, GB/T 4857.4, QB/T 1048-2004

i-Boxtek 1700 Box Compression Tester is designed for the determination of compressive resistance, deformation and stacking capability of cartons and beehive crates, which can be used to judge the ability of cartons to resist compression. It is also available for compression resistance test of plastic tanks (for edible oil and mineral water), paper tanks, paper cases, IBC tanks, hollow containers and other packages. i-Boxtek 1700 supports online data management and relevant data monitoring

Features:

  • Three test modes are available: crushing force test, stacking test A and stacking test B
  • Wide power input, step motor control and three test speeds to meet different test requirements
  • Over-load protection, maximum stroke protection and error alert provide a safe test operation
  • The instrument utilizes Windows operation interface and can be easily operated with a mouse and a keyboard
  • Test pressure and deformation can be dynamically displayed on standard LCD monitor
  • Equipped with four USB ports and dual Internet ports make it convenient for data transmission
  • Miniaturization and integration structure design is suitable for various test environment
  • Embedded computer control system provides safer and more reliable data management as well as test operation

Basic Applications

  • Crushing Test of Cartons
  • Test crushing force of corrugated cartons and beehive crateS
  • Stacking Test A of Cartons
  • Test deformation of corrugated cartons and beehive crates as stack behavior generates
  • Stacking Test B of Cartons
  • Test deformation of corrugated cartons and beehive crates and judge whether the deformation is within the qualified range at fixed time and pressure.

Extended Applications

  • Crushing Test of Hollow Containers
  • Test crushing force of hollow containers and other samples
  • Stacking Test A of Hollow Containers
  • Test deformation of hollow containers as stack behavior generates
  • Stacking Test B of Hollow Containers
  • Test deformation of hollow containers and judge whether the deformation is within the qualified range at fixed time and pressure.
Specifications of the Box Compression Tester - i-Boxtek-1700
Item Descriptions
Load Cell Capacity 9 KN
Accuracy 1% Full Scale
Force Resolution 1 N
Deformation Resolution 0.1 mm
Specimen Height 100 mm ~ 600 mm
Test Speed 5 mm/min, 10 mm/min, 12.7 mm/min
Test Space 0.6 m (L) x 0.6 m (W) x 0.61 m (H)
Instrument Dimension 0.65 m (L) x 0.81 m (W) x 1.62 m (H)
Power Supply AC (85~264) V, (50~60) Hz
Net Weight 180 kg
