Cold Bend Testing Machine QualiBend II
Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series

The Cold Bend Testing Machine - QualiBend series are used for bending of metallic materials such as metal rods, planks and steel screw threads. The machines operate with a hydraulic loading system to adjust the distance of the cold-bending press roll to drive the rod in both directions making the cold bending press roll forward and back.

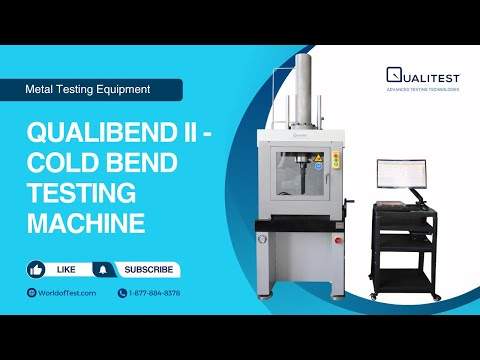

Cold Bend Testing Machine for Steel Bar/Steel Plate - ASTM A615 - QualiBend II

ASTM A615/615M, ASTM E290, ISO 7438, API 5L

Application

QualiBend II Series Cold Bend Testing Machine is specially designed to test bend-resistance performance of reinforced rolling steel bars, building steel reinforcements and steel plates which completely meet the requirement of ASTM A615/615M, ASTM E290, ISO 7438, API 5L and other international and national specifications.

Generally, the deformed and plain carbon steel bars for concrete reinforcement in cut lengths shall withstand being bent around a pin without cracking on the outside radius of the bent portion, this machine is capable to be customized for guided-bend (U bend) test on steel plates/welds.

Feature

  • User friendly operation height
  • Interchangeable mandrel (loading nose) and interchangeable roller (cylinder support)
  • Adjustable roller span (distance between cylinder support)
  • User specified loading speed
  • Operations automatically done by software on computer, real time recording the load force and bend deflection
  • Loading nose auto-return available

Software

  • User friendly interface
  • Programmable loading procedure
  • Test data recall, comparison and statistic are available

Test Procedure

  1. Install rollers (cylinder support) and mandrel (loading nose) on machine
  2. Adjust roller span
  3. Place specimen over rollers
  4. Program test procedure on software
  5. Start test on software
  6. Software recording real time load and bend deflection
  7. Mandrel (loading nose) return to original position automatically
  8. Test finish

Technical Specifications

Model

QualiBend II-200

QualiBend II-300

Load Capacity

200kN

300kN

Distance Between Rollers

640mm (Customizable)

Ram Stroke

300mm

Bending Angle

User Specified but within 180°

Rebar Diameter

Ф6mm ~ Ф40mm (others upon request)

Steel Plate Thickness

6-25mm (others upon request)

Roller Diameter

Ф20mm, Ф25mm (Customizable)

Mandrels (loading nose)

Upon request

Power Supply

3phase, 380 V ±10%, 2.2kW

Dimensions

890 × 860 × 1870mm

Weight

1300kg

Note

1.     Mandrels (loading nose) upon request.

2.     Customized power system is available

3.     40 Liters 46# or 68# anti-wear hydraulic oil should be prepared by user



Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series

ASTM A615 and also meeting North American and other International Standards

The Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series has two positions explicitly used for bending of metallic materials such as metal rods, planks and steel screw threads. The machine operates with a hydraulic loading system to adjust the distance of the Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series' press roll guided with a hand wheel to drive the screw rod in both directions making the Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series' press roll forward and back.

The Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series complies with ASTM A615 meeting North American and International standards (Bending Test Methods of Metal Materials)

The Cold Bend Testing Machine for Steel Reinforcement Bars, Rebars, ASTM A615 – QualiBend Series' functions are easy to operate, with solid structural design, safety and reliability.

Technical Specification

Capacity of main cylinder 160 kN 160 kN
Length of main cylinder 390 mm
Specimen Diameter (Coryneform specimen) Ø 6 ~ Ø 40 mm
Specimen Thicknesss/Height(Coryneform specimen) (6 ~ 40) x 50 mm
Max bending angle 180º
Diameter of standard configuration of bending press roll attached (mm) 20,28,32,36,40,48,60,75,84,100,112,128
The choice of different configurations for the bending roller diameter (apart from standard configuration) 2.75, 3.0, 3.25, 3.5, 3.75, 4.0, 4.25, 4.5, 4.75, 5.0, 5.25, 5.5, 5.75, 6, 8, 10, 12 , 14, 16, 18, 24, 28, 30, 32, 36, 40, 42, 48, 50, 54, 56, 60, 64, 66, 70, 72, 75, 80, 84, 88, 90, 98, 100, 110, 112, 120, 126, 128, 140, 154, 160, 168, 175, 192, etc.

41 configurations, users choose according to their need

Power 2.2 kW (380V, 50 Hz)
Dimensions 1450 x 680 x 1050
Weight 800 kg



For more information about Cold Bend Testing Machine, please call us at 1.877.884.8378 or Click the button below.
