An advanced dynamic system for determination of the flex properties of rubber, leather, etc. in air, temperature chamber or liquids
Dynamic tester for the determination of the resistance to cracking produced either by extension or bending in environmental chamber. This tester is intended for determine the resistance to flex cracking and crack growth under high temperature of vulcanized rubber
DeMattia Flexing Fatigue Tester

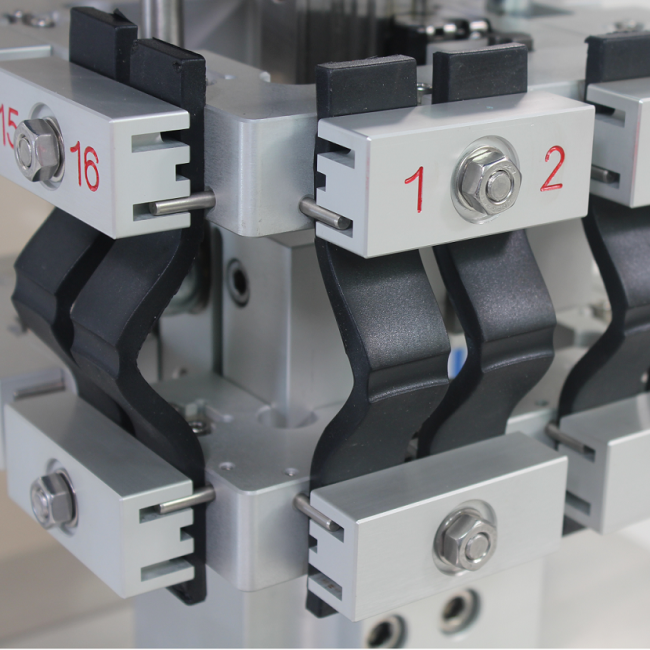

Specimens are subject to repeated flexing through a given distance for a specified period of time so that the flex cracking and crack growth can be known. The instrument has a solid aluminum and stainless steel structure that ensures long life time and ensures repeatable results. The special movement system with both sample holders moving in opposite direction ensures considerable reduction of vibration and noise in comparison with other testers. The oscillation speed can be adjusted from 60 to 300 cycles / min. The number of cycles can be defined by the user and the test automatically stops when the set number of cycles has been reached. The flexure stroke can be adjusted from 0 to 56 mm and the distance of the clamps can be adjusted.
Up to 16 test pieces can be mounted simultaneously. The system is with a temperature chamber, the sample holding system is located in a thermal chamber for the execution of flexure tests with temperature control.
Thermal chambers are for tests above room temperature and up to 250 °C. The door of the heat chamber is fitted with a safety switch.
Technical Specifications of DeMattia Flexing Fatigue Tester
|Standards:||ISO 132; ASTM D-430 "B"; ASTM D 813|
|Speed Adjustment:||From 60 up to 300 cycles/min.|
|Data Displayed:||Number of oscillations|
|Sample holder:||Up to 16 samples can be mounted at the same time|
|Test Specimen holder dimensions:||Ø 200 X 400 mm|
|Stroke:||Between 0 and 56 mm|
|Thermal chamber temperature:||From room temperature to 250°C with 1% accuracy|
|Temperature set:||Digital temperature set|
|Power Supply:||110V/60Hz or 220V/50Hz|
Basic / Economical DeMattia Flex Tester
The Basic / Economical DeMattia Flex Tester features variable speeds for testing fatigue, breakage or crack growth in rubber, plastics, leather, fibre optics and exotic composites. These models are designed with simplistic and durability in mind. The rigidity of the tester yields accurate results. This is a very economic solution for any laboratory. Our 3 station is equipped with adjustable grips to accommodate various sizes of samples.
- Production additives settings and adjustments
- Inspection of quality products
- In-process checks to ensure on-spec product for converting operations
- Quality-control reporting
- Widely used in the automotive , rubber and textile industry
|Technical Specifications for the Basic / Economical DeMattia Flex Tester series|
|Item||3 Specimen model||6 Specimen model||12 Specimen model|
|Capacity||3 samples can be tested simultaneously||6 samples can be tested simultaneously||12 samples can be tested simultaneously|
|Griping space||Adjustable from 1” (25.4mm) to 3” (75mm)||3” (75mm)|
|Power||available in both 115V / 60Hz and 220V / 50Hz|
