Face Mask Flame Retardant Tester

Face Mask Flame Retardant Tester

Test Application
Face Mask Testing
Medical Testing
Textile Testing
Testing Bundle Deal
Face Mask Bundle

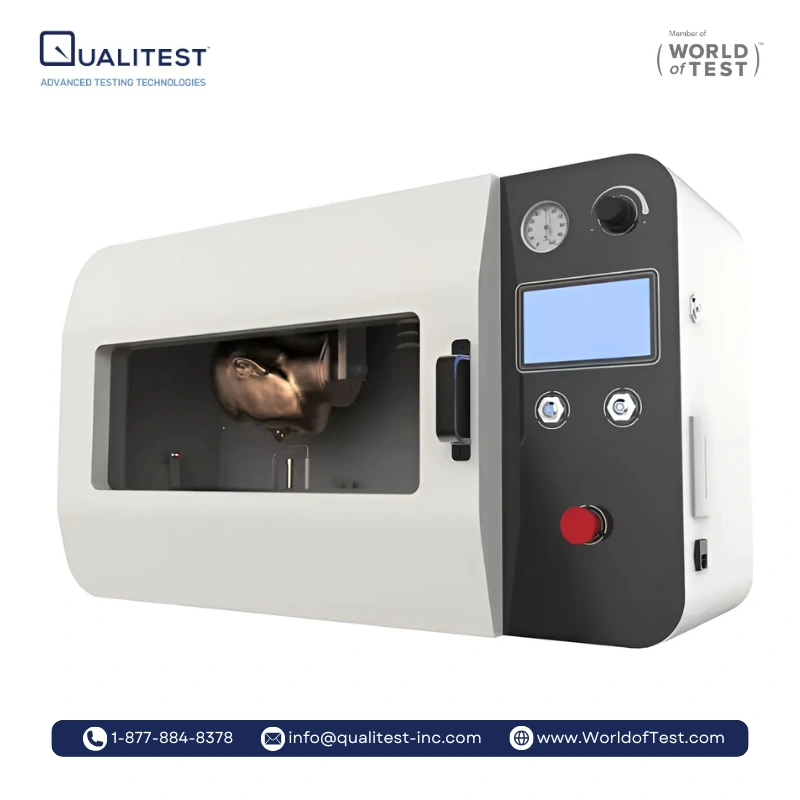

Face Mask Flame Retardant Tester is mainly used to test the combustion performance of a mask after it contacts the flame at a certain linear speed. It is a special test instrument for the flame retardancy of a mask.

Features/Advantages
  • PLC + touch screen control system; make the test more convenient, operation and visualization.
  • The mask fixture is a metal human head mold, which can fully simulate the actual use of the mask.
  • Burner height is adjustable, Burner positioning automatically.
  • Burning time and flame retardant time are automatically recorded and displayed digitally.
  • Equipped with flame temperature measuring probe and flame temperature display.
  • Automatic control system, automatic ignition.
  • The burner is equipped with a combustible gas interface such as propane (liquefied gas).
  • Automatic timing, automatic storage of test data, easy to retrieve experimental reports.
  • Equipped with flame temperature measurement and detection therm couple
Technical Specifications

Item

Technical Parameters

Head mold automatic movement linear speed

(60±5)mm/s

Flame height

40±4mm

Flame at height from top of burner

(20±2)mm

Flame at temperature from the top of the burner

(800±50)℃

Distance between the top of the burner and the lowest point of the mask

(20±2)mm

Burner height

≤30mm

Metal die wall thickness

2～3mm

After flame time and smolder time timer

0～9999.9s(±0.1s)
