Qualitest covers a complete and competitive range of Rub Testers which is applicable in abrasion resistance test of printing works, light sensitive layer of PS boards, and coating layers of relative products. It can help users to analyze the affairs of lower abrasion assistance, ink layer falling-off, lower printable of PS boards, and rigid of coating layers of other products.

Available Models

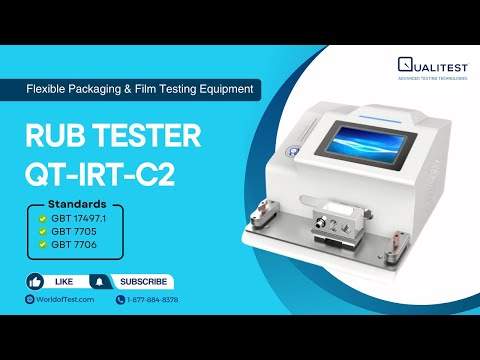

Ink Rub Tester - QT-IRT
Ink Rub Tester - QT-IRT

Ink Rub Tester - QT-iRT

Rub resistance describes the ability of printed material to withstand marking, scuffing or smudge during handling in conversion, packaging, transportation, distribution and use. QT-IRT simulates a similar environment to test the rub resistance on printed materials.

It is used to analyze the life of label by creating actual environment of application to evaluate abrasion resistance of surface coating layer of printed material.

It simulates the actual working environment of product and helps to identify the quality and printing method to be used for printing of label based on application of product and its working environment.

Applications

  • It measures the rub resistance bonding of ink with the printable surface
  • Label Printing: It test the abrasion resistance of ink layer of printed materials and effectively analyze the problem of poor abrasion resistance and ink layer falling off. Thus to identify printing method and property of ink to be used for printing of label based on application of product and its working environment.
  • Photosensitive Coating: It tests abrasion resistance of photosensitive board coating layers and effectively analyze the problem of lower printing force.
  • It can also be used to analyse the rub resistance of different materials and analyse the wearing properties of sample material under consideration.

Features

  • Equipped with high end micro-processor to control testing and create the required environment with frequency of rubbing with controlled load
  • Ensures even load distribution on rubbing area of sample
  • Quiet rubbing process

Working Principle

Rub resistance describes the ability of printed material to withstand marking, scuffing or smudging during handling in conversion, packaging, distribution and use. QT-IRT simulates a similar environment to test the rub resistance on printed materials.

Technical Specifications

Rub pressure

20 ± 0.2 N

Rub speed

43 times/min

Rub area

155 mm x 50 mm

Number of times of rub

0 - 999

Sample size

230 mm x 50 mm (can join short samples together)

Power

40 W

Instrument size

260 mm x 290 mm x 340 mm


Ink Rub Tester - QT-RT
Ink Rub Tester - QT-RT

Ink Rub Tester - QT-RT

ASTM D5264, TAPPI T830

QT-RT Ink Rub Tester is designed to evaluate the scuffing or rubbing resistance of printed or coated surface of paper, paperboard, film, laminates, substrates, etc.

Features:

  • PLC control and touching screen operation
  • 4 test modes of dry rub, wet rub, wet bleed & wet transfer, and wet smear
  • 4 different test speeds to meet different test requirements
  • Dual stations arc movement structure
  • Buzzer reminder after test is finished

Technical Specifications

ItemsSpecifications
Rub Pressure8.9 N (2lb); 17.8N (4lb)
Rub Speed21, 42, 85, 106 cpm
Number of Specimens1 ~ 2
PowerAC 220V, 50Hz
Instrument Dimension390 mm (L) x 480 mm (W) x 220 mm (H)



For more information about Ink Rub Tester, please call us at 1.877.884.8378 or Click the button below.
