Manhole Mechanical Properties Tester
Manhole Mechanical Properties Tester
Manhole Mechanical Properties Tester
Manhole Mechanical Properties Tester

ASTM D 2412-2002, BS EN 13598-1

Applications

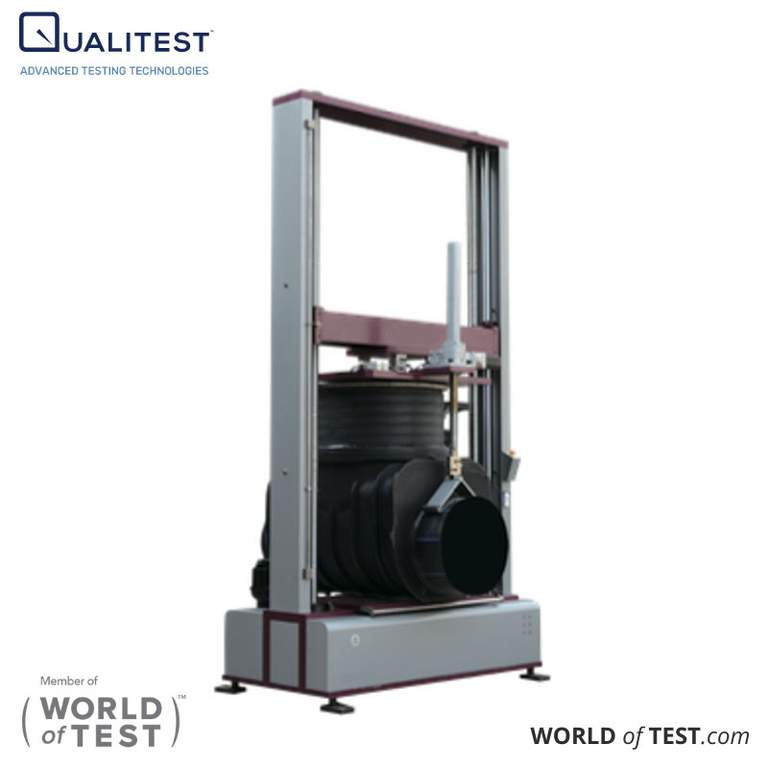

QT-MMP manhole mechanical property tester is designed to determine the performance of inspection chamber, manhole frame as well as manhole wall. It can be used to test shear strength and the axial loading performance of manhole base. It can also be used to test Ring stiffness, flatness and ring flexibility test.

BS EN 13598-1:2003 Plastics piping systems for non-pressure underground drainage and sewerage. Unplasticized poly (vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE). Specifications for ancillary fittings including shallow inspection chambers. It is the standard to test the mechanical performance or physical properties of pipework systems, Pipes, Drainpipes, Plastics, Unplasticized polyvinyl chloride, Polypropylene, Polyethylene, Underground, Water supply and waste systems that could be used in building, drainage, sewers and sewage engineering.

Features:

  • Gate-type structure with super high rigidity, test speed can be controlled in a large range, seamless ball bearing ensures high accuracy and stable performance
  • Digital AC servo system and piecewise linear correction method ensures the high accuracy and stability of system
  • Bridge structure of load sensors enhance the anti-bias for big pipes
  • Unique cable type inner diameter measuring system track the deformation of inner diameter. It is easy to install sample and carry out measurement
  • With protection functions of overload, over current, over face and over temperature, and multi protection methods have been set in mechanical & electrical part and software system
  • Module design satisfies customer’s requirement on extended function

Technical Specifications

Max. Test Force

30kN (dual-screw)

Load Accuracy

±1%

Load Resolution

1N

Crossbeam Resolution

±1%

Test Speed

0.5~200mm/min (stepless)

Speed Tolerance

±1%

Pipe diameter range for Ring Stiffness Test

ø200mm~ ø2000mm

Inner Diameter Measurement Range

ø300mm~ ø2000mm

Inner Diameter Measuring Accuracy

±0.5%

Compression Plate Dimension

450mmx400mm

Manhole Base Diameter Range

ø315mm~ ø1200mm

Width of Steel Belt

100mm

Safety Protection Grade

IP55

Dimension of Basic Frame

(excluding compression plate)

1360 × 650 × 3400mm (L × W × H)

Mass of Basic Frame

600kg

Dimension of Shear Test Device

1450 × 1450 × 2700mm (L × W × H)

Mass of Shear Test Device

300kg

Covering Area

2000 × 1500mm



For more information about Manhole Mechanical Properties Tester, please call us at 1.877.884.8378 or Click the button below.
