Optical Sorting Machine

Qualitest offers a line of optical sorting machine that can also be used to do automatic sorting. The optical sorting machine product line offers users flexibility over a wide range of parameters that can be measured as well as sorting machines that are designed specifically for certain objects such as screws, rivets or bolts. One sorting system from the optical sorting machine product line is designed to discriminate metallic objects based on hardness. Each optical sorting machine offers powerful technology to any production line.

Inspection parameters

  • Diameter, Hole diameter
  • Length
  • Width
  • Height, Thickness
  • Surface defect
  • Deformed, Broken
  • Different shape
  • Crack
  • Burrs, Chips
  • Across Corner
  • Across Flat
  • Chamfer angle
  • Included angle
  • Arc radius
  • Concentricity
  • Roundness
  • With coating
  • With mark
  • With cut/tapering
  • Parallel edge length
  • Broken pin, Recess depth
  • With thread
  • Fine or coarse thread
  • Thread numbers
  • Pitch
  • Slanted thread
  • Minor diameter
  • Major diameter
  • Hardness
  • Recognition of different materials
  • Heat treatment

Options to choose from:

  • 3 CCD Cameras
    • Optical Sorting Machine QSS-C07 for nuts, rivets, rollers, washers, studs and objects that can sit stably on a conveyor belt.
    • Optical Sorting Machine QSS-D07 for screws, bolts, bolts and nuts, bolts and washers.
  • 4 CCD Cameras
    • Optical Sorting Machine QSS-G07 for nuts, washers, spacers, rivets
  • Hardness
    • QSS-V08 Automatic Sorting Machine is used for sorting based on hardness, material composition, and whether or not the object has gone through heat treatment.

Available Models

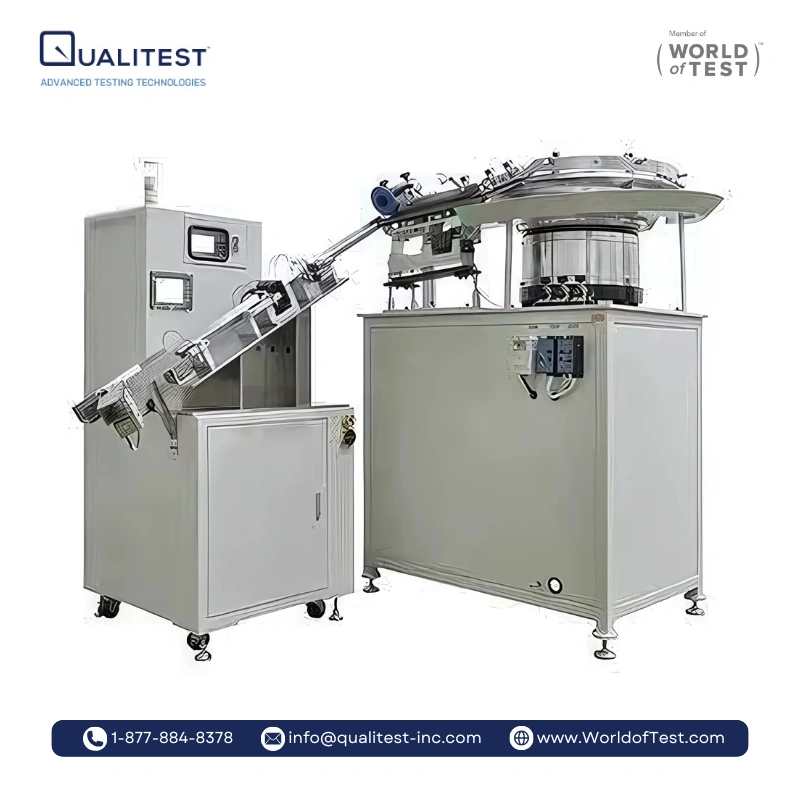

Optical Sorting Machine QSS-C07
Optical Sorting Machine QSS-C07

Optical Sorting Machine QSS-C07

This optical sorting machine measures all the standard parameters (see above). It is designed for nuts, rivets, rollers, washers, studs and objects that can sit stably on a conveyor belt.

Optical Sorting Machine SpecificationsQSS-C07
Measurement sizeMaximum Ø40 mm
Size Machine & Feeder)800x1850x1970 mm (LxWxH)
Net Weight650 kg
Shipping dimensions (Machine & Feeder & Wooden case)1450x2050x2200 mm (LxWxH)
Gross Weight (Machine & Feeder & Wooden case)850 kg
Number of CCD camera(s)3
Optical Sorting Machine QSS-D07
Optical Sorting Machine QSS-D07

Optical Sorting Machine QSS-D07

This optical sorting machine measures all the standard parameters (see above). It is designed for screws, bolts, bolts and nuts, bolts and washers.

SpecificationsQSS-D07
Measurement sizeMaximum Ø40 mm
Length 6-120 mm
Size (Machine & Feeder)880x1880x2070 mm (LxWxH)
Net Weight700 kg
Shipping dimensions (Machine & Feeder & Wooden case)1400x2300x2200 mm (LxWxH)
Gross Weight
(Machine & Feeder & Wooden case)
900 kg
Number of CCD camera(s)4



Optical Sorting Machine QSS-G07
Optical Sorting Machine QSS-G07

Optical Sorting Machine QSS-G07

This optical sorting machine measures all the standard parameters (listed above), designed for nuts, washers, spacers, rivets (can be adapted for similar objects).

SpecificationsQSS-G07
Measurement sizeMaximum Ø40 mm
Size (Machine & Feeder)1640x1690x2070 mm (LxWxH)
Net Weight700 kg
Shipping dimensions (Machine & Feeder & Wooden case)1450x2300x2300 mm (LxWxH)
Gross Weight (Machine & Feeder & Wooden case)900 kg
Number of CCD camera(s)4



Automatic Sorting Machine QSS-V08
Automatic Sorting Machine QSS-V08

Automatic Sorting Machine QSS-V08

QSS-V08 Automatic Sorting Machine is used for sorting based on hardness, material composition, and whether or not the object has gone through heat treatment.

Specifications

QSS-V08

Speed (for screws)

Maximum 180 pcs/min (depending on the product size and length)

Inspection Items

1. Recognition of hardness difference, accuracy 2 HRC.

2. Recognition of different metal material mixed.

3. Same size with similar material parts mixed.

4. With/without high frequency hard difference.



For more information about Optical Sorting Machines, please call us at 1.877.884.8378 or Click the button below.
