Pipe Wall Thickness Tester
Pipe Wall Thickness Tester
Pipe Wall Thickness Tester

ISO3126:2005

Applications

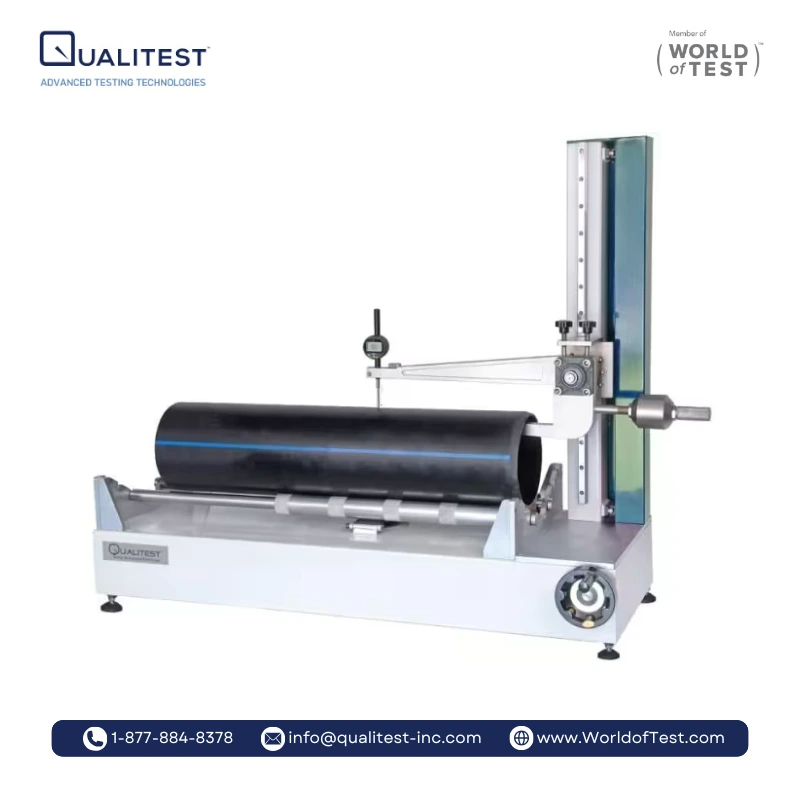

QT-WTM Pipe Wall Thickness Tester is used to determine wall thickness for pipes (PE, PB, PEX-Al-PEX, etc.) at the maximum axial depth of 400mm. Pipe Wall Thickness Tester is widely used in pipe manufacturing, water supply and drainage projects or Industrial field.

ISO3126:2005 Plastics piping systems -- Plastics components -- Determination of dimensions. It specifies methods for measurement and/or determination of the dimensions of plastics pipes and fittings and the accuracy of the measurement. It specifies procedures for measuring angles, diameters, lengths, squareness and wall thicknesses for the purposes of checking conformity to geometric limits.Features

1. High accuracy

High precision micro gauge was introduced to collect test data, Locking device ensures gauge beam and sample touching perfectly, that test result more accurate.

2. Easy to operate

Hand wheel and high-precision guide channel control . In order to work for samples with different sizes, the height of test arm can be adjusted freely. Also the sample is located on sliding rail , that the test range in axial direction can be adjusted.

3. Scientific structure

Equipped with dial gauge lifting system,it can be used to protect dial gauge from the sample when they were contacted.

4. Specialize Software

Friendly operation interface, system can record wall thickness and describe it in a test curve, also Max. wall thickness , min. wall thickness & average wall thickness can be acquired and be saved automatically.

Technical Specifications

Model

QT-WTM

Sample Diameter Range

Ф 40 to Ф 630mm

Pipe Thickness

0 to 50mm

Test Range in Axial Direction

0 to 400mm

Gross Weight

400kg

Dimensions

3600 × 600 × 1300mm



For more information about Pipe Wall Thickness Tester, please call us at 1.877.884.8378 or Click the button below.
