Ross Flex Tester - Ross Flexing Tester

Ross Flex Tester - Ross Flexing Tester

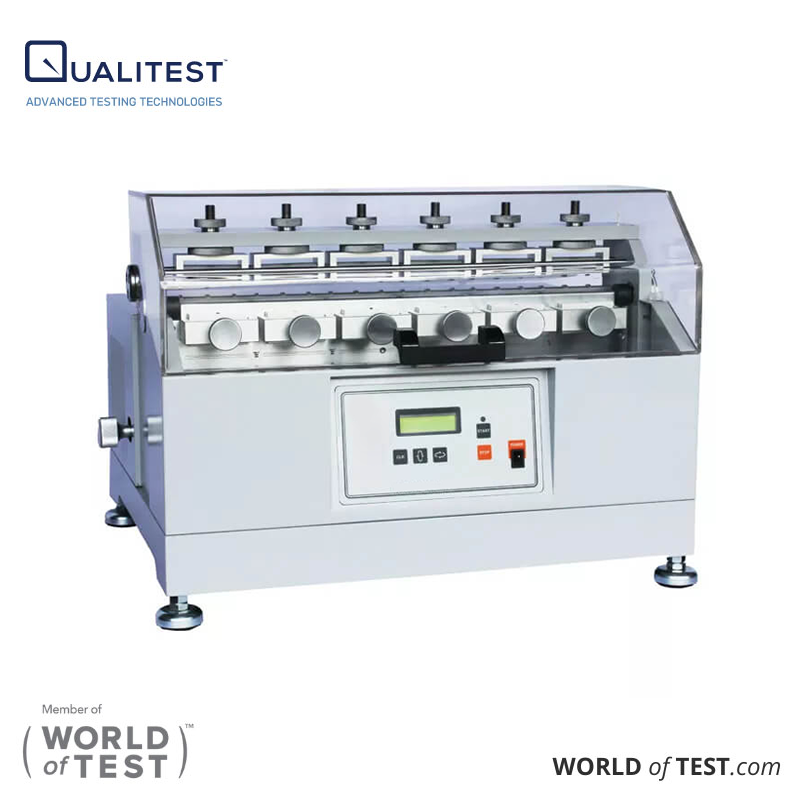

The Ross Flex Tester - Ross Flexing Tester is designed to determine "resistance of vulcanized or synthetic elastomers to cut growth. It conforms to ASTM Method D1052. The rubber will form cracks when subjected to repeated flex or bending under specified conditions and known periods. The tester model QT-RF100 can test six pairs of samples simultaneously (twelve total). The frequency of the flexures is 100 cycles per minute. A six-digit counter tallies actual flexures. Power supplied can be configured upon request.

Technical Specifications for the Ross Flex Tester - Ross Flexing Tester
Item Description

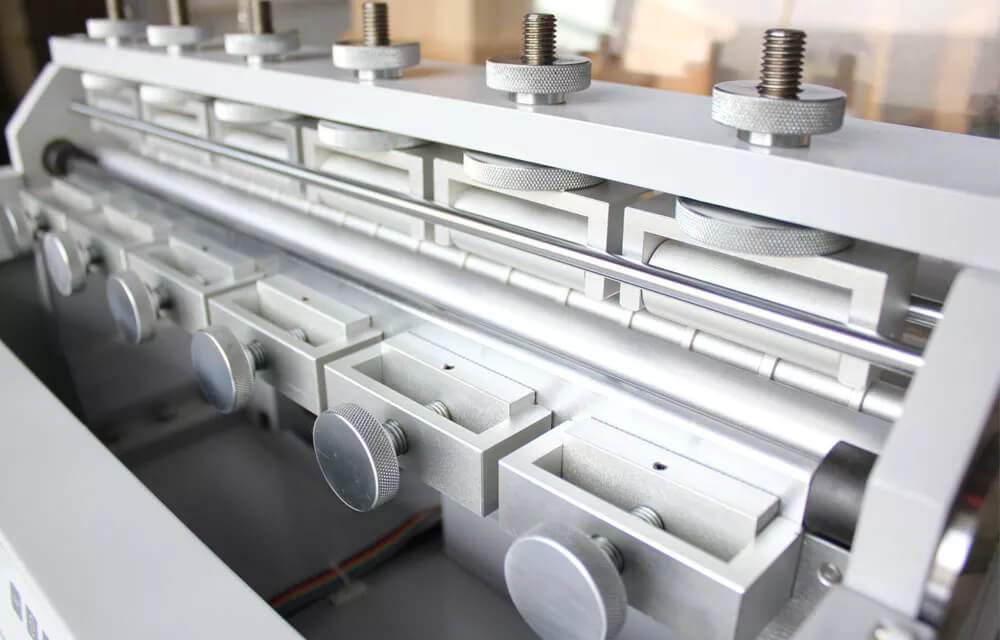

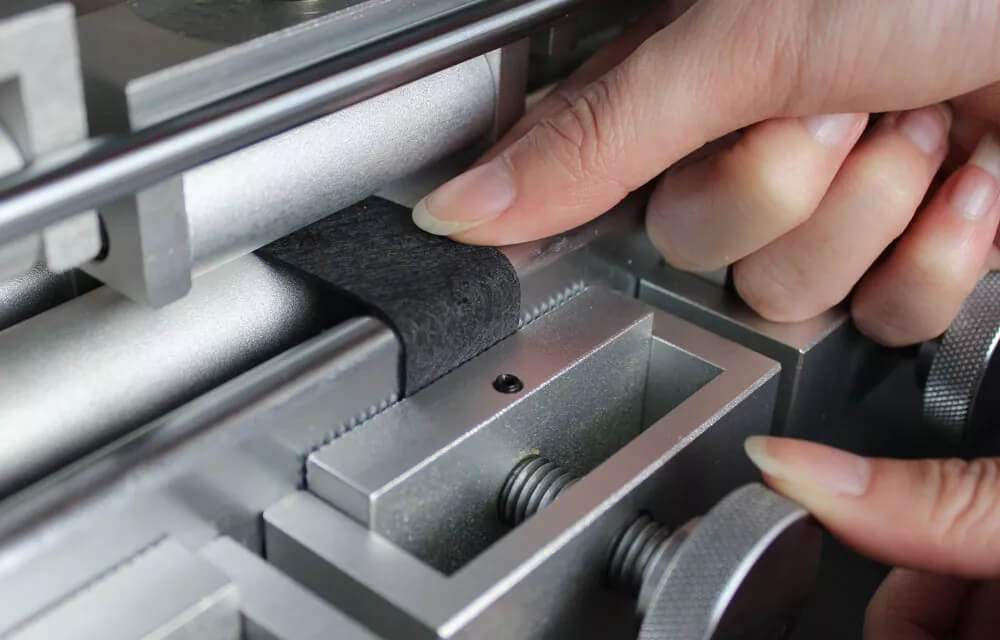

Grips 6 sets , it can test 12 pieces
Counter LCD, 0~99,999,999
Speed 100±5 cpm
Flexing Angle 90±2°
Dimension (W×D×H) 62 × 54× 45 cm (24.4” x 21.3” x 17.8”)
Weight 60 kg
Power 1 Phase,AC 220V, 50Hz,3A



For more information about Ross Flexing Tester, please call us at 1.877.884.8378 or Click the button below.
