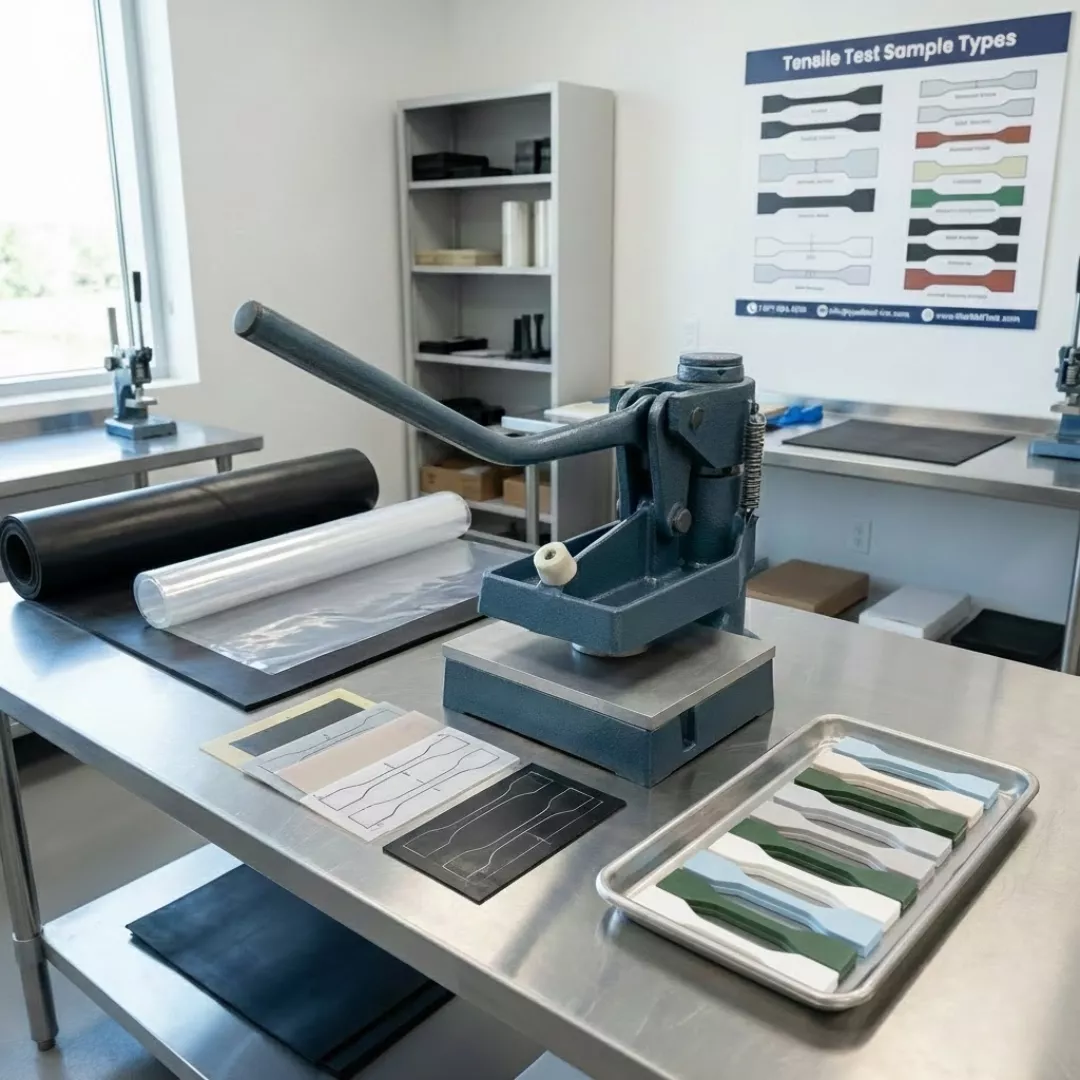

Sample Specimen Preparation Equipment

Qualitest introduces our new advance Sample Specimen Preparation machines known as SpeciCut & SpeciLathe

A test specimen is the most important component of tensile testing for it determines the actual physical properties of the material being tested. The specimen must conform to exact physical dimensions and must be free of induced cold working or heat distortion. Qualified laboratory personnel and accurately calibrated tensile machines are important, but the ultimate test results are based on the quality and accuracy of the test specimen.

A highly skilled machinist, a precision milling machine and considerable hand finishing can achieve the required configurations of the test specimen. However, the slow milling cutter speeds create heavy chip loads and can induce severe internal distortion to the machined edges. The amount of induced cold working or heat distortion cannot be determined by visual or heat distortion cannot be determined by visual inspection, hence test results often produce erratic and inaccurate tensile properties.

Specimens of light gauge sheet must be blanked, sheared or die cut to the required tensile configuration. The basic principle of shearing causes severe deformation and distortion to the critical specimen edges and creates even greater variations and errors in the physical properties.

The ideal tensile specimen should duplicate the pure basic metal or plastic being tested with a total absence of tool marks, incipent cracks, induced stresses, internal deformation or heat distortion. Our range of SpeciCut & SpeciLathe machines achieve these ideal requirements and produce an almost perfect test specimen.

For more information about Sample Specimen Preparation Equipment, please call us at 1.877.884.8378 or Click the button below.

Available Products

Sample Preparation Machine - SpeciCut II-P - Hard Plastic Tensile Specimen Cutting Machine

The Sample Preparation Machine - SpeciCut II-P is a manually operated, economical way to prepare tensile bars and other samples.

CNC Sample Preparation Machine - SpeciCut III

The SpeciCut III CNC sample preparation machine is cost effective in motion control application of up to 3 axes. The motion control is based on numerical control Technology.

CNC Sample Preparation Machine - SpeciCut IV - Flat Samples

The CNC Sample Preparation Machine - SpeciCut IV - Flat Samples is a PC controlled system capable of controlling all 4 axes. The motion control is based on numerical control Technology.

Mini NC Lathe - SpeciLathe I - Round or bar type samples

The Mini NC Lathe - SpeciLathe I is a Compact NC Lathe for various metals and non metals. The motion control is based on numerical control Technology, which is programmable for a range of specimens.

Mini NC Lathe - SpeciLathe II

The Mini NC Lathe - SpeciLathe II is used for Sample preparation from various metals and non metals. The motion control is based on numerical control Technology, which is programmable for a range of specimens.

Metallic Tensile Specimens- O-Frame Presses

Specimen Blanking Presses in C-Frame & O-Frame Designs for punching metallic specimens out of sheet metals with thickness up to 8mm. Also a High precision Specimen Grinding System is available.

MHM500 - Hydraulic Molding Test Press - Hydraulic Control

Proper sample preparation will achieve accurate and consistent results. Most variation in testing occurs before the test is performed as sample preparation plays a major role in final results.

Sample Preparation Press for Powder Metallurgy

Proper sample preparation will achieve accurate and consistent results. Most variation in testing occurs before the test is performed as sample preparation plays a major role in final results.

Punching Press SP 4000 II

Punching Press SP 4000 II serves for the production of samples, made from elastomers according to the Standards mentioned.
