Specimen Sample Cutting Dies – Cutters - Molds

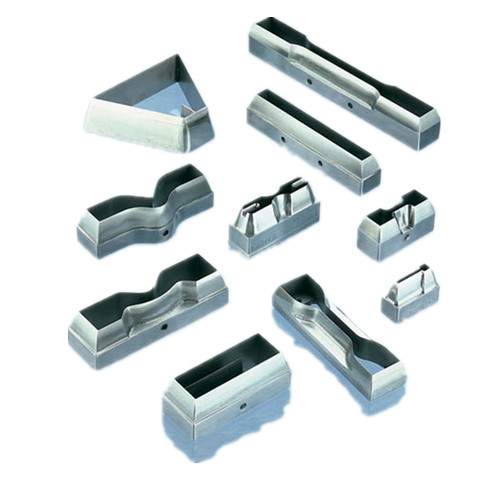

Specimen Cutting Dies – Cutters

Fully Certified Sample Preparation and Specimen Cutting Dies as per ASTM, JIS, DIN, ISO standards, usually carried in stock

High quality range of specimen cutting dies and sample cutter are made exactly according to the specific ASTM, DIN, ISO, or JIS standards and are highly accurate for perfect preparation of your test specimens. All of these specimen cutting dies come in a padded carrying case and are supplied with full certification. Qualitest also offers re-sharpening service for these specimen dies and maintain highest quality of production and standards.

Each of our cutters comes with a fully detailed "Inspection Report" and a "Certificate of Compliance" to NIST/SCC and the ISO Guide #25.

ASTM Standard Cutting Dies
ASTM D-412 A Tensile Sample Cutting DieBuy Now
ASTM D-412 B Tensile Sample Cutting DieBuy Now
ASTM D-412 C Tensile Sample Cutting DieBuy Now
ASTM D-412 D Tensile Sample Cutting DieBuy Now
ASTM D-412 F Tensile Sample Cutting DieBuy Now
ASTM D-638 Type I Tensile DieBuy Now
ASTM D-638 Type II Tensile DieBuy Now
ASTM D-638 Type III Tensile DieBuy Now
ASTM D-638 Type IV Tensile DieBuy Now
ASTM D-638 Type V Tensile DieBuy Now
ASTM D-1822-SBuy Now
ASTM D-1708 Microtensile DieBuy Now
ASTM D-624 B Tear Sample Cutting DieBuy Now
ASTM D-624 B Tear Sample Cutting Die with SlitBuy Now
ASTM D-624 C Tear Sample Cutting DieBuy Now
ASTM D-624 T Tear Sample Cutting DieBuy Now
ASTM D-1004Buy Now
ASTM D-1922Buy Now
ASTM D-746Buy Now
ASTM D-746 T50Buy Now
ASTM D-1938Buy Now
JIS Standard Cutting Dies
JIS K-6301 1Buy Now
JIS K-6301 2Buy Now
JIS K-6301 3Buy Now
JIS K-6301 4Buy Now
JIS K-6301 ABuy Now
JIS K-6301 BBuy Now
DIN Standard Cutting Dies
DIN 53504 S1Buy Now
DIN 53504 S2Buy Now
DIN 53504 S3Buy Now
DIN 53504 S3ABuy Now
Mallet Handles & Backplate
Rubber Filled
Naef adaptor



Our molds are made of P20 tool steel that is hardened, ground and polished, then chrome-plated with the option of teflon coating. Typical molds have one to four cavities. Various sizes are available. Dies are EDM wire cut from solid tool steel.

The mold's inside surface is perpendicular to the cutting edge and polished. This insures that test specimens are cut to uniform thickness. Dies are designed to be resharpened. Both molds and dies meet most national and international standards such as ASTM, DIN and ISO.

Tensile test, tear test and other dies can be supplied with mallet handle for fast, easy hand stamping of test specimens using a maul, of for use in clicker presses.

ASTM D-412 popular sizes C and D are standard, with A, B. E, and F also available upon request. Rotary type cutters are designed for use in standard drill press chucks. Cutters can be supplied to standard dimensions as indicated by ASTM D-412. Other dies, in other dimensions and for different standards, also available. Tear Test Dies, possess the same physical features as the Tensile Test Die, including the mallet handle/ clicker press option.

ASTM standardMolds
D-15 & D-3182Mold for 6" x 6" x .075" rubber test specimens
 Single Cavity
 With hinges & handles
 Double cavity with hinges & handles
 Four cavity with hinges & handles
D-395Compression Set Test Molds
 Four Cavity
 Nine Cavity
 Sixteen Cavity
 Method A Constant Load Test Device
 Method B Constant Deflection Test Fixture
 Additional Twelve Spacers
D-429Adhesion Test Specimen Molds
 Method A Parallel Plate - Four Cavity
 Method B 90 degree stripping (Lord Adhesion)
D-638Tensile Specimen Molds
 2 Cavity
 6 Cavity
 12 Cavity
D-3123Spiral & Transfer Molds
 Spiral Flow Mold for Plastics
 "X" type rubber flow molds-transfer type for compound evaluation
D-2138Cord Test Sample Molds
 Eight Cavity, four test samples
 Sixteen Cavity, eight test samples
D-1630Abrasion Resistance
 6 Cavity
D-256Izod Impact Test Mold - 2.5 x 0.5 x 0.125 inch - 1 Cavity, Chrome Plated
 Charpy Impact Test Mold - 5 x 0.5 x 0.125 inch - 1 Cavity, Chrome Plated
 Optional Handles
 For Notcher Click Here


For more information about Specimen Dies / Molds, please call us at 1.877.884.8378 or Click the button below.
