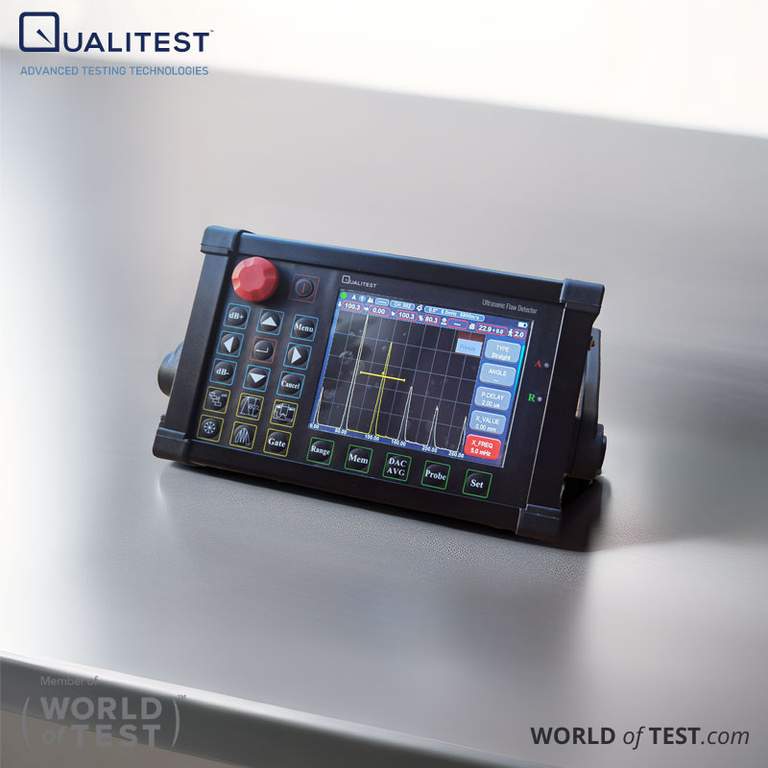

The Ultrasonic Flaw Detector - QFD 200 is a redesigned version of Qualitest’s well known SUD 10 Ultrasonic Flaw Detector. The Ultrasonic Flaw Detector - QFD 200 has all the familiar features of the SUD 10 flaw detector and is offered with an improved LCD screen, modern (USB) computer connection, compact design and more economical price package.
Technical Data of the Ultrasonic Flaw Detector - QFD 200 | |
---|---|
Scanning range (mm) | Scanning range (mm):2.5~10000 Steps: 2.5, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000 and 10000. Step:0.1mm (2.5 mm~99.9mm),1mm (100mm~10000mm) |
Display delay (ms) | D-delay (ms):-20~+3400 Stage: -20, -10, 0.0, 10, 20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500, 2000, 2500, 3000, 3400. Step: 0.1 (-20ms~999.9ms), 1 (1000ms~3400ms) |
Probe delay (µs) | P-delay: 0.0~99.99 Step: 0.01 |
Sound velocity in material (m/s) | Sound velocity in material: 1000~9999 7 fixed sound velocities: 2260, 2730, 3080, 3230, 4700, 5900, 6300 Step: 1 |
Working method | Single probe (P/R), double probes (transceiver), transmission (transmission probe) |
Frequency ranges (MHz) | Low frequency 0.2~1, middle frequency 0.5-4, high frequency 2-20, three steps optional |
Gain (dB) | 0~110 Step: 0.0, 0.2, 0.5, 1, 2, 6, 12 |
Linear suppression | 0%-80% of screen height, step: 1% |
Vertical linear error | Less than 3% |
Level linear error | Less than 1% within scanning range |
Detection sensitivity margin | ≥60dB |
Dynamic scope | ≥32dB |
Alarm | Traveling-wave alarm, evanescent wave alarm |
Monitoring gate | 2 gates, represents with horizontal thick line with adjustable start point, width and height. Start point (mm): horizontal pixel 0~208, with display value relating to scanning range. Step: mm quantity corresponding to one pixel (relating to scanning range) Width (mm): horizontal pixel 4~212, with display value relating to scanning range. Step: mm quantity corresponding to one pixel (relating to scanning range) Height: vertical scale 2%~90% Step: 1% |
Display | LCD Display |
A-Scan display | Full screen or part A-Scan display of freezing and defreezing A-Scan filling |
Wave display | All wave |
Detecting channel | 10 |
Data storage | 300 A-Scan images (30 for each channel) 30000 thickness values (300 groups) |
Communication port with PC | USB |
Unit | mm/inch |
Power adaptor | Input 100 Hz -240 Hz~50 Hz /60Hz Output 9V~12VDC/3A~4A |
Battery | Li battery 4×3.6V 4000mAh |
Ambient temperature (°C) | 0~40 |
Ambient humidity | (RH) 20%~90% |
Technical Specifications of Ultrasonic Flaw Detector - SUD10 | |
---|---|
Scanning range (mm) | Scanning range (mm):2.5~10000 Steps: 2.5, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000 and 10000. Step:0.1mm (2.5 mm~99.9mm),1mm (100mm~10000mm) |
Display delay (µs) | D-delay (ms):-20~+3400 Stage: -20, -10, 0.0, 10, 20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500, 2000, 2500, 3000, 3400. Step: 0.1 (-20ms~999.9ms), 1 (1000ms~3400ms) |
Probe delay (ms) | P-delayt: 0.0~99.99 Step: 0.01 |
Sound velocity in material (m/s) | Sound velocity in material: 1000~9999 7 fixed sound velocities: 2260, 2730, 3080, 3230, 4700, 5900, 6300 Step: 1 |
Working method | Single probe (P/R), double probes (transceiver), transmission (transmission probe) |
Frequency ranges (MHz) | Low frequency 0.2-1, middle frequency 0.5-4, high frequency 2-20, three steps optional |
Gain (dB) | 0~110 Step: 0.0, 0.2, 0.5, 1, 2, 6, 12 |
Linear suppression | 0%~80% of screen height, step: 1% |
Vertical linear error | Less than 3% |
Level linear error | Less than 1% within scanning range |
Detection sensitivity margin | ≥60dB |
Dynamic scope | ≥32dB |
Alarm | Traveling-wave alarm, evanescent wave alarm |
Monitoring gate | 2 gates, represents with horizontal thick line with adjustable start point, width and height. Start point(mm): horizontal pixel 0~208, with display value relating to scanning range. Step: mm quantity corresponding to one pixel (relating to scanning range) Width(mm): horizontal pixel 4~212, with display value relating to scanning range. Step: mm quantity corresponding to one pixel (relating to scanning range) Height: vertical scale 2%~90% Step: 1% |
Display | Display: EL highlight dot matrix 4 background color available |
A-Scan display | Full screen or part A-Scan display of freezing and defreezing A-Scan filling |
Wave display | All wave |
Detecting channel | 10 |
Data storage | 300 A-Scan images (30 for each channel) 30000 thickness values (300 groups) |
Communication port with PC | RS232 |
Unit | mm/inch |
Power adaptor | Input 100 Hz -240 Hz~50 Hz /60Hz Output 9V~12VDC/3A~4A |
Battery | Li battery 4x3.6V 4000mAh |
Ambient temperature (°C) | 0~40 |
Ambient humidity (RH) | 20%~90% |
Interface | BNC |
Outline (mm) | 240x173x50 |
Weight (kg) | 2.2 |
The Advanced Flaw Detectors - DFX series ultrasonic flaw detectors are full featured digital scopes designed to handle the simplest to the most difficult applications. Whether the application requires high penetration for materials that are difficult to measure, or high resolution for precision aerospace parts, the Advanced Flaw Detectors - DFX series flaw detectors are equipped with the necessary features to do the job.
Advanced Flaw Detectors - DFX series can go where you go, to do the work you do, saving you time and money, making your inspections fast and accurate.
Battery: Lithium Ion battery pack 14.4V, 5.0 Amp hrs. Minimum 11 hours use, typical 15 hours, indication of battery charge. Recharge time 4 hours.
Charger: 100 - 240 VAC, 50 - 60Hz.
USB: For connection to PC, keyboard and printer.
Outputs: Serial Interface, composite video (NTSC & PAL), analog output for amplitude and distance updated at PRF rate. Transmitter sync output.
Transducer Connectors: available with BNC or LEMO 1 connectors (factory option).
Interface trigger: Interface gate locks to surface echo and eliminates water path variation.
High Power Pulser: 450 volt boost.
Technical Specifications: |
|
Physical Size: Weight: Case: Extruded Aluminum. Display: Transflective TFT Color. Display area: 4.39” x 3.29” (111.4 x 83.5mm) 320 x 240 pixels. A-Scan area: 255 x 200 pixels (315 x 200 expanded), 8 color options and variable brightness. Temperature: Environmental: Specifications Units: English (inch), Probe Zero: 0–999.999 µs. Velocity: 615 & 625 0.0393 to 0.3937 in/µs (1000–9999m/s). 635 & 638 0.0100 in/µs (256 to 16000 m/s. Test Range: 615 & 625 0 - 0.2in (5mm) up to 0 - 400in (10,000mm) at steel velocity. Variable in sequence, 0.4in or 0.04in (10mm or 1mm). 635 & 638 0 - 0.05in (1mm) up to 0 - 800in (20,000mm) at steel velocity. Variable in 1, 2, 5 sequence or continuously in 0.05in (1mm) increments. Also from 1 to 5000(µs). Test Modes: Pulse-echo and transmit/receive. Gates: 615 & 625 Start & Width adjustable over full range. Amplitude 0 -100%, 0.5% steps. Visual & audible alarms. Single gate positive trigger, and two gates positive and negative triggering. Gate 2 has selectable 0.6 second delay on alarm. 635 & 638 Two fully independent gates with positive and negative triggering for each gate. Gate Expansion: Gate Monitor Delay: Measurement Modes: Signal Monitor - 635 & 638. Echo-Echo distance, automatic gate 2 position. Gate to Gate - |
Trig - Trigonometric display of beam path, depth and surface distance. Calculation of skip depth and curve surface compensation, X-offset for transducer. T-Min - Holds minimum thickness in depth mode. System Linearity: Vertical = 1% Full Screen Height (FSH) Amplifier Accuracy ±0.1%dB. Horizontal ±0.4% Full Screen Width (FSW). Pulser Voltage: 615 & 625 200 volt peak amplitude, rise/fall time < 10ns into 50ohm. 635 & 638 100V - 350V (450V 638 ) square wave pulser. Pulse width from spike to 2000ns duration - rise/fall times < 5ns into 50 ohms. Pulser Width: 615 fixed at 100ns. 625 30-250ns linked to filter band. 635 & 638 Adjustable in 2% of nominal width, minimum 1ns maximum 40ns. Active Edge: Unique active pulse control for enhanced near surface resolution and signal response. Replaces traditional damping control. P.R.F.: 615 & 625 Selectable 35 to 1000Hz (635 & 638 5000Hz), 5Hz steps. Screen Update Rate: Rectification: Full wave, positive or negative half wave and unrectified RF. Delay: 615 & 625 0 - 400 in (10,000mm) Gain: 0 to 110dB. Frequency Bands: 615 4Broadband 1 - 10 MHz (-6dB). 625 4 Narrow Bands centered at 1MHz, 2MHz, 5MHz, & broadband 1.5–15MHz. 635 & 638 6 narrow bands centered at 0.5, 1, 2.25, 5, 10 & 15 MHz. Broad band at 2 to 22 MHz (-6dB) and 1 to 35 MHz (-20dB). Vertical Linearity: Amplifier Linearity: Horizontal Linearity: Reject: 615 & 625 50% suppressive reject. LED warning when selected. 635 & 638 80% linear reject. Memory Thickness Logging: Storage for 8000 readings stored in Block/Location/Number coding or alpha-numeric pre-programmed work sheets. Transferable to Excel using optional PC software. Panel Memory: A-Scan Memory: |
