Two-Zone Thermal Shock Test Chambers: Theory and Methods
For vital hardware components going into aerospace engines, automotive electrical setups, and life-saving medical instruments, sudden thermal expansion and massive contraction can trigger catastrophic operational failures.
Corporate quality assurance divisions hold zero tolerance for hidden structural weaknesses, which is exactly why our high-performance QualiTSC-2Z Series Thermal Shock Test Chambers subject testing samples to severe, instantaneous climate shifts between deep freezing environments and scorching hot atmospheric conditions.
Principles of Thermal Shock
Thermomechanical Stress
When factory operators move an electrical component from a high-heat compartment directly into an ice-cold enclosure, the outer shell shrinks noticeably faster than the inner core.
This steep temperature differential produces intense physical tension that can shatter hardened metal, fracture dense plastic, or sever delicate micro-circuits in a matter of seconds.
Standards Compliance
Factory testing parameters are absolutely never pulled out of thin air. To guarantee strict global compliance, manufacturing teams stringently follow established industry protocols such as IEC 60068-2-14 Na, ISO 16750, SAE J1211, and aerospace-specific RTCA DO-160 directives.
These standardized procedural guidelines lock down exact climate extremes, mandatory sitting periods, and highly specific shift speeds to keep laboratory evaluations totally consistent and flawlessly repeatable.
Fracture Analysis
By pairing extreme climate transitions with heavy physical weight, structural engineering teams can identify the exact moment materials flip from bendable and highly resilient to shockingly brittle and completely useless.
Two-Zone Chamber Architecture
Our Two-zone Thermal Shock Test Chambers manage these incredibly fast shifts by keeping two completely separate, strictly regulated temperature zones ready to deliver immediate climate shock treatments.
Across the entire product lineup, which ranges from the compact 50-liter QualiTSC-2Z-50 to the massive 500-liter QualiTSC-2Z-500, each machine utilizes optimized internal airflow setups to guarantee incredibly consistent heat distribution.
| Chamber Configuration | Key Architecture | Primary Application |
|---|
| Two-Zone System (QualiTSC-2Z lineup) | Segregated high-heat and deep-freeze sections, equipped with a lightning-fast elevator carrier or instantaneous air shutters. | Shifts physical specimens back and forth between brutal extremes, grabbing target temperatures back in fewer than fifteen minutes. |
| Standardized Testing Rigs | Sealed testing enclosures packed with built-in air circulation fans, electrical heating coils, and highly exact digital regulators. | Stirs the internal atmosphere around to guarantee flawlessly even heat coverage from corner to corner. |
In a standard factory configuration, the top-level section stays super-heated to burning temperatures while the bottom-level section stays deeply chilled. Once the programmed sequence kicks off, the machine either fires the sample basket up and down on a motorized track or flings open heavy-duty air shutters to dump the chosen thermal energy directly onto the target object.
To keep monthly operating bills surprisingly low, these high-end configurations run on Variable Refrigerant Flow (VRF) technology coupled with highly precise PID-controlled cold-end outputs, dropping electrical energy consumption by an impressive thirty percent.
Operating Methods and Control
Putting these high-capacity testing machines to work requires a highly methodical approach covering software programming, physical execution, and continuous data checking:
1. Profile Programming
Operating through highly responsive touchscreen interfaces like the TEMI 1500 controller or sophisticated Siemens-backed systems, floor operators punch in high and low heat targets, dial in the necessary soaking periods for each stage, and assign the total count of back-and-forth loops.
2. Thermal Transition and Recovery

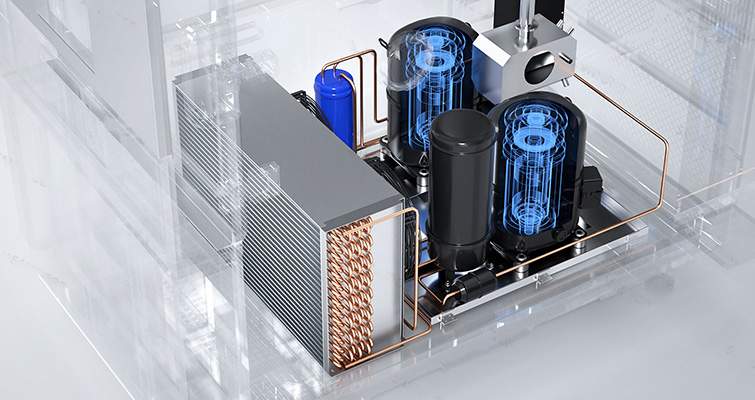

The mechanical setup relocates the test piece or instantly redirects the rushing air. High-efficiency refrigeration parts, including quick-opening EPV solenoid valves, newly integrated Danfoss AKV electronic expansion valves, and automatic hot-gas defrosting networks, guarantee the chamber captures its target heat level in fewer than 15 minutes, perfectly satisfying rigid evaluation rules like IEC 60068-2-14 Na and IEC 61747-5.
3. System Monitoring
Extremely sensitive internal probes watch over the testing space to guarantee flawlessly even climate coverage. Meanwhile, built-in EZNET connectivity technology lets operators monitor live machine statuses via smartphones or remote PCs.
The closed-loop PID controllers continuously tweak the electrical heaters and freezing valves to block unwanted temperature spikes, ensuring all laboratory results stay exceptionally reliable and totally dependable.
