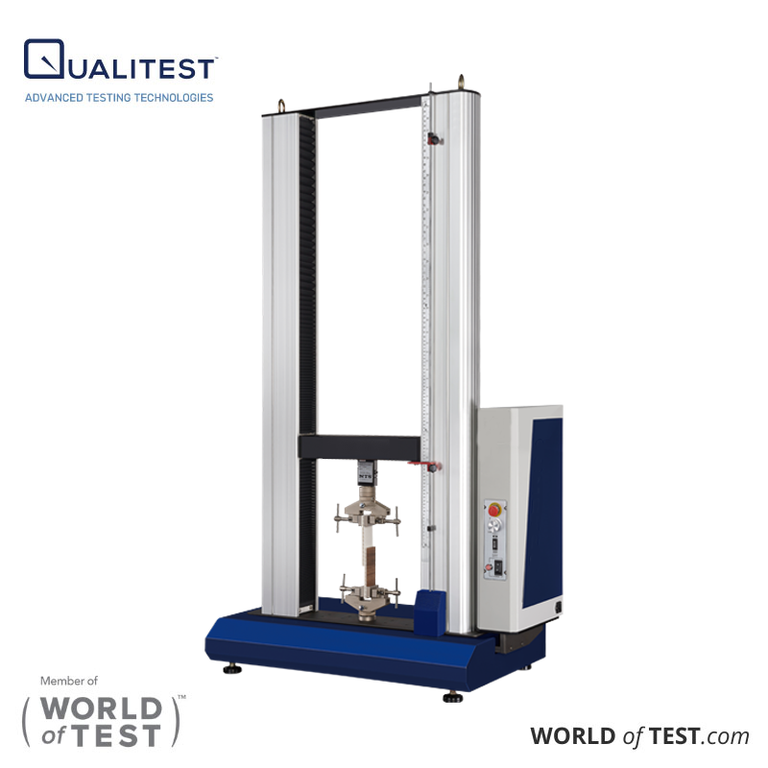

20kN Universal Testing Machine – Tensile / Compression Tester QM-20-M2F-L with Extended Height
The 20kN Universal Testing Machine – Tensile / Compression Tester QM-20-M2F-L with Extended Height features a spacious test area and a generous stroke length. Various widths are available to accommodate large specimens. With a maximum test capacity of 20 kN, it delivers precise results with minimal noise, thanks to its maintenance-free servo drive system. The machine features a transmission mechanism that requires no maintenance, ensuring smooth operation while creating a quiet testing environment.
Equipped with advanced M2F controller system, this universal tensile testing machine offers versatility in testing modes, including creep, constant compression, cycle, and multi-step tests. It can handle a range of tests such as tensile, compression, bending, peeling, and compression. Manual jog functionality allows for precise positioning, enhancing calibration accuracy. High-speed signal feedback reduces the risk of overload, while the ability to connect external signals expands control options for the machine.
Industry
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Packaging, Medical, Construction
Application
- ASTM D790, ISO 178 Bending test
- ASTM D882 Film Tensile Test
- ASTM D638 Plastic Tensile Test
- ASTM D412 Rubber Tensile Test
- ASTM D1000 ASTM D3330 Tape Peeling Test
- ASTM D575 Compression Platen With Displacement Sensor
- ASTM D1894 Coefficient of Friction Test
- ASTM F1306 Plastic Film Puncture Test
- ASTM F1269-13 | IPC TM-650 | MIL-STD-883E | AEC-Q200-006A Die Shear Testing of Electronics Packaging
- ISO 13934-1 Tensile properties of fabrics
- Top Load Testing
- Test Solutions for Bottle Industry
- ASTM D3787 | ASTM D6797 Textile Puncture Testing
