Atomic Absorption Principle
When your liquid sample is converted into a high-temperature atomic vapor, the metallic particles rest in their lowest energy ground state. If you project a highly specific light beam through this heated mist, these ground-state atoms absorb the exact wavelengths matching their unique chemical footprint. The quantity of light absorbed directly corresponds to the concentration of the target metal in your prepared sample.
Spectral Radiation and Light Source Method
A standard broad-spectrum light source is not sufficient for this process. You require a specialized hollow cathode lamp built from the exact element you are analyzing to emit the appropriate spectral lines.

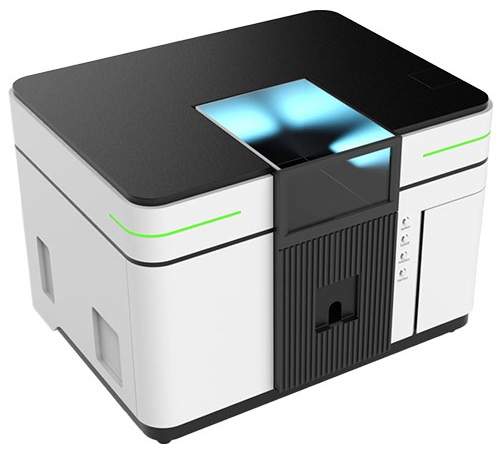

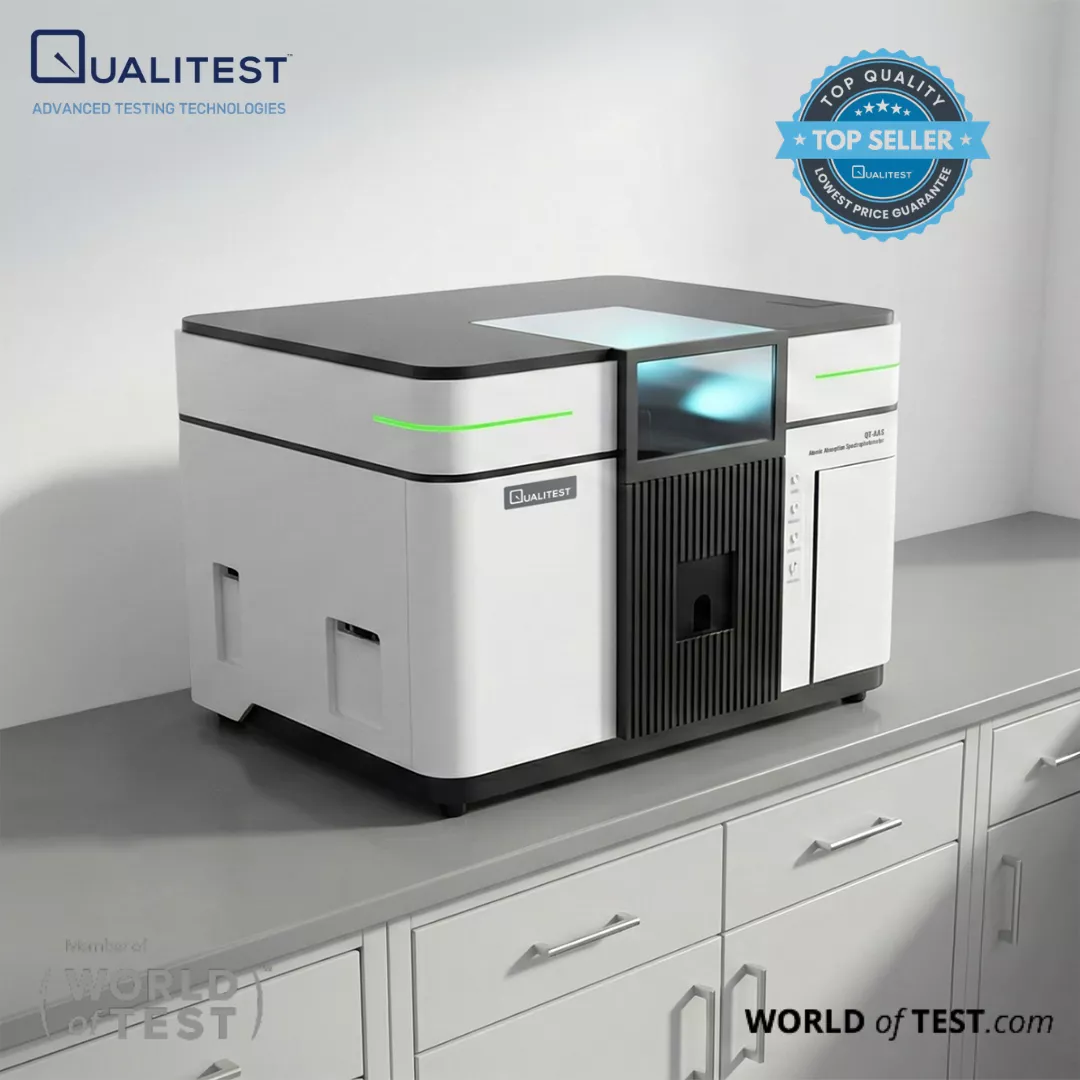

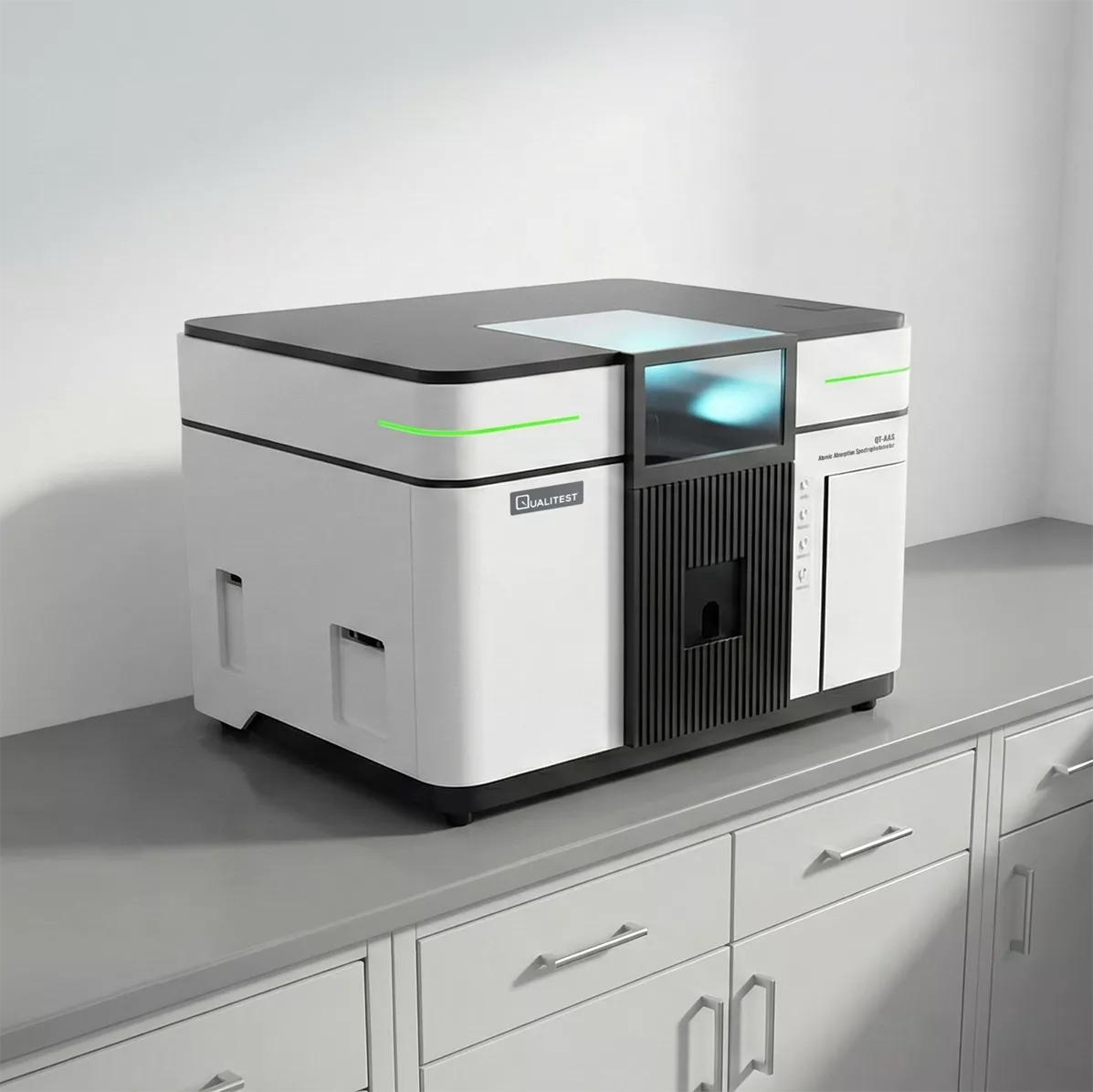

In our QT-AAS60 lineup, we integrate an automated vertical turret that holds 4 or 8 lamps simultaneously. It rotates a full 360 degrees, which means the system can test multiple elements sequentially without requiring manual lamp changes.
Wavelength Dispersion and Optical Configuration
After the light travels through the atomized sample, it enters a Czerny-Turner style monochromator featuring a 350-millimeter focal length. Inside, a holographic diffraction grating with 1800 grooves per millimeter isolates the analytical wavelength. This reflective configuration processes wavelengths anywhere from 190 to 900 nanometers while eliminating stray light and background noise, resulting in an exceptionally clear optical path.
Key Instrumental Configurations
| System Component | Operational Function | QT-AAS60 Implementation |
|---|
| Light Source | Projects the exact light beam the target metal absorbs. | A vertical, 360-degree rotating turret that holds up to 8 lamps without being affected by gravity. |
| Atomizer Options | Vaporizes and atomizes liquid samples into free gaseous atoms. | A 100-millimeter titanium alloy flame burner or a transversely heated graphite tube. |
| Optical Sorter | Isolates the target wavelength while excluding optical interference. | A Czerny-Turner monochromator holding an 1800 lines/millimeter grating. |
| Background Cleaner | Compensates for background smoke and light scattering. | Deuterium (D2) lamp correction or high-performance self-absorption setups. |
Atomization Methods: Flame vs. Graphite Furnace
Selecting the appropriate atomization method depends on the detection limits required for your analytical procedures:
Flame Atomization (FAAS)
This configuration serves as a highly reliable option for measuring metals at parts-per-million concentration tiers. The liquid sample is drawn through a high-efficiency glass nebulizer, mixed inside a corrosion-resistant chamber, and burned over a 100-millimeter titanium alloy burner head.
- Operational Advantages: The burner assembly on the QT-AAS60 Series automatically adjusts its vertical position. This motorized adjustment finds the perfect height where the optical path receives the strongest signal from your sample's atomic cloud.
Electrothermal Atomization (GFAAS)
When your technicians need to detect tiny trace amounts down to parts-per-billion levels, the flame is replaced by introducing a micro-volume sample directly into a high-density graphite tube.
- Operational Advantages: Instead of heating from the ends, our furnace heats the tube transversely from the sides. This provides uniform heating from ambient temperature up to 3000°C, eliminating cold spots, reducing chemical interference, and generating highly defined peaks.
Hydride Generation and Vapor Methods
If you are tracking down easily evaporated elements like arsenic or mercury, the system links up with a hydride generator. This chemical reaction converts volatile elements into a gaseous hydride without high-temperature heating, keeping your trace metal monitoring highly accurate.
Background Correction and Interference Control
In industrial and laboratory settings, real-world samples are frequently complex. Matrices often contain high salt concentrations or organic matter that scatter light and generate background smoke.
To fix this measurement issue, you will typically dissolve your solid materials first using a hot acid bath. Once that liquid is introduced to the Atomic Absorption Spectrophotometer, the analytical system compensates for the physical smoke using standard Deuterium (D2) background correction.
If you utilize the AA6028 Double Beam variant, it incorporates a high-performance self-absorption method that aggressively eliminates severe matrix interference, ensuring your final concentration calculations remain satisfyingly spot on.
