Mechanics of Abrasive Material Removal
Viewed under high magnification, a professional-grade abrasive cutting machine sections the material using thousands of exceptionally hard, durable abrasive grains bonded to the spinning wheel. Every single piece of grit transitions through three entirely different phases of physical action:
- The Gliding Slide (Rubbing): When the spinning disc first makes contact, it slides across the workpiece surface. The abrasive grain deflects elastically, generating sliding friction and localized heat without actual material removal.
- The Plastic Displacement (Plowing): Pressing slightly deeper, the metal is forced sideways along the edges of the groove, piling up much like displaced soil alongside a furrow.
- Actual Chip Formation (Cutting): Finally, at sufficient depth, the abrasive grit shears off clean, microscopic curls of solid metal.
When sectioning softer, more ductile metals, a specific numerical factor (the fab factor) dictates how much metal is actually removed as chips versus how much is simply pushed into raised lateral ridges. The QualiCut™ 6100S manages this transition perfectly, ensuring clean chip formation instead of subjecting the specimen to excessive friction.
Modeling and Cutting Process Mechanics
Material scientists use advanced calculations to predict exactly how a sectioning run will behave, avoiding costly trial and error:
- Energy-Splitting Equations: These partition the total cutting force into sliding, plowing, and cutting components to find the ideal operating window for slicing super-tough alloys.
- Micro-Scale Scratch Models: Computer simulations model a single abrasive grain scratching the metal to map localized stresses and deformation.
- Wheel Wear Predictions: Specially configured for the wheels on your abrasive cutting machine, these calculations map how the 350×2.5×32mm disc degrades over time.
- Data-Driven Estimations: When physical cutting conditions become too variable for standard equations, the QualiCut™ 6100S uses automatic diagnostic systems to calculate the ideal speed for an unblemished cut.
Process Parameter Control and Sample Integrity

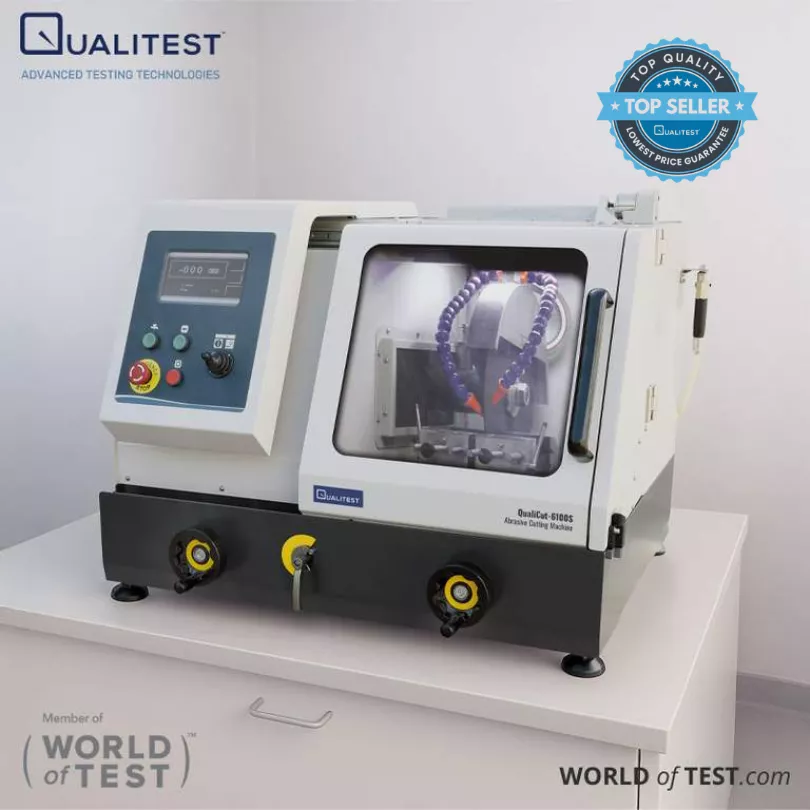

Securing a clean, undistorted finish on your abrasive cutting machine means trading brute force for highly controlled parameters. To prevent your samples from getting scorched or warped, the QualiCut™ 6100S provides comprehensive control over your operation:
- Highly Adjustable Travel Speeds: Adjust the blade's feed speed from a super-slow crawl of 0.1 mm/m to a brisk 15 mm/m, allowing you to transition smoothly past sliding friction into clean chip formation.
- High-Velocity Spindle Rotation: Moving at a swift 2800 RPM, the wheel generates rapid, clean cutting action on workpieces up to 100mm thick.
- Programmable Custom Paths: Simple, user-friendly touch-pad controls let you configure exact slicing patterns with ease.
- High-Volume Coolant Delivery: A massive 60L pump and integrated cooling system floods the cutting chamber, keeping temperatures low to secure a bright silver, burn-free surface.
By relying on this highly effective combination of cutting physics, premium Schneider safety locks, and precise friction control, you can clamp your sample onto the sturdy 12mm T-slotted worktable and cut like an absolute pro. The result? No more heat-damaged samples or prematurely worn blades.
