Core Brinell Measurement Principles
Manual optical evaluation of Brinell indentations is slow and highly prone to operator variance. The Automatic Brinell Scope addresses this limitation by automating the core measurement physics, specifically tracing the exact width of the curved indentation left by an impressed metal ball.
By choosing the BrinScan Automatic Brinell Scope, you replace manual microscope readings with rapid digital imaging and intelligent edge-tracing software, providing highly consistent, standard-compliant results (matching ASTM E10-12/E92, ISO 6506/6507, and JIS Z 2243) without operator fatigue. Optimize your quality control workflow and obtain dependable, sub-second readings on your factory floor today.
Automated Image-Based Measurement
To prevent severe eye strain and avoid inconsistent measurement data, modern configurations transmit these metal indentations directly to digital screens. Instead of relying on manual optical estimation, an Automatic Brinell Scope utilizes high-resolution digital sensors paired with advanced image processing and edge-tracing software to locate the exact borders of the dent and instantly calculate the hardness value.
Utilizing a dedicated program like the BrinScan software to analyze the images makes the entire testing cycle exceptionally efficient and entirely user-independent. The BrinScan system completely replaces traditional optical reading tubes, combining advanced visual technology with a portable digital microscope to deliver precise hardness values in less than one second, even if the metal has a highly complex, scratched, or reflective background pattern.
Model Configurations and Indentation Ranges
Different production tasks require different indentation sizes based on the specific metal thickness and test loads. That is exactly why specific optical configurations are used to accommodate various physical dimensions.
The BrinScan-110 model accurately measures larger 10-millimeter Brinell ball indentations, handling a measurement spread of 2.4 millimeters to 6 millimeters. For smaller-scale testing, the BrinScan-250 perfectly handles 2.5-millimeter and 5-millimeter indentations, tracking widths from 0.6 millimeters up to 3 millimeters.
System Integration and Data Logging
Managing a busy production facility or a metal-shaping shop requires highly efficient and reliable equipment. A portable Automatic Brinell Scope streamlines the testing workbench by removing the need for physical paperwork.

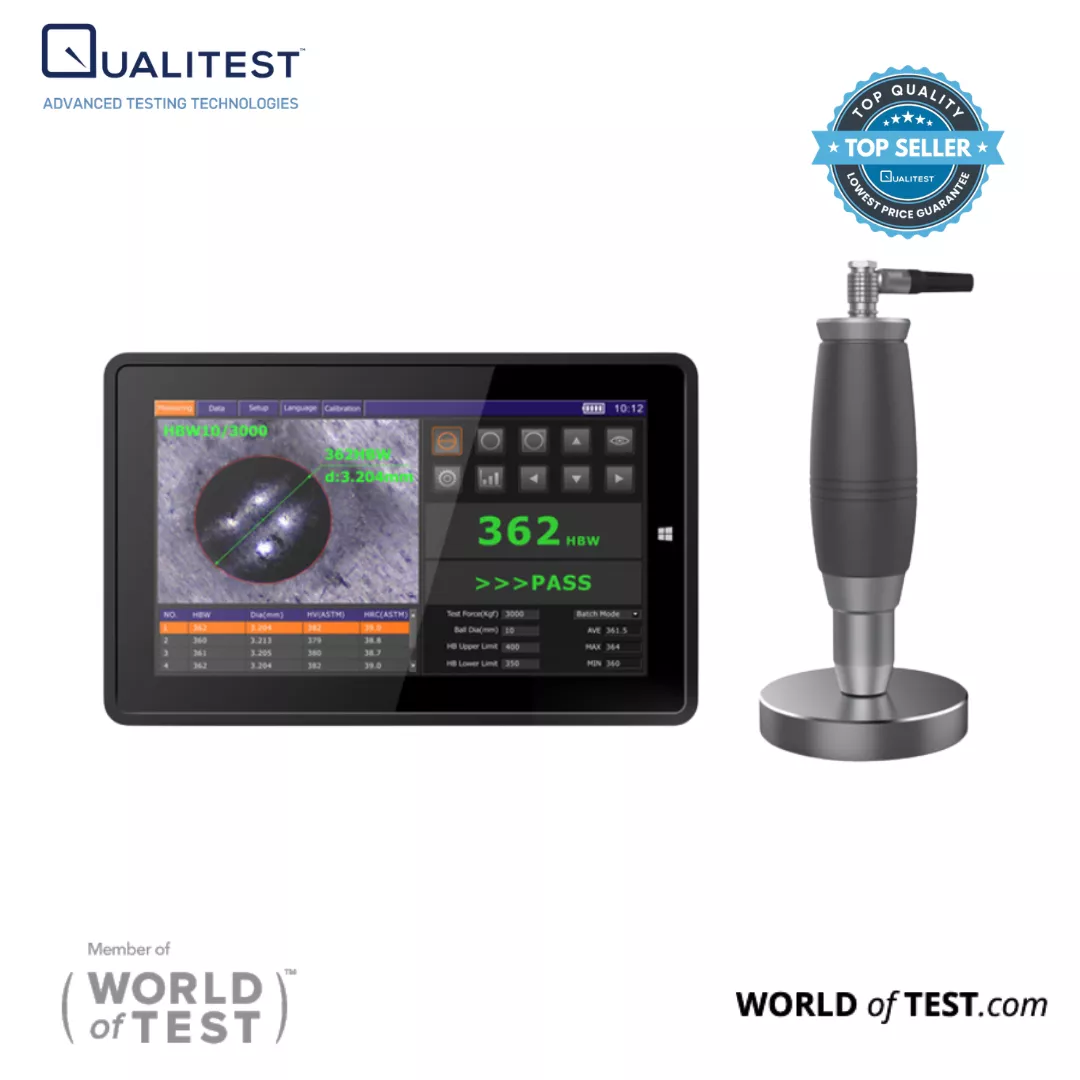

Modern Auto-Brinell Optical Measuring Systems operate seamlessly right on the shop floor. The BrinScan connects effortlessly with Windows tablet computers and laptops, with the tablet serving as an optional, highly convenient add-on. The standard package gives you everything you need upon delivery, containing the digital scope itself, the operating software, and a calibration hardness block.
Instead of writing things down on paper, portable digital microscopes handle the automated measurement tasks. The BrinScan automatically captures the indentation, calculates the hardness value, registers the measurements, saves the data files, and even generates detailed hardness measurement charts for you. This portable system gives you dependable evaluation data in a fraction of a second, requiring absolutely no specialized operator training.
