Uniaxial Compression Principles

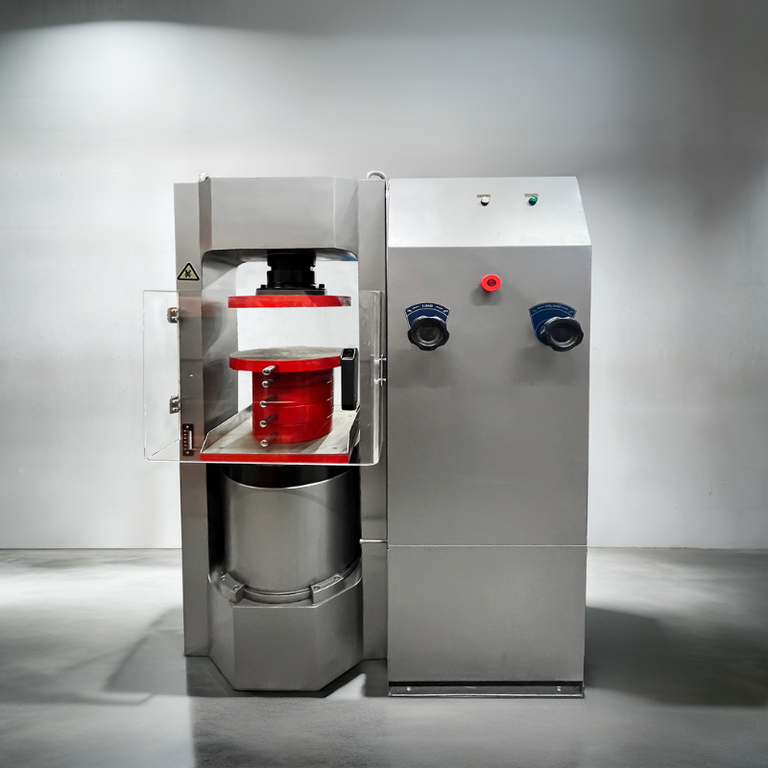

Uniaxial compression testing is the primary methodology used to determine the structural strength of cement, concrete, bricks, and rock specimens. During a test, a Concrete Compression Tester, such as the TT-CMT1000 Series, applies a continuous axial load to a specimen until material failure occurs. The machine's load frame accommodates standard test geometries, including cylinders up to 320 mm long by 160 mm diameter, as well as standard 150 mm or 100 mm cubes.
Compressive strength is theoretically derived by dividing the maximum recorded peak force, up to 1000 kN (225,000 lbf), by the specimen's cross-sectional area. By aligning this electro-hydraulic loading method with standards such as ASTM C39, EN 12390-3, and EN 12504-1, testing facilities can verify that material specimens meet design and safety requirements.
Specimen Geometry & Friction Management
Obtaining valid test data requires precise management of physical variables during loading. Standard cylindrical specimens maintain a height-to-diameter ratio of 2:1, which allows a stable stress state to develop and encourages a representative diagonal shear failure.
Additionally, friction between the loading platens and the concrete can restrict lateral expansion, creating non-uniform stress. To counteract boundary friction, the TT-CMT1000 Series Concrete Compression Tester utilizes heavy-duty 300 mm diameter upper and lower platens hardened to >55 HRC, preventing surface deformation.
When paired with proper specimen capping and the system's machined distance pieces, ranging from 20 mm to 100 mm, the equipment guarantees parallel specimen seating and uniform stress application across the entire cross-section.
Load Rate Control & Accuracy Standards
Modern compression testing mandates automated load control to eliminate operator variability. Testing standards dictate that compressive load must be applied at a steady, controlled rate, typically 0.14 to 0.34 MPa/s (20 to 50 psi/s), to prevent dynamic shock loading from artificially skewing strength results.
To satisfy this methodology, the Concrete Compression Tester employs an efficient hydraulic power pack managed by standard microprocessor controls and dedicated PC software, ensuring a linear load rate application. Furthermore, precise structural analysis relies on reliable metrology.
The load frame is engineered to deliver force measurement accuracy and repeatability better than 1% over the upper 90% of its working range, directly aligning with international force calibration requirements for testing machines.
