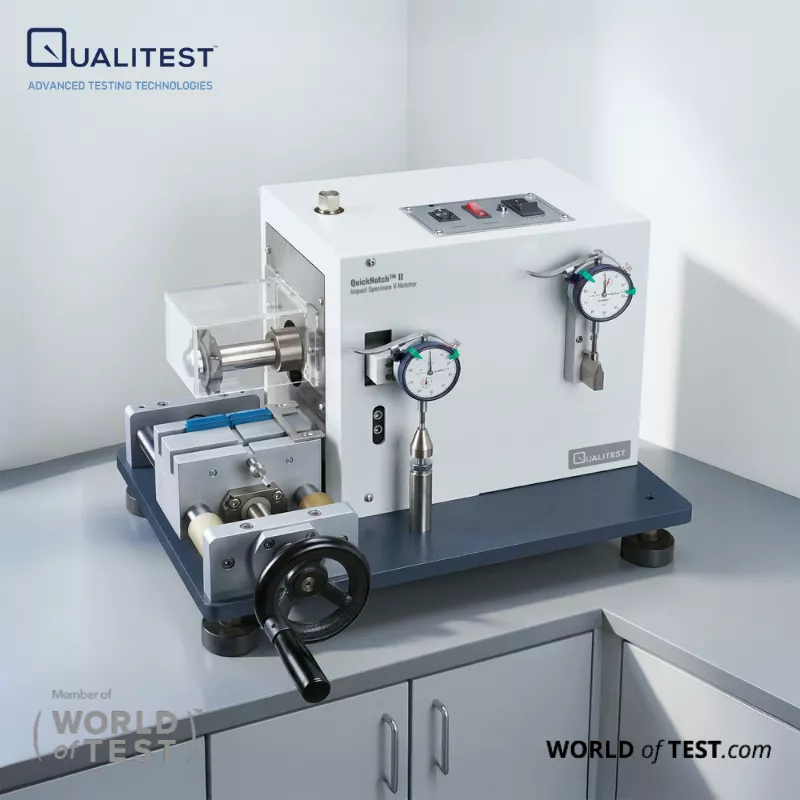

The Notcher for Impact Test Specimen machine can cut various depths for V shapes according to standards. To produce IZOD and CHARPY specimens, the user will cut a V angle along the middle of the specimen to decrease the diversity. The cutting speed of the Notcher for Impact Test Specimens machine can be adjusted according to the material of the specimen, as well as, to different angle depths, where the user can adjust or change the shape of the cutting tool to produce different angle cuts.
|Technical Specifications of the Notcher for Impact Test Specimen|
|Cutting through angle||45°(or specified)|
|Cutting Radius||R0.25(or Specified)|
|Specimen Length||140mm (MAX)|
|Specimen Dimension||3X10~13X13mm(ThicknessX Height)|
|Power||110V/60 Hz or 220V/50 Hz, 3A, Single Phase|
|Dimension||48 X 37 X 36(h)cm|
