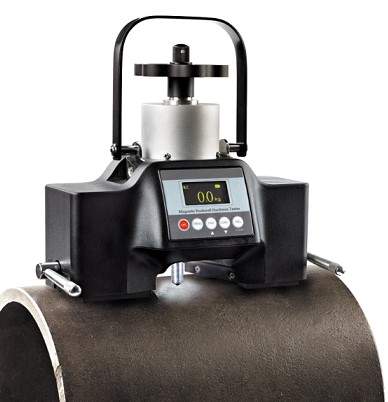

Magnetic Digital Brinell and Rockwell Hardness Tester - QualiMag-DRB

Magnetic Digital Brinell and Rockwell Hardness Tester - QualiMag-DRB

Parent Product
Portable Hardness Tester - Magnetic Type QualiMag Series

Magnetic Digital Brinell and Rockwell Hardness Tester - QualiMag-DRB could test the hardness of steel parts, bearings, moulds, castings, forge pieces and large and medium-sized heating parts.

Applications

Only if there is suitable surface, it could test large iron and steel work pieces whereas the desk tester could not. It could test the hardness of steel parts, bearings, moulds, castings, forge pieces and large and medium-sized heating parts.

Replace inaccurate and unreliable Leeb hardness tester, in a wide range of manufacture industry.

Features/Advantages

World first portable Rapid Indentation Brinell hardness tester. It realizes rapid test and direct read of Brinell hardness and solves the world level difficulty of rapid and accurate body Brinell. It is a world leading product from Qualitest. For the high-accuracy sensor and unique distance measuring technology, it reaches far higher test accuracy than other portable hardness testers.

It possesses test functions of both Brinell hardness and Rockwell hardness, satisfying most of hardness test demand of iron and steel work pieces in the manufacturing industry.

It simplifies the operation steps of Rockwell Hardness Test and Brinell Hardness Test: directly load total test force; maintain it for a few seconds; release the total test force and then the value of Rockwell hardness or Brinell hardness will display. It takes about only 10 to 20 seconds for a test, very effective.

No need of measuring indentation diameter by optical system prevents man-made error.

It permits customer to calibrate the tester with a standard block at any time.

Technical Specifications

Initial Test Force

10Kg

Total Test Force

60Kg, 100Kg, 150Kg,187.5kg

Testing Range

20~88HRA, 20~100HRB, 20~70HRC and 100~450HBWT

Testing Resolution

0.1HR or 1HBW

Indication Error

complying with ISO,ASTM standards

Repeatability Error

complying with ISO,ASTM standards

Test Force Error

≤±1%

Operating Temperature

0~50℃

Nominal Dimension

245mm×105mm×138mm

Weight

5.3Kg

Test Piece Surface

Flat      :  Area≥195mm×60mm, Thickness≥5mm

Cylinder:  Diameter≥60mm, Lenghth≥200mm, Thickness≥8mm



Standard Assembly

  • Tester
  • 120°Diamond Indenter (uncertified)
  • 1.588mm Carbide Alloy Ball Indenter  (uncertified)
  • 2.5mm Carbide Alloy Ball Indenter (uncertified)
  • Rockwell Hardness Block
  • Brinell Hardness Block
  • Iron Seat
  • Recharger
  • Battery Box
  • Carrying Case
