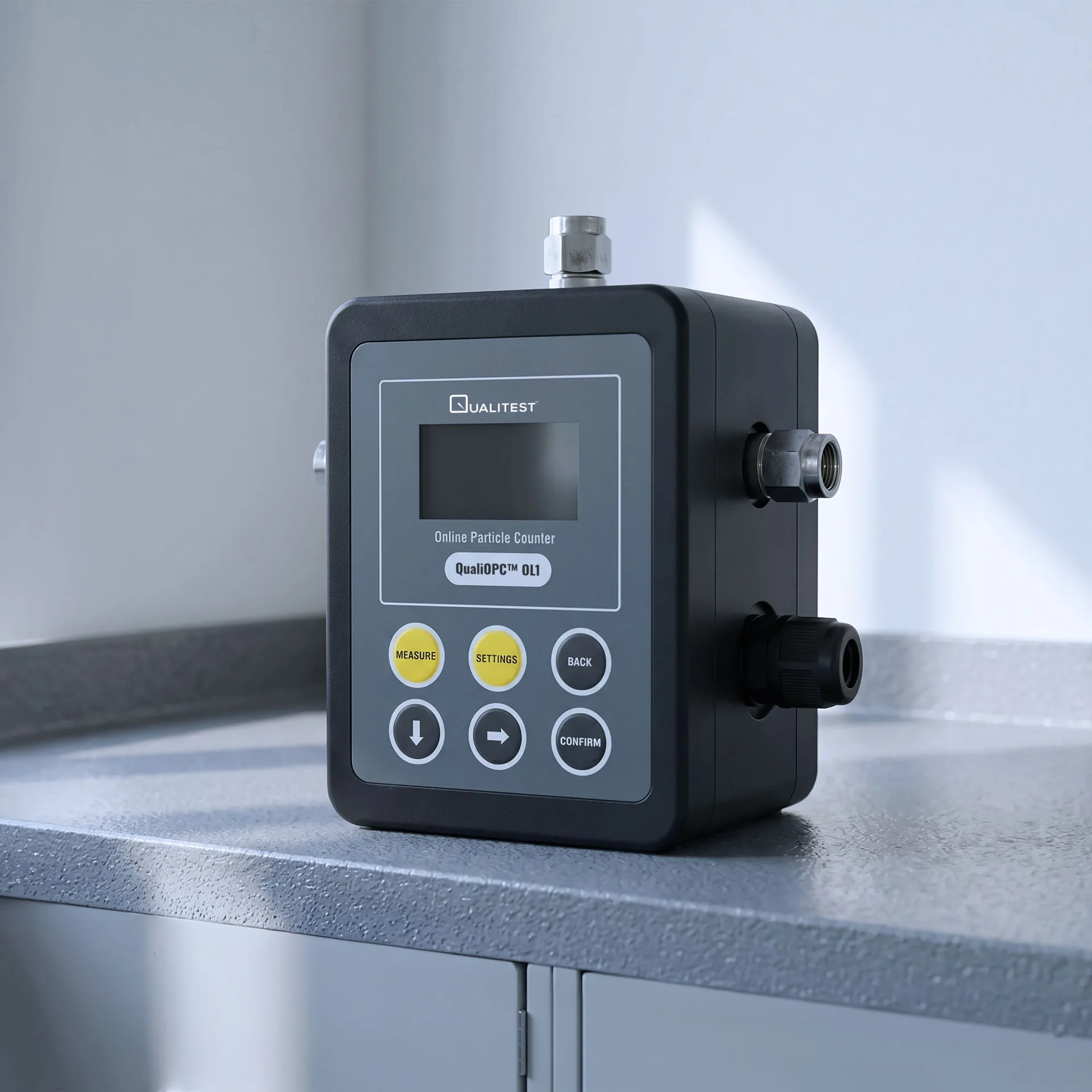

Online Particle Counter - QualiOPC™ OL1

Oil Particle Counter performance matters most when contamination has to be monitored continuously, not checked only after the fact. QualiOPC™ OL1 is an online particle counter built for real-time monitoring of particulate contamination in hydraulic oils, lubricating oils, and industrial fluids using semiconductor laser optics and the light-blocking detection method. It is designed for unattended online service and supports direct integration with industrial monitoring workflows.

This model is intended for users who need a compact online device with real-time cleanliness grading, stable measurement, and practical communication options. The Online Particle Counter - QualiOPC™ OL1 support for automatic continuous detection, adjustable test intervals, real-time flow monitoring, RS485 or RS232 communication, optional 4–20 mA output, USB-based result storage, and an optional water activity sensor for micro-water detection in oil.

QualiOPC™ OL1 is a compact Oil Particle Counter developed for continuous on-site monitoring of contamination in hydraulic and lubrication systems. It is built to measure particle counts and cleanliness levels in real time, helping maintenance teams identify contamination trends earlier and make faster service decisions without interrupting system operation.

The instrument combines a semiconductor laser, high-precision sensor, and light-blocking measurement principle in a rugged aluminum housing suited for industrial environments. Strong resistance to interference, high temperature, and pressure, making the unit suitable for harsher operating conditions than a typical bench instrument.

Online Particle Counter - QualiOPC™ OL1 Applications

  • Hydraulic Systems: QualiOPC™ OL1 is suited for continuous contamination monitoring in hydraulic systems. This supports maintenance planning by tracking particulate contamination levels in real time and helping reduce wear-related system damage.
  • Lubrication Monitoring: The system is also intended for lubrication circuits, including turbine, compressor, gear, and bearing oils. This makes it useful where ongoing oil cleanliness monitoring is part of reliability and equipment protection programs.
  • Industrial Manufacturing: for production and processing environments, the instrument provides continuous online cleanliness data that can support process quality control and maintenance decisions. Its communication options make it easier to connect with wider plant monitoring systems.
  • Power, Heavy Equipment, and Marine Use: military, aerospace, electric power, and transportation fields as target sectors, indicating broad suitability for demanding industrial service environments.
Online Particle Counter - QualiOPC™ OL1

Standards

  • ISO 4406 – fluid cleanliness coding based on particle counts
  • NAS 1638 – aerospace fluid contamination classification
  • SAE AS4059 – aerospace and industrial fluid cleanliness classification
  • ISO 4402 – calibration reference for liquid automatic particle counters
  • ISO 11171 – calibration and verification reference for automatic particle counters
  • ROCT 17216 – Russian particle contamination classification standard

Online Particle Counter - QualiOPC™ OL1 Key Features

  • Real-time online monitoring for continuous particle contamination tracking in hydraulic and lubrication systems.
  • Semiconductor laser light source with light-blocking detection for fast and stable particle analysis.
  • High-precision particle sensor for strong resolution and counting reliability.
  • Automatic continuous detection with adjustable detection intervals.
  • Real-time flow monitoring of the fluid passing through the sensor.
  • Built-in support for multiple cleanliness standards, with customization available according to user requirements. For North American presentation, the core cited standards are ISO 4406, NAS 1638, SAE AS4059, ISO 4402, ISO 11171, and ROCT 17216.
  • Integrated calibration support aligned with ISO 4402 and ISO 11171.
  • RS485, RS232, and optional 4–20 mA communication for connection to computers, PLCs, or monitoring platforms.
  • USB result export and storage support.
  • Optional water activity sensor for micro-water detection in oil.
  • High-strength aluminum housing with strong resistance to interference, temperature, and pressure.
  • Compact form factor for installation in tight online monitoring locations.

Theory and Method

QualiOPC™ OL1 uses the light-blocking method, also called the shading method. As particles pass through the sensing zone, they interrupt the laser beam, and the instrument converts those signal changes into particle size and particle count data. This method for its fast response, strong resistance to interference, good repeatability, and high measurement accuracy.

The instrument is designed for continuous online detection rather than batch-only testing. It can automatically monitor flowing fluid, report particle count and contamination level in real time, and allow the detection interval to be set as needed. The device also monitors flow through the sensor to help maintain stable measuring conditions.

Online Particle Counter - QualiOPC™ OL1 Technical Specification

ParameterQualiOPC™ OL1
Product NameOnline Particle Counter
ModelQualiOPC™ OL1
Light SourceSemiconductor laser
Detection PrincipleLight-blocking / shading method
Particle Size Range1 μm–600 μm, depending on selected sensor
Sensitivity1 μm (ISO 4402) or 4 μm(c)
Counting Volume10 mL
Counting Accuracy±1 pollution level
Test Sample Temperature0°C to 80°C
Operating Temperature-20°C to 60°C
Storage Temperature-30°C to 80°C
VoltageDC 9 V or DC 12–36 V
Detection Channels8
Fixed Particle Sizes1, 2, 5, 10, 15, 25, 50, 100 μm or 4, 4.6, 6, 10, 14, 21, 38, 70 μm(c)
Flow Rate Range10–50 mL/min or 50–300 mL/min
Online Test Pressure0.2–10 MPa; optional pressure-reducing device up to 40 MPa
Result StorageUSB interface to USB disk
Dimensions100 × 75 × 70 mm
WeightAbout 1 kg
CommunicationsRS485 or RS232; optional 4–20 mA
Optional FeatureWater activity sensor for micro-water content in oil
