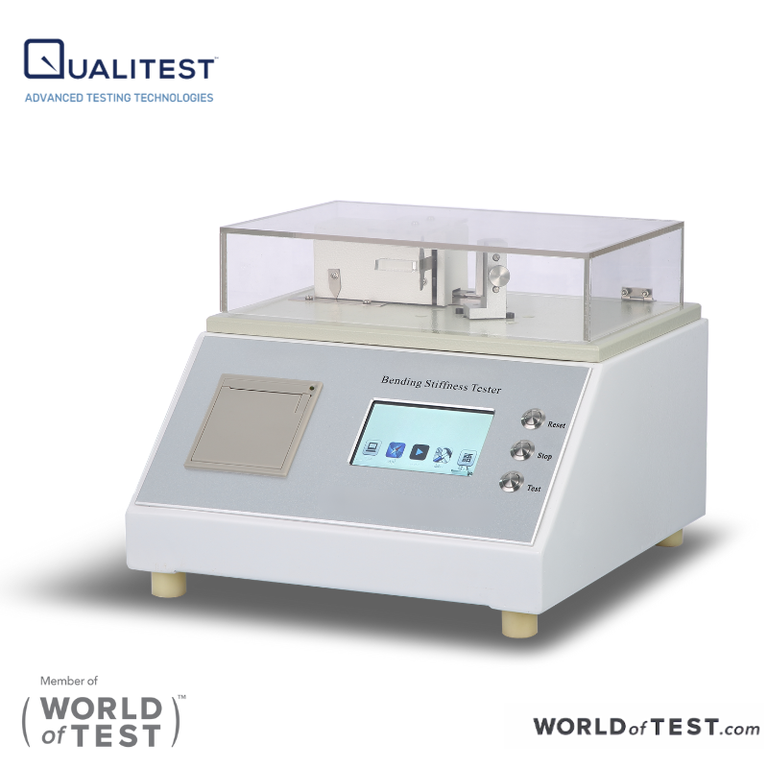

Paper Stiffness Tester

Paper Stiffness Tester
Product Categories
Paper & Cardboard Testing Equipment
Standards
ISO 5628

Stiffness is an indicator to measure the flexural strength of paper. Paper Stiffness Tester is a dedicated instrument to measure the stiffness of paper.

This Paper Stiffness Tester uses a highly precise miniature sensor. After being upgraded, the test stability, accuracy, and sensitivity of the product are greatly improved. Thus it is suitable for testing the bending stiffness of low quantitative paper.

Paper Stiffness Tester Overview

Stiffness is an indicator to measure the flexural strength of paper. Paper Stiffness Tester is a dedicated instrument to measure the stiffness of paper. This product is designed based on the principle of static bending, conforming to the requirement of ISO 5628:1990—Paper and board -- Determination of bending stiffness by static methods -- General principles.

Paper Stiffness Tester

This instrument uses a highly precise miniature sensor. After being upgraded, the test stability, accuracy, and sensitivity of the product are greatly improved. Thus it is suitable for testing the bending stiffness of low quantitative paper.

Paper Stiffness Tester Features:

  • The instrument uses single-chip microprocessor controlling technology, configured with aluminum panels, standard buttons are sensitive and durable;
  • Liquid crystal display, with test data memory function;
  • High-speed thermal printer output;
  • Automatic completion of the test and the probe resets automatically;
  • With test data statistical processing functions.

This product is designed based on the principle of static bending, which is: to bend a free end that is clamping the test sample when the sample is bent to a certain angle, the resistance is the bending stiffness (the unit is mN), or to record the arithmetic product of the resistance and the length of the test sample (the unit is mN.m).



Paper Stiffness Tester Technical Specifications:

Test range

 (0.5-500) mN

Resolution

0.1 to 0.01mN

Stiffness Value Minimum Readout

 0.001 mN﹒m

Accuracy

 ±2%

Humidity range

 Outside the cup ≤ 10 %RH, inside the cup ≥ 90 %

Test speed

 5º/S

Length of arm of loading force

 50 mm

Nominal bending angle

 7.5 ºor 15 º(Adjustable)

Instrument size

 337X330X283mm

Sample Size

  70mm x 38mm

Weight

 About 8 KG

Power

 1000 W

Power supply

 AC 220 V, 50 Hz (110V available upon request)
