| Light Source | CIE-A, CIE-C, CIE-D65 | CIE-A, CIE-C, CIE-D65 | CIE-A, CIE-C, CIE-D65 |
|---|
| Standards | ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105/JIS K 7361/JIS K 7136 | ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105/JIS K 7361/JIS K 7136 | ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105/JIS K 7361/JIS K 7136 |
|---|
| Parameter | ASTM Haze/Transmittance | ASTM & ISO Haze/Transmittance | ASTM & ISO Haze/Transmittance |
|---|
| Spectral Response | CIE Spectrum Function Y/V(λ) | CIE Spectrum Function Y/V(λ) | CIE Spectrum Function Y/V(λ) |
|---|

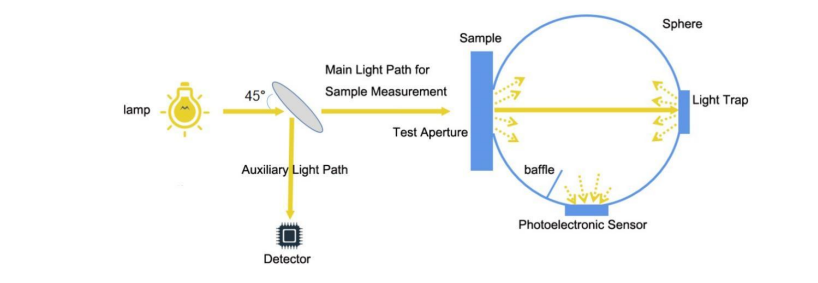

| Geometry | 0/d | 0/d | 0/d |
|---|
| Test Aperture | 21mm | 21mm, 15mm | 21mm, 15mm, 12mm |
|---|
| Test Range | 0-100% | 0-100% | 0-100% |
|---|
| Resolution | 0.1% | 0.01% | 0.01% |
|---|
| Repeatability | 0.1 | 0.05 | 0.02 |
|---|
| Sample Size | Thickness ≤40mm | Thickness ≤40mm | Thickness ≤40mm |
|---|
| Display | 2.8 inches touchscreen | 2.8 inches touchscreen | 2.8 inches touchscreen |
|---|
| Data Storage | Mass Storage | Mass Storage | Mass Storage |
|---|
| Interface | USB | USB | USB |
|---|
| Power | DC 5V/2A | Rechargeable Lithium Battery | Rechargeable Lithium Battery |
|---|
| Working Temperature | 5~40°C, Relative humidity 80% or below (at 35°C), no condensation | 5~40°C, Relative humidity 80% or below (at 35°C), no condensation | 5~40°C, Relative humidity 80% or below (at 35°C), no condensation |
|---|
| Storage Temperature | -20°C ~ 45°C, Relative humidity 80% or below (at 35°C), no condensation | -20°C ~ 45°C, Relative humidity 80% or below (at 35°C), no condensation | -20°C ~ 45°C, Relative humidity 80% or below (at 35°C), no condensation |
|---|
| Size | 133mm x 99mm x 224mm (L x W x H) | 133mm x 99mm x 224mm (L x W x H) | 133mm x 99mm x 224mm (L x W x H) |
|---|
| Weight | 1.13kg | 1.25kg | 1.25kg |
|---|
| Optional | Test Aperture with custom-made size | Test Aperture with custom-made size | Test Aperture with custom-made size |
|---|
