Portable Surface Roughness Tester - TR-200 Plus
Portable Surface Roughness Tester - TR-200 Plus Portable Surface Roughness Tester - TR-200 Plus Software

Application

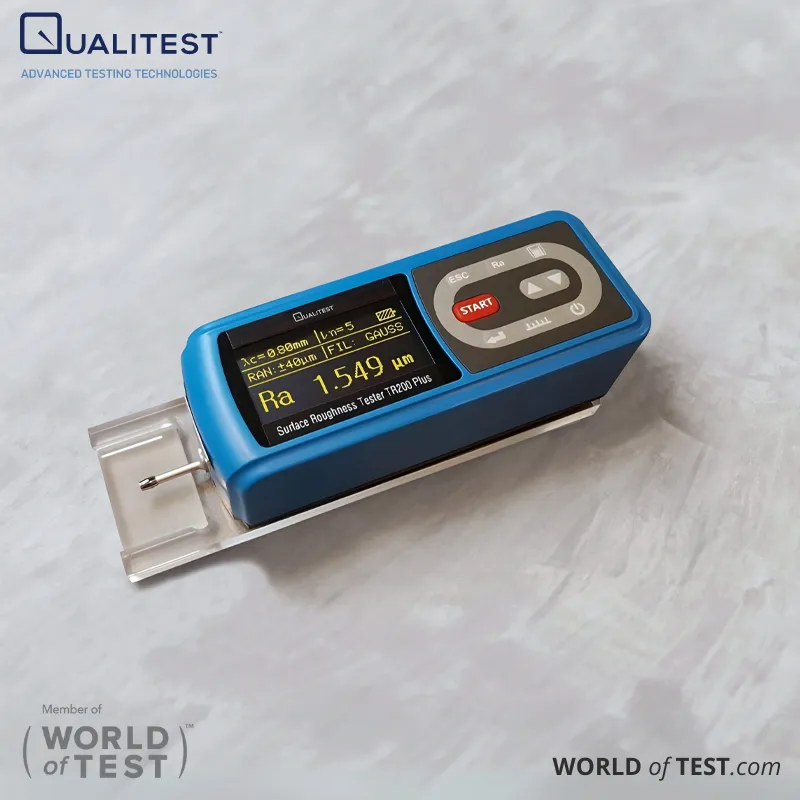

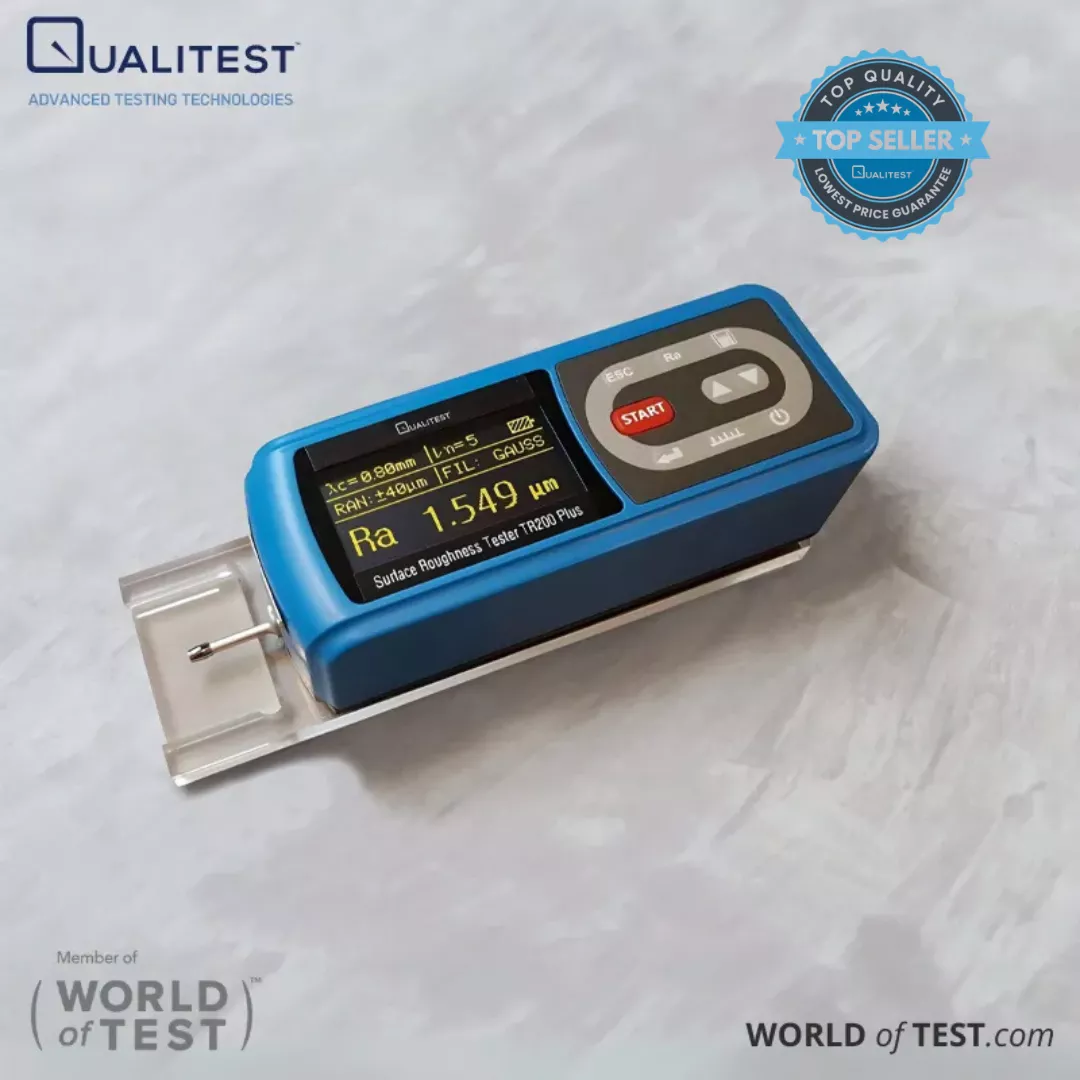

Portable surface Roughness Tester TR-200 Plus includes graphical display on large LCD with very complete instrument along with pickup stylus position indicator. This product also has 20 different roughness parameters with displaying more than 5 languages.



Features/Advantages
  • Electronic, digital, OLED display
  • Using DSP chip to control and data processing, high speed, low power consumption;
  • 20 parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rpc, Rk, Rpk, Rvk, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rs, Rmax, Mr1/Mr2
  • Roughness profile graphic display
  • Rmr curve (material ratio, C%) display
  • Standard conforms to ISO, ANSI, DIN and JIS
  • Display in both Metric (um) and Imperial units (uinch)
  • Built-in lithium ion rechargeable battery , Working time more than 20 hours
  • Large capacity data memory, can store 100 groups of original data and wave profile.
  • Real-time clock settings and display, convenient data recording and storage
  • With automatic dormancy, automatic shutdown and power saving function
  • Can be connected to a computer and printer;
  • Optional transducers for curved surfaces, bores, holes and groove, measuring platform, an extension rod and other accessories.
Technical Specification

Model

TR-200 Plus

Roughness Parameters

Ra, Rz, Ry, Rq, Rt, Rp, Rpc, Rk, Rpk, Rvk, Rv, R3z, R3y,RzJIS, Rsk, Rku, Rsm, Rs, Rmax, Mr1/Mr2

Standard

Conforms to ISO/DIN/JIS/ANSI

Assessed Profiles

Roughness profile, Material ratio profile (Rmr curve),

Measuring System

Both Metric um, and Imperial Uinch

Measuring Range

The Z axis(Vertical): 160 μm

Ra: 0.01 – 10 um (400 uinch),  Rq: 0.01 – 40um

Rz,Ry, Rp, Rt, R3z: 0.02 – 80 um

The Max./Min. driving trip

17.5mm / 0.75mm

Display Resolution

0.001 um / 0.04 uinch

Filter

RC, PC-RC, Gauss, D-P

Cut-off length (lr)

0.25mm, 0.8mm, 2.5mm

Internal storage capacity

100 groups of original data

Evaluation length(ln)

Ln=lr × n, n=1-5

Pick up transducer

Inductive, Diamond stylus with Radius 5 µm

Tolerance

≤±10%

Repeatability

≤6%

Display Features

OLED display, transducer stylus position indicator, battery level indication, Measured parameters and profile showing, Rmr (T-P) curve showing

Output

USB

Power

Li-ion rechargeable battery, More than 20 working hours / per full charging

Dimensions

143 × 55 × 42mm

Weight

400g

Standard Configurations
  • TR200 Plus main unit
  • Pick-up transducer
  • Software with USB cable
  • Calibration certificate
  • Standard test block
  • Battery charger
  • Steel protective support

Optional Accessories
  • Optional pickup transducer for curve surface, bores and inside hole and groove
  • Measuring stand Platform
