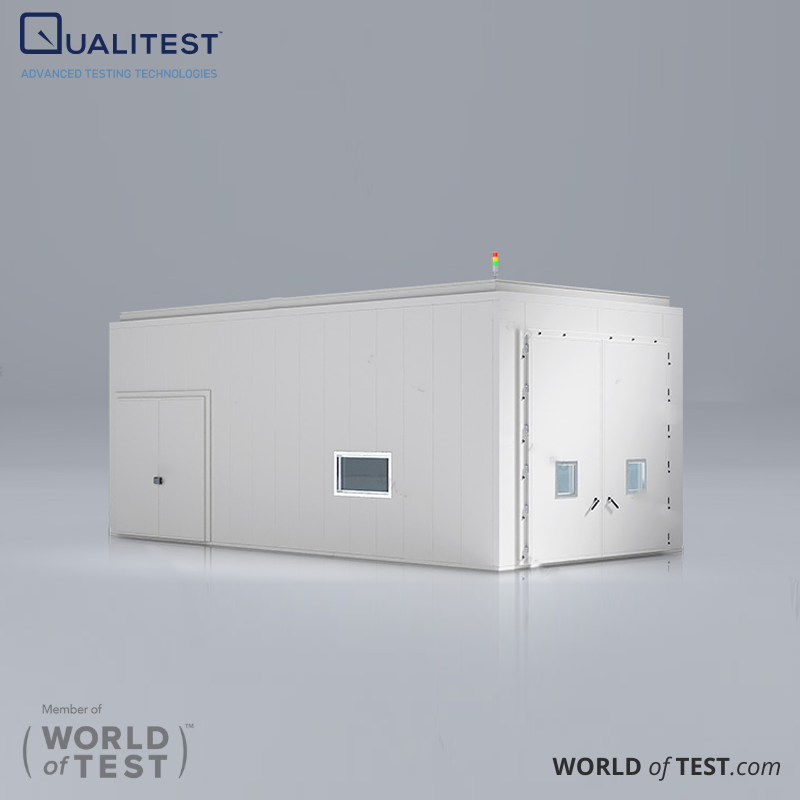

Vehicle Environmental Climatic Chamber
Vehicle Environmental Climatic Chamber is a specialized system designed to test and assess vehicle performance under a range of extreme environmental conditions. It can replicate harsh scenarios such as extreme cold, intense heat, heavy rainfall, strong winds, and sandstorms. This allows for thorough evaluation of a vehicle’s durability, reliability, and overall functionality in challenging weather and temperature extremes.
Application Fields of the Vehicle Test Chamber
The Vehicle Environmental Test Chamber plays a vital role in automotive research, development, and production. It is also widely used in metrology, aerospace, and defense sectors. For the automotive industry, its key applications include:
- Battery Testing: Evaluates vehicle battery performance under various climate conditions. This includes analyzing how high temperatures, humidity, and low temperatures affect charging, discharging, and power output.
- Electronic Component Testing: Assesses the stability and performance of onboard electronic components—such as sensors and control modules—under controlled temperature and humidity variations.
- Material Testing: Examines how body and interior materials respond to different environmental conditions to ensure resistance to UV exposure, heat, and corrosion.
- Emission Testing: Simulates exhaust emission environments to verify compliance with regulatory standards, helping ensure vehicles meet required emission limits and support performance improvements. This helps ensure vehicles meet emission targets and supports performance improvements aligned with those benchmarks.
Test Parameters of the Vehicle Environmental Chamber
Vehicle environmental chambers are tested according to international and national standards, as well as automotive industry specifications. These standards help ensure that vehicles perform safely and reliably under a range of extreme environmental conditions. Below are some commonly referenced standards:
- ISO 16750: Covers testing of automotive electronic systems under various environmental stresses such as temperature, humidity, and vibration.
- ISO 9141: Defines communication standards for vehicle electronics, including how systems operate under specific environmental conditions.
- SAE J1211: Focuses on thermal testing for electric vehicles and serves as a useful reference for vehicle chamber testing.
- FMVSS and Euro NCAP: While primarily focused on crash safety, these standards also address vehicle safety performance under environmental stressors such as heat and humidity.
These standards provide essential guidelines for validating environmental chamber performance and help ensure that vehicles meet safety and quality expectations throughout their service life.
Control System of the Climatic Test Chambers
Climatic Test chambers are equipped with advanced control systems designed to maintain stable operating conditions, deliver accurate test results, and enable precise management of all environmental parameters.
- Controller: Utilizes a high-performance controller, paired with control platform. Siemens control systems are also available. The unit includes RS232, RS485, and Ethernet communication ports.
- Programmable Operation: Supports the creation of custom test sequences—including heating, cooling, and constant temperature durations—with the ability to run multiple programs and schedule delayed starts.
- Multi-Language Interface: Available in English, and other languages.
- Remote Monitoring: Incorporates EZNET network technology for real-time remote access. Users can monitor and control the chamber via PC or smartphone, enhancing testing efficiency and flexibility.
Please note that control system specifications may vary by model. For detailed instructions and safety guidelines, refer to the provided documentation before operation.
The refrigeration system is a critical component of the test chamber, directly impacting the accuracy and consistency of test results. Qualitest has engineered an advanced and efficient system to ensure optimal performance.
- Hot Gas Defrosting Technology: Qualitest proprietary system injects high-temperature, high-pressure refrigerant into the chamber’s heat exchanger to eliminate frost buildup on the evaporator. This approach prevents icing, reduces downtime, and significantly lowers energy consumption.
- High-Quality Components: The refrigeration system features globally recognized brands. Qualitest developed the EPV and XUP series of quick-opening, energy-saving solenoid valves. These components offer long-term reliability with an all-weather lifespan exceeding 15 years. Development is also underway for a next-generation Danfoss AKV series electronic expansion valve system, offering improved efficiency and reduced noise levels.
- Energy-Efficient Design: The system utilizes VRF (Variable Refrigerant Flow) technology based on PID cold-end output, enabling energy-saving performance at low temperatures. This design can reduce energy use by up to 30% under cold operating conditions.
- Modular Configuration: Built for reliability, the system features a modular layout with minimal welding points, low failure rates, high cooling efficiency, and simplified maintenance, resulting in reduced long-term service costs.
