QM Single Column Universal Testing Machines (Advanced M2F Controller)
QM-Series Single Column M2F UTMs are equipped with Advanced Controller for demanding tests for R&D purposes, providing extensive programming options and real-time data management. Highly customizable to meet specific user requirements.

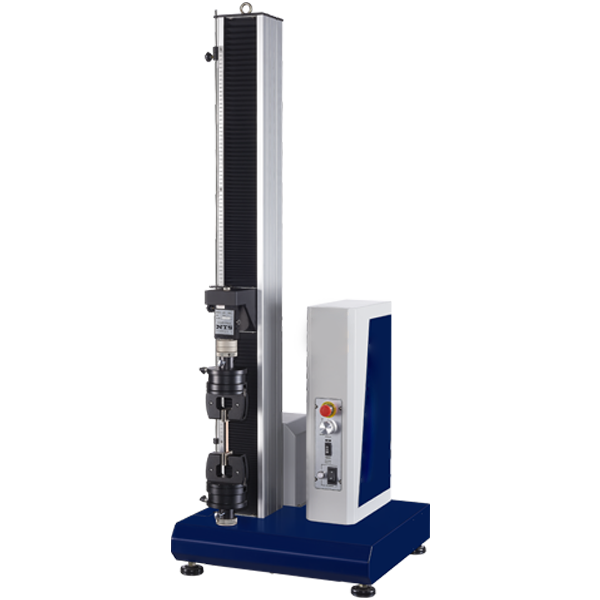

QM-2L-M2F Extended Height
 | The Universal Material Testing Machine QM-2L-M2F is compact, taking up minimal space. It is equipped with a servo motor and ball screw, making it suitable for tests requiring a capacity below 2kN. The test stroke can be adjusted to accommodate different sample dimensions, and various grips such as pneumatic, vice, and yarn grips are available for diverse tests. |
The M2F controller system is compatible with Windows and can perform various functions, including tensile (compression) force tests, bending tests, peeling tests, and hold tension (compression) tests. The software is user-friendly, supporting multiple languages and offering both metric and English units. It provides real-time graph displays and comprehensive test analysis data, which can be used for report planning, complete analysis, or archiving after the test is completed. Additionally, the machine can be equipped with a display for stand-alone operation, allowing for quick and effective data capture.
Machine Features
- Supports auto-identification of load cell parameters.
- Supports auto-identification of displacement accessories parameters.
- Provides screw holes for future multi-usage of other fixtures.
- The jog controller can adjust the displacement precisely and is more convenient for calibration.
- No specification limitation of PC for connecting software, making PC maintenance easy.
- Maximum 10-stage speed setting in one test.
- Provides defined test modes for multi-stage cyclic tests, long-period tests, reciprocating tests, and more.

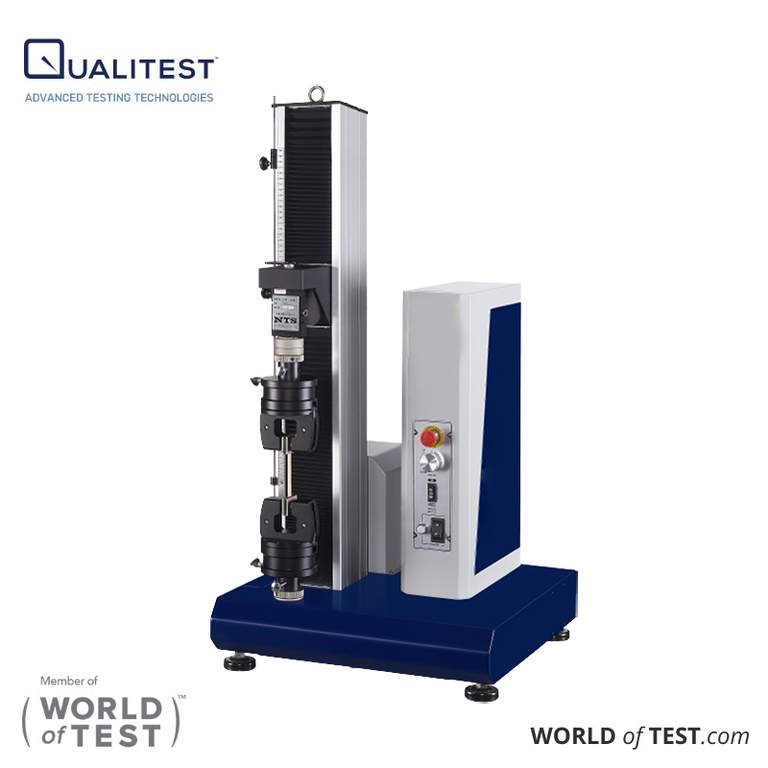

QM-5M-M2F Medium Height
 | The Universal Material Testing Machine QM-5M-M2F series are table-top, single-column UTMs with a maximum capacity of 5kN. This tensile testing machine offers a quiet testing environment and delivers high-precision test results. |
The optional display panel allows for stand-alone operation of tests such as tensile, compression, and peeling. The maintenance-free transmission mechanisms significantly reduce future maintenance issues. The machine is equipped with an independent electronic control box to avoid signal interference and enhance test stability, making it easier to maintain and update the electronic system in the future.
The manual jog feature improves the accuracy of positioning and calibration. The high-speed feedback signal minimizes the risk of overload. Additionally, the machine can accept external signals for various control modes.
Main Features:
Advanced Testing System
- The 32-bit high-precision resolution and optimized 1200Hz data acquisition allow users to acquire precise and accurate test results.
- The system is equipped with two sets of A/D and encoder signal modules respectively, and can be expanded with other modules like voltage, electric current, etc.
Complete Speed Control
- In the software, various speed modes are applicable to constant load/stress/strain/speed settings and to multi-step speed setting. The speed ranges from 0.0002mm/min to 3000mm/min, conforming to a wide range of test standards.
Function for Auto Positioning (optional)
- Set up default starting position of fixtures to ensure consistency between tests. When the function is activated, the fixtures move to the assigned position automatically.
Constant Creep Test
- Creep test can be conducted over 1 month with the data fully recorded, enabling users to conduct analysis and save results.
Reciprocating Testing (Cyclic Testing)
- Multiple steps for cyclic test and test analysis are available in the software. For example, in step N, acquire the max. load, min. load, elongation, stress, displacement, etc.
QM-5S-M2F Short
 | The Universal Material Testing Machine QM-5S-M2F series are table-top, single-column UTMs with a maximum capacity of 5kN. This tensile testing machine offers a quiet testing environment and delivers high-precision test results. |
The optional display panel allows for stand-alone operation of tests such as tensile, compression, and peeling. The maintenance-free transmission mechanisms significantly reduce future maintenance issues. The machine is equipped with an independent electronic control box to avoid signal interference and enhance test stability, making it easier to maintain and update the electronic system in the future.
The manual jog feature improves the accuracy of positioning and calibration. The high-speed feedback signal minimizes the risk of overload. Additionally, the machine can accept external signals for various control modes.
Accessories
| Display Panel |
|---|
The Universal Material Testing Machine M2F series features a 7" color touch TFT display panel that supports English and other languages. It displays force, pressure, displacement, and time, and supports various test conditions such as test speed, direction, auto-return, and stopping at the break point. The machine can analyze maximum force, interval force, force at the break point, and more. It offers multiple stop condition settings, including force, displacement, time, and elongation. It also supports over-travel, overload, and overtime stop protection settings. You can save up to 50 test results, with the option to save to a USB drive. The machine can be restored to factory settings and calibrated in stand-alone mode. It supports switching between Metric and Imperial units. |  |
| QM-L-Ext Long Extensometer |
| The QM-L-Ext Long Extensometer is designed for materials with elongation greater than 20%, such as rubber, plastic, PE, fabric, and webbing. The specimens are typically shaped like dumbbells. This extensometer can be connected to a machine to automatically detect the deformation of the test piece during testing. |  |
| QM-S-Ext Clip-on Extensometer |
| The QM-S-Ext Clip-on Extensometer is designed to measure the deformation of metals and hard plastics with less than 100% elongation. It can measure the complete deformation rate during the test without needing to be dismantled. For specimens with longer gauge lengths or higher elongation rates, customized longer extensometers are also available. |  |
Software functions
- Data Sampling Rate: Up to 1200 Hz.
- Control Methods: Mouse, keyboard, and up/down button on the machine for quick grip position adjustment.
- System Requirements: Windows.
- Language Support: English and other languages.
- Operation Mode: TCP/IP two-way transmission to connect with PC.
- Data Import and Display: Can import multiple test data and display them simultaneously.
- Unit Support: Metric and Imperial units.
- Data Analysis: Provides a flexible table for data analysis, allows naming data results, and creating user-defined formulas.
- Data Display: Data can be shown through tables, graphs, or both.
- Data Processing: Save, import, list, statistical comparison, etc.
- Graph Customization: Adjustable X-Y axis, including marks on the curve, interval marks, slope, etc.
- Test Types: Tensile, compression, bending, peeling, spring, creep, and others.
- Protection Settings: Supports over travel, overload, and overtime stop conditions.
- Test Patterns: Reciprocation, creep, constant tensile (compression), test pause, slippage, 10-stage settings, etc.
- Specimen Modular Design: For easy and quick specimen information setting.
- Test Condition Modular Design: Reduces man-made setting errors.
- Data Selection: Supports upper and lower limits for key information selection.
- I/O Ports: Supports multiple I/O ports for additional test functions.
|  |
