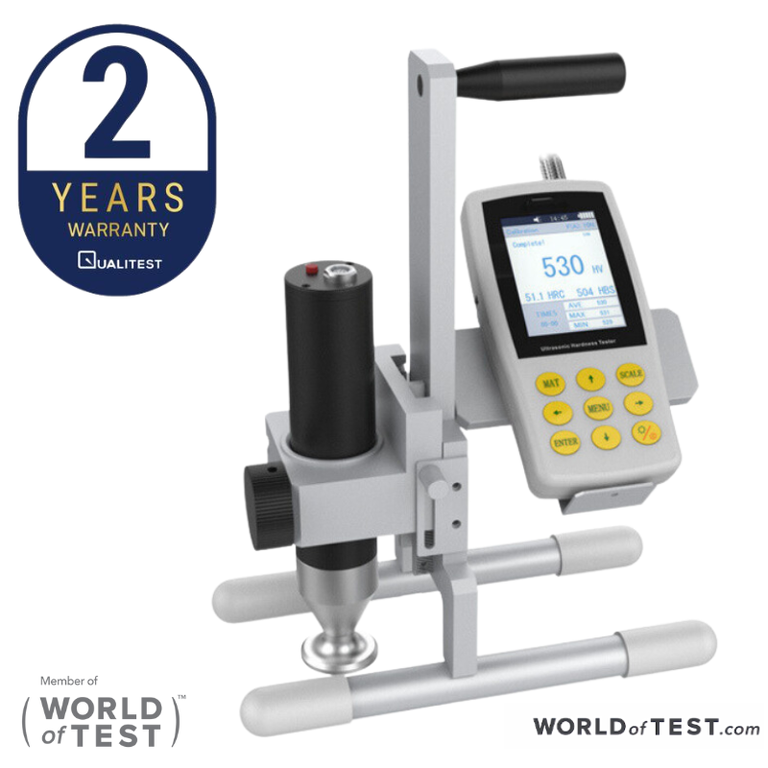

Roller Ultrasonic Hardness Tester UCI-3200R

Buy Now

Parent Product

Ultrasonic Portable Hardness Tester UCI Series

Standards

Download PDF Brochure

Roller Ultrasonic Hardness Tester UCI-3200R (PDF)

Discover unparalleled hardness testing precision with the Roller Ultrasonic Hardness Tester UCI-3200R from Qualitest North America. This advanced portable tester features ±3% HV accuracy, microscopic indentation visible only under a high-power microscope, and rapid 6-second results. The large LCD display showcases measurements and key metrics.

With user-friendly operation, a 2-year warranty, and storage for 1000 data groups, the UCI-3200R adheres to ASTM, DIN, and GB/T standards. Elevate your workshop's capabilities – choose the Roller Ultrasonic Hardness Tester UCI-3200R for unmatched accuracy and efficiency.

Roller Ultrasonic Hardness Tester UCI-3200R Introduction:

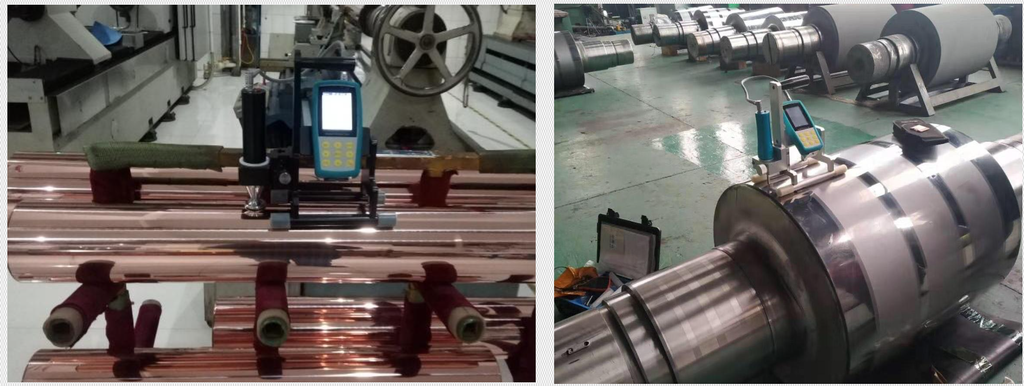

The Roller Ultrasonic Hardness Tester UCI-3200R, an advanced portable hardness tester manufactured by Qualitest North America, utilizes the ultrasonic contact independence method for conducting hardness tests on copper plating and chrome within Rotogravure industry workshops.

Ultrasonic Hardness Tester

Compliance Standards:

The Roller Ultrasonic Hardness Tester UCI-3200R adheres to industry standards, including ASTM A1038-2005, DIN50159-1-2008.

Optional Configuration:

Choose the 2N motorized probe as an option when dealing with chrome coating thickness less than 15um.

Enhance your workshop's hardness testing capabilities with the advanced features of the Roller Ultrasonic Hardness Tester UCI-3200R.

Application:

Measure the hardness of flange edges, gear root stampings, molds, sheets, surface-hardened teeth and gear grooves, and taper parts.
Conduct hardness measurements on axles, thin-wall pipes, and containers.
Measure the hardness of wheels and turbine rotors.
Assess the hardness of bit blades.
Conduct hardness measurements on welding parts.
Measure certain aperture depth, deep dents, convex marks with greater radian, and irregular planes.
Determine the hardness of most ferrous metals, nonferrous metals, and other alloys in industrial production.

Ultrasonic Hardness Tester

Roller Ultrasonic Hardness Tester UCI-3200R Key Features:

Accurate Results: Achieve perfect accuracy with deviations limited to ±3% HV, ±1.5HR, ±3%HB.
Microscopic Indentation: Indentations are visible only under a high-power microscope, ensuring precise measurements.
Swift Measurements: Obtain results in just 6 seconds, facilitating efficient testing processes.
Large LCD Display: The device features a sizable LCD display presenting measurement results, times count, maximum, minimal, average, and deviation directly.
User-Friendly Operation: Obtain precise results with a single press, making the operation straightforward and efficient.
Promised Warranty: Benefit from a 2-year warranty for the main unit, excluding the probe.
Ample Data Storage: Store up to 1000 groups of measurement data for convenient record-keeping and analysis.
Simple Calibration: Save and recall 20 groups of calibration data, streamlining the calibration process and enhancing efficiency.

Roller Ultrasonic Hardness Tester UCI-3200R Technical Specifications:

Product Name	Roller Ultrasonic Hardness Tester
Model	UCI-3200R
Standard Probe	3N Motorized Probe
Hardness Range	HV:20-1700;
Accuracy(%)	Scale	﹤250HV	250~500HV	500~800Hv	﹥800HV
	HV0.3	±3%	±3%	±3%	±3%
Display Scales	Vickers（HV）； Rockwell（HRA、HRB、HRC）; Brinell（HB）；)
Display Screen	3.2“ Color LCD
Statistics	Hardness value, Max, Min, Average, hardness conversion and Test Mode
Language	English, German, Portuguese, Turkish, Chinese
Data Output	USB
Printing	Portable Bluetooth Printer
Memory	To save 1000-groups of measuring data and 20-groups of calibration data
Word input	Letters and numerals
Working Environment	Temperature: -10°C to 50°C ; Humidity :30%-80% R.H.
Battery Voltage	Rechargeable lithium battery ; Voltage :4.2V, 4800mAh
Re-charger Voltage	AC220V/50Hz, 110V/60Hz
Unit Dimension	Main unit Dimension :160 x 80 x 30mm (L x W x H);
Packing Dimension	Packing Dimension 320 x 430 x 155mm (L x W x H)
Net/Gross Weight	2Kg/8Kg

Standard Delivery:

Product Name	Code #	Product Name	Code #	Product Name	Code #
Instrument Main Body	882-141R	3N Motorized Probe	882-221	Anti Vibration Case	882-901
Testing Stand	MU-200	Probe Cable	882-801	Screw	882-951
USB Re-charger	882-851	USB Cable	882-810	Operation Manual Qualification Certificate Warranty Card	UCI-3200R
