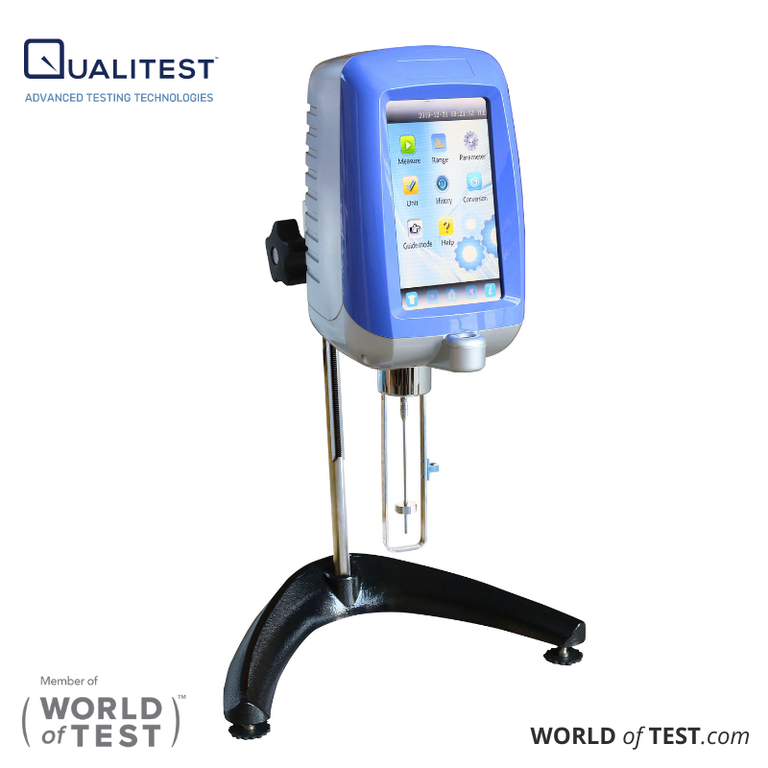

ViscoQT 1000-Pro/S Professional Intelligent Touch-Screen Rotary Viscometer
Consistent viscosity data directly affects product quality, batch release times, and process reliability. The ViscoQT 1000-Pro/S professional rotary viscometer gives laboratories and production floors a fast, repeatable way to measure the dynamic viscosity of fluids ranging from thin solvents to heavy pastes, all through a 7-inch touch-screen interface that simplifies rotor selection, speed input, and data export.
This rotational viscometer belongs to the Qualitest ViscoQT product line. It measures viscosity by quantifying the torque a rotating spindle encounters as it shears a fluid sample. That torque reading, combined with the spindle geometry and rotation speed, yields a viscosity value in millipascal-seconds (mPa.s), equivalent to centipoise (cP). Across three model variants (1S, 2S, 3S), the instrument covers a measurement range from 10 mPa.s to 80,000,000 mPa.s, which spans thin aqueous solutions through extremely viscous polymers and asphalt emulsions.
This page explains the working principle behind the ViscoQT 1000-Pro/S, the industries it serves, and how to select the right model for your laboratory or production environment.
How the ViscoQT 1000-Pro/S Rotary Viscometer Works
The ViscoQT 1000-Pro/S measures dynamic viscosity by rotating a calibrated spindle (rotor) in a fluid sample and sensing the resistive torque. Newton's law of viscosity defines dynamic viscosity as the ratio of shear stress to shear rate. The viscometer applies a known shear rate through spindle rotation and measures the resulting shear stress as torque, then calculates viscosity from that relationship.
The Underlying Principle: Torque and Viscous Resistance
When a spindle rotates inside a fluid, the fluid resists that motion. This resistance, called viscous drag, arises because adjacent fluid layers move at different velocities relative to each other. The layer in direct contact with the spindle surface moves at spindle speed, while layers farther away move progressively slower. That velocity gradient between layers is the shear rate.
The force per unit area each layer exerts on its neighbor is the shear stress. For a Newtonian fluid (one whose viscosity stays constant regardless of shear rate), the relationship is linear: shear stress equals dynamic viscosity multiplied by shear rate. A higher-viscosity fluid generates more torque on the spindle at the same rotation speed. The instrument's internal torque sensor captures that resistive force and converts it to a viscosity reading.
How the Instrument Applies This Principle
The ViscoQT 1000-Pro/S executes the measurement in a controlled sequence. The operator selects a spindle (rotors No.1 through No.4 in the standard configuration, with an optional No.0 rotor for low-viscosity samples) and immerses it in the sample at the marked depth. Using the touch-screen interface, the operator inputs a rotation speed. The ARM chip processor drives the spindle motor at that speed and simultaneously samples the torque signal.
Because the instrument supports infinitely variable speed input, the operator can set any rotation speed within the instrument's range. This capability matters for non-Newtonian fluids, where viscosity changes with shear rate. By testing at multiple speeds, an operator can profile how the fluid's apparent viscosity responds to different shear conditions. The display shows the current torque percentage alongside the viscosity value, so the operator can verify the reading falls within a reliable portion of the measurement range.
The Role of Temperature Control
Viscosity depends strongly on temperature. A few degrees of change can shift a reading significantly, especially for oils, polymers, and food-grade fluids. The ViscoQT 1000-Pro/S addresses this with a built-in RTD (Resistance Temperature Detector) probe that tracks sample temperature during every measurement. This ensures each viscosity value carries a corresponding temperature reference, which is essential for repeatability and for meeting standard test methods like ASTM D2196 and ISO 2555.
Key Components and Their Functions
The measurement system comprises several elements that work together to produce accurate data:
- Spindle set (rotors No.1 through No.4): Each spindle has a defined geometry. Larger spindles displace more fluid and generate higher torque at a given viscosity, which suits lower-viscosity samples. Smaller spindles handle high-viscosity materials without exceeding the torque sensor's range.
- Torque sensor: Captures the resistive force the fluid exerts on the spindle and converts it to an electrical signal the processor reads.
- ARM chip processor: Handles speed regulation, torque signal acquisition, viscosity calculation, and display rendering at higher data processing speeds than older analog circuits.
- RTD temperature probe: Monitors sample temperature in real time, enabling the instrument to log temperature alongside every viscosity data point.
- Touch-screen interface (7-inch): Presents viscosity, speed, torque percentage, maximum measurement range under the current rotor, and unit conversion options on a single screen.
How to Select the Right ViscoQT 1000-Pro/S Model
Choosing the correct model variant and accessories starts with understanding your sample properties and testing requirements. Three factors drive the decision.
Match the Measurement Range to Your Sample
The three model variants differ primarily in their viscosity measurement range. The 1S model covers 10 to 600,000 mPa.s, the 2S covers 10 to 6,000,000 mPa.s, and the 3S covers 100 to 80,000,000 mPa.s. Select the variant whose range comfortably spans the viscosity of your target samples. Operating near the top or bottom of a range reduces measurement reliability, so choose a model where your typical readings fall in the middle portion of the torque range (ideally between 20% and 80% torque).
Consider Spindle and Adapter Options
Standard rotors (No.1 through No.4) cover most applications. For low-viscosity fluids near 1.0 mPa.s, the optional No.0 rotor extends the lower measurement limit. For laboratories with limited sample volume, the small sample adapter (ViscoQT-ACC 1602) requires only 5 to 18 mL per test. Note that selecting the small sample adapter changes the available rotors to No.21, No.27, No.28, and No.29, and it also changes the measurement range for each model variant.
Factor in Temperature Requirements
If your process requires viscosity data at elevated temperatures, consider adding the Thermos accessory (ViscoQT-ACC 1605) for measurements up to +300 °C. For samples that need controlled cooling, the THD Series low-temperature thermostatic bath maintains stable sample temperature during testing. Accurate temperature control reduces measurement variability and satisfies the temperature documentation requirements of standards like ASTM D2196.
Frequently Asked Questions
What Does a Rotary Viscometer Measure?
A rotary viscometer measures dynamic viscosity, which quantifies a fluid's internal resistance to flow under an applied shear force. The ViscoQT 1000-Pro/S reports viscosity in mPa.s (equivalent to centipoise) and can automatically convert dynamic viscosity to kinematic viscosity when the operator provides the sample density.
How Accurate Is the ViscoQT 1000-Pro/S?
The instrument delivers ±1.0% accuracy of the full measurement range and ±0.5% repeatability. These figures apply across all three model variants (1S, 2S, 3S) when the operator uses the correct spindle and keeps the torque reading within the reliable portion of the sensor's range.
Can This Viscometer Test Non-Newtonian Fluids?
Yes. Non-Newtonian fluids change viscosity with shear rate, so the value a rotary viscometer reports is called apparent viscosity. The ViscoQT 1000-Pro/S supports infinitely variable speed input, which lets the operator test the same sample at multiple speeds and observe how viscosity shifts with changing shear conditions.
What Standards Does a Rotational Viscometer Follow?
Rotational viscometers support test methods including ASTM D2196 (rheological properties of non-Newtonian materials), ISO 2555 (apparent viscosity of plastics and resins), and ASTM D1084 (viscosity of adhesives). The ViscoQT 1000-Pro/S provides the spindle configurations, speed ranges, and torque measurement accuracy these methods require.
How Do I Choose the Right Spindle for My Sample?
Select a spindle that places the torque reading between 20% and 80% of the sensor's full range at your target speed. The ViscoQT 1000-Pro/S simplifies this process: enter any speed and the display shows the maximum measurement range under each available rotor, so the operator can quickly identify which spindle fits the sample viscosity.
What Sample Volume Does the ViscoQT 1000-Pro/S Require?
With standard rotors, the instrument requires a sample container (typically a 600 mL beaker) large enough to immerse the spindle to the scribe line. The optional small sample adapter reduces the required volume to 5 to 18 mL, which is useful for expensive or scarce formulations during R&D testing.
