Video Extensometer 2000 Series

Video Extensometer 2000 Series

Video Extensometer 2000 Series

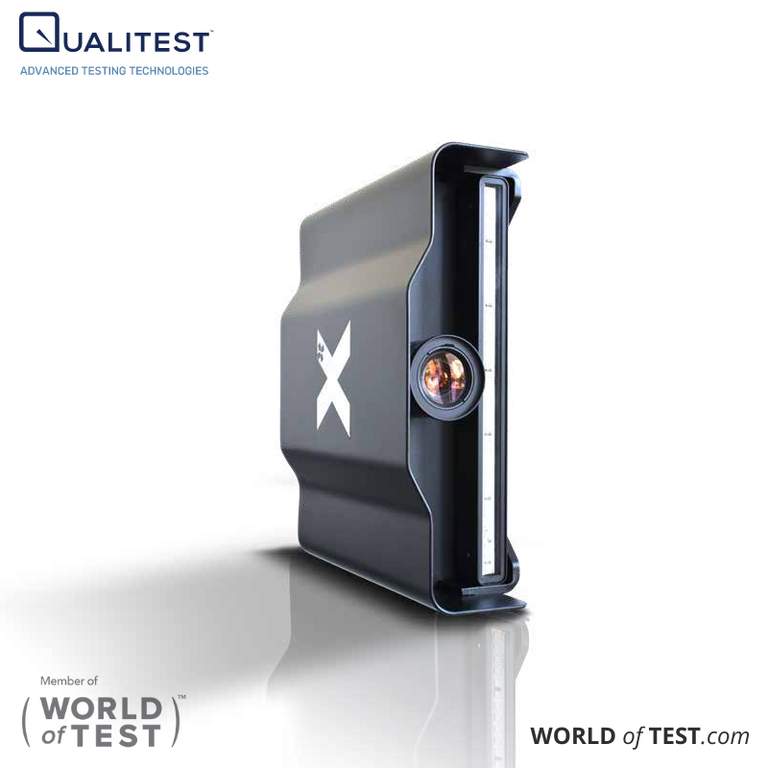

Video Extensometer 2000 Series are intelligent and user-friendly tools designed for routine testing in industrial and research environments. With a compact design, these devices feature a monochromatic LED bar and can be easily mounted directly onto a testing machine frame for a streamlined setup or attached to a tripod using standard screw threads. The lens is conveniently accessible, allowing for quick changes to adapt the device for various applications.

Video Extensometer 2000 Series

X-Sight ASTM Focused Video Extensometer

The X-Sight-2106 (ASTM) is a budget-friendly video extensometer specifically designed for ASTM testing. Featuring an MPX camera, this model stands out from other 2000 series devices by omitting the relay, making it more affordable without compromising on performance. Its compact design enables easy mounting on a testing machine or tripod, and it comes equipped with an interchangeable lens, offering flexibility for a variety of testing applications.

Video Extensometer 2000 Series Features

Compliant with ISO 9513 and ASTM E83 standards.
Meets ISO 6892-1 and ASTM E8 requirements for strain rate control mode.
Compatible with a wide range of ISO and ASTM standards for measuring tensile properties in materials such as metals, plastics, elastomers, composites, and concrete.
Suitable for high-temperature testing and climate chamber measurements.
Easy-to-use operator mode for streamlined functionality.
Equipped with axial and radial neck detection, among many other advanced features.
Easily integrated into automated production lines.
Offers a broad selection of measurement tools for comprehensive deformation analysis.

Video Extensometer 2000 Series Technical Specifications

Product	Typical sampling Rate [Hz]	Sampling Rate at Full View [Hz]	Interface	Measurement length [mm]			Light	Dimensions [mm]	Lens mount
Product	Typical sampling Rate [Hz]	Sampling Rate at Full View [Hz]	Interface	Class 0.5*	Class 1*	Class 2*	Light	Dimensions [mm]	Lens mount
X-Sight-2101	200	170	USB3.0	80	160	320	L200	221×187×80	C
X-Sight-2102	90	43		110	190	380
X-Sight-2105	175	75		130	260	520
X-Sight-2106	200	60		80	160	320
X-Sight-2109	75	32		220	440	880
X-Sight-2116	70	23		330	660	1320
X-Sight-2201	200	170	USB3.0	2×80	2×160	600	2×L200	221×187×80 per unit	C
X-Sight-2202	90	43		2×110	360	720
X-Sight-2205	175	75		2×130	520	1040
X-Sight-2206	200	60		2×80	2×160	600
X-Sight-2209	75	32		420	840	1680
X-Sight-2216	70	23		640	1280	2600
X-Sight-2301	200	170	USB3.0	3×80	3x160	900	3×L200	221×187×80 per unit	C
X-Sight-2302	90	43		3×110	530	1060
X-Sight-2305	175	75		3×130	760	1500
X-Sight-2306	200	60		3×80	3×160	900
X-Sight-2309	75	32		620	1240	2480
X-Sight-2316	70	23		920	1900	3850

* Compliant to ISO 9513

** ASTM focused VE
