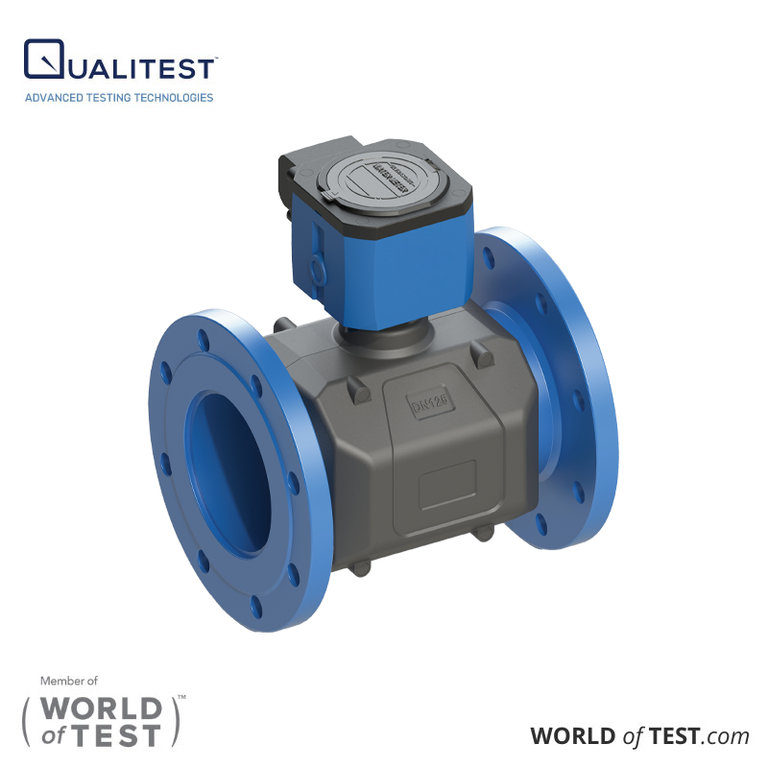

2 & 4 Channel Ultrasonic Water Meters
Ultrasonic Water Meter is a recently launched highly integrated device with two-channel or four-channel configurations, in compliance with ISO4064-2014 standard. This series offers several advantages including high range ratio, ultra-low power consumption, and stable, reliable operation. Each component of the water meter is protected to IP68 standards, enabling its use in diverse, challenging environments. It finds applications in urban water supply, water resources management, agricultural irrigation, landscaping, and industrial production, representing a significant advancement in water metering technology.
- Wired RS485, M-BUS DC8-24V power supply Wireless NB-Iot communication method
- High reliability and wide turn down ratio
- Protection class IP68
- Two-way PT1000 temperature resistance can realize air conditioning heating heat measurement
- Ultra-low power consumption, the working time is more than 20 years
- Optional two-channel, four-channel
- Stainless steel sensor housing will not rust or clog
- Ultrasonic measurement, no wearing parts
- Orifice design, no pressure loss
- Tamper protection Shell
- Electromechanical separation design, assembly, maintenance without dismantling
Display Operating
Error curve
Pressure loss
- DN15-40 pressure loss△P40
- > DN50 Pressure loss△P10（Diameter ）
Communication &networking
Equipped with waterproof junction box, suitable for wired communication or wireless communication
- Wired (RS485/M-BUS Communication Interface)
- Wireless (NB-Iot Wireless transmission module （8AhBuilt-in battery for independent power supply）)
Typical application
Smart Agriculture System for Agricultural Irrigation and Landscaping: This system provides quantitative irrigation information for smart agricultural systems and landscaping. It offers water-saving, time-saving, and labor-saving benefits through scientific irrigation practices.
Water Supply and Drainage: This involves the measurement, scheduling, and management of bus and branch line flow. It also includes household metering master meters, utilized for settling water volume in buildings and units.
Water Resource Management: This encompasses water resource fee settlement and water flow monitoring.
Industrial Water Supply and Drainage Metering: This involves external water supply settlement, internal water accounting, and drainage fee settlement.
