5 Axis CNC Machine – QualiCNC-300

5 Axis CNC Machine – QualiCNC™ 300

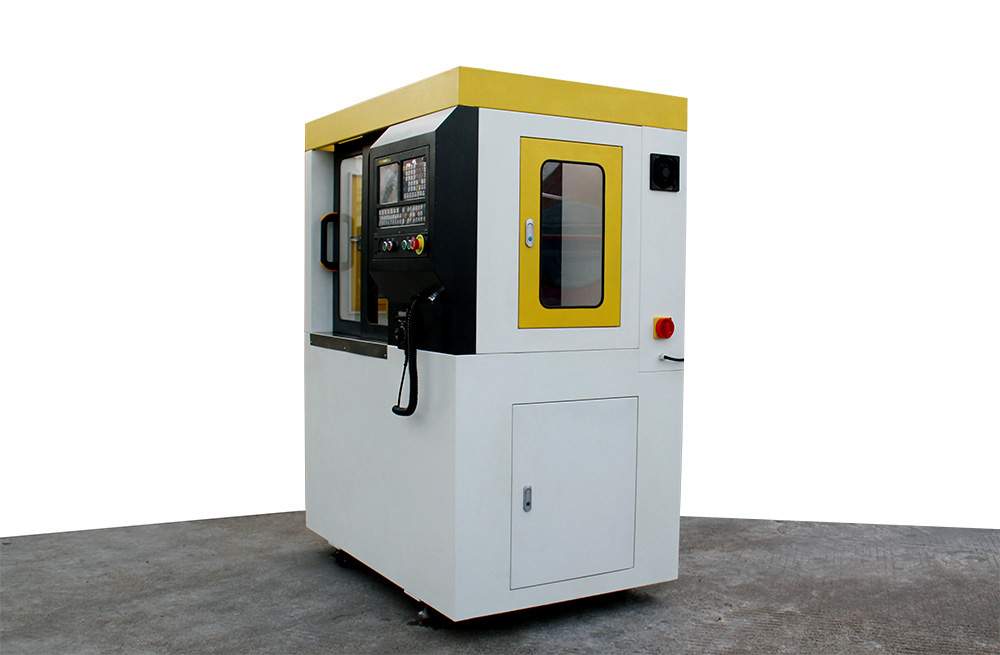

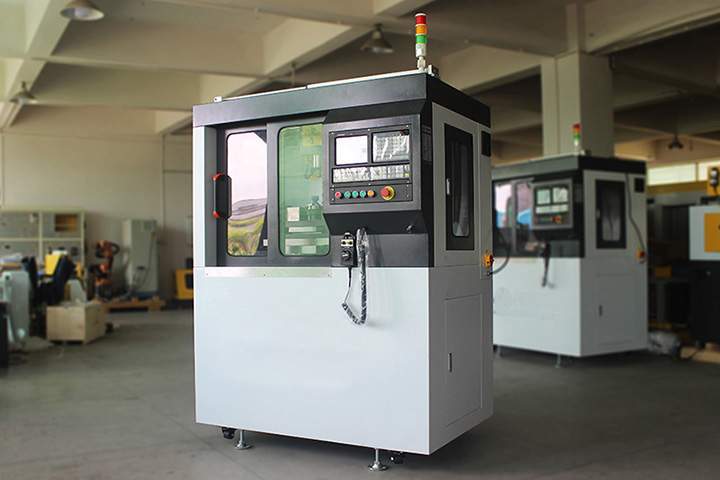

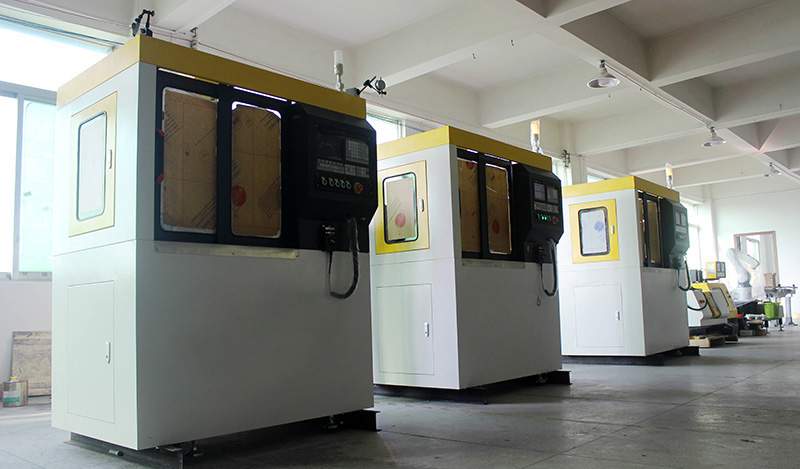

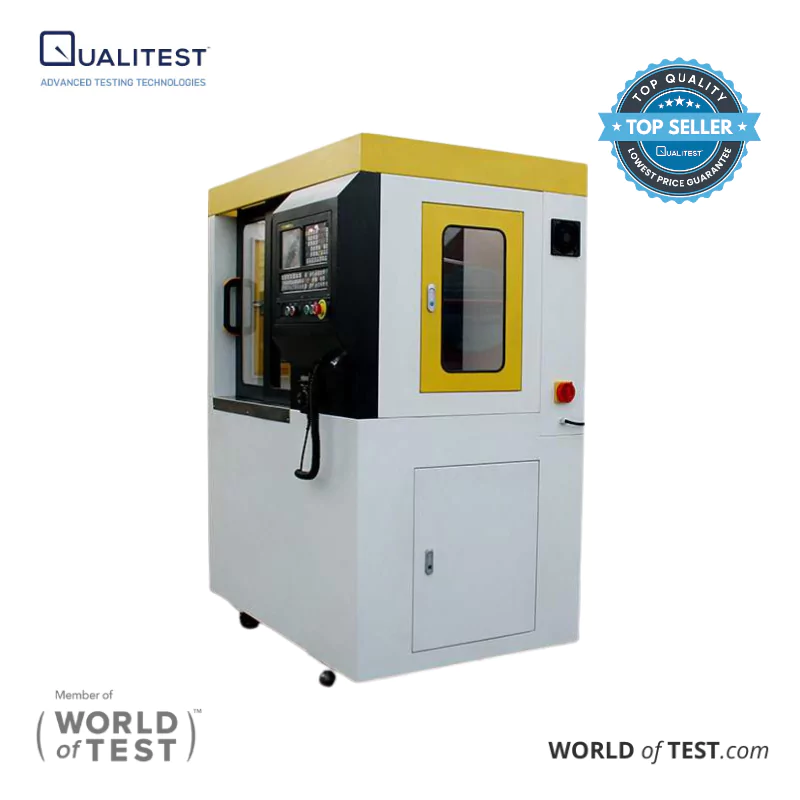

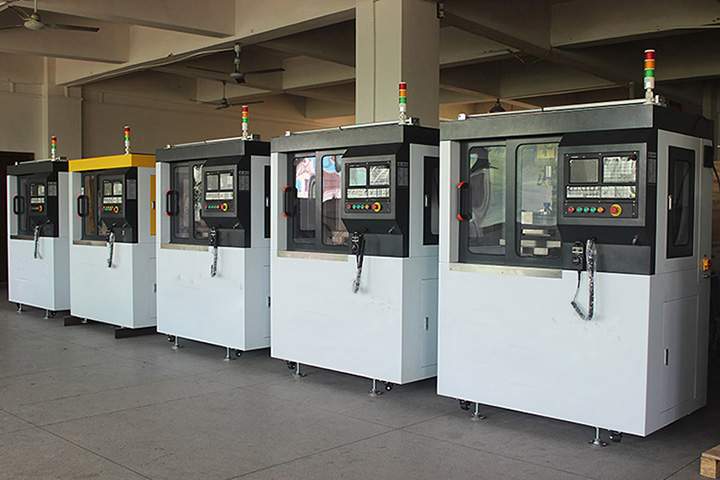

5 Axis CNC Machine – QualiCNC™ 300 an advanced controller powered by an ARM high-performance CPU and ultra-large-scale programmable FPGA devices. With real-time multitask control and hardware interpolation technology, it achieves high-efficiency, micron-level precision processing. The standard specifications include an MPG handwheel and a 10-tool automatic tool changer (ATC). Its frequency-conversion water-cooled motor ensures low noise, high speed, and long-lasting durability. Designed with a high-precision linear guide and premium cast materials, it offers a more compact structure. This machine is an excellent choice for DIY enthusiasts, hobby users, and CNC education and training.

5 Axis CNC Machine – QualiCNC-3005 Axis CNC Machine – QualiCNC-300
5 Axis CNC Machine – QualiCNC-3005 Axis CNC Machine – QualiCNC-300

5 Axis CNC Machine – QualiCNC-300

5 Axis CNC Machine – QualiCNC-3005 Axis CNC Machine – QualiCNC-300
5 Axis CNC Machine – QualiCNC-3005 Axis CNC Machine – QualiCNC-300
5 Axis CNC Machine – QualiCNC-3005 Axis CNC Machine – QualiCNC-300

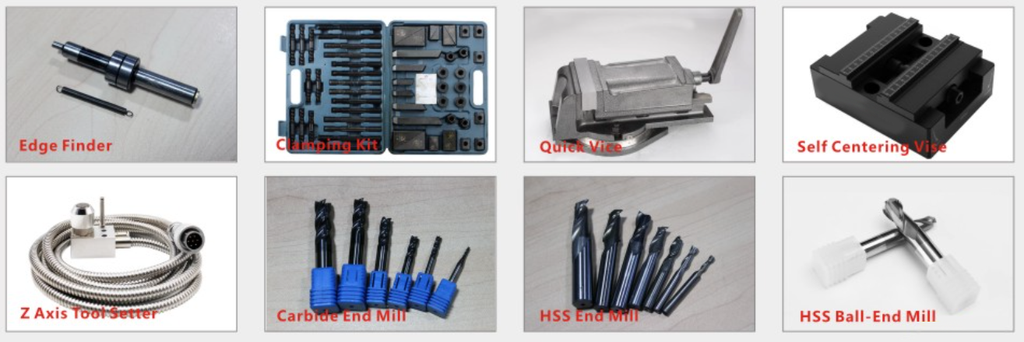

Optional Accessories

5 Axis CNC Machine – QualiCNC-300

5 Axis CNC Machine – QualiCNC™ 300 Features

  • High-performance 5-axis CNC machining center with advanced controller.
  • Standard features include an electronic handwheel.

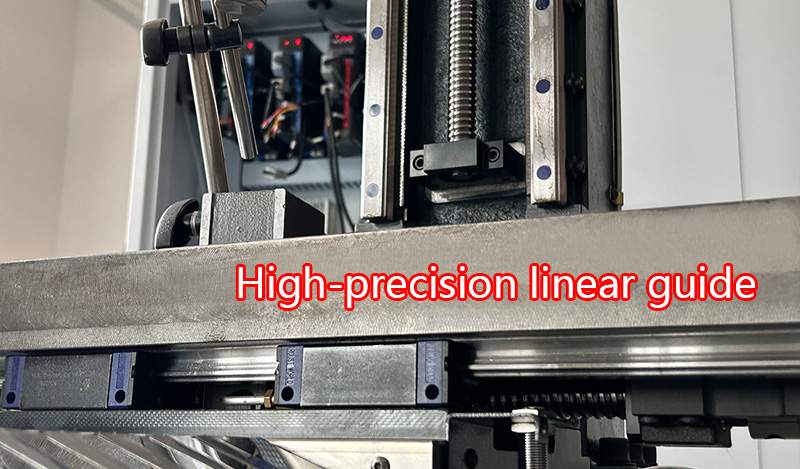

  • High-precision linear guide with premium cast materials for a more compact design.

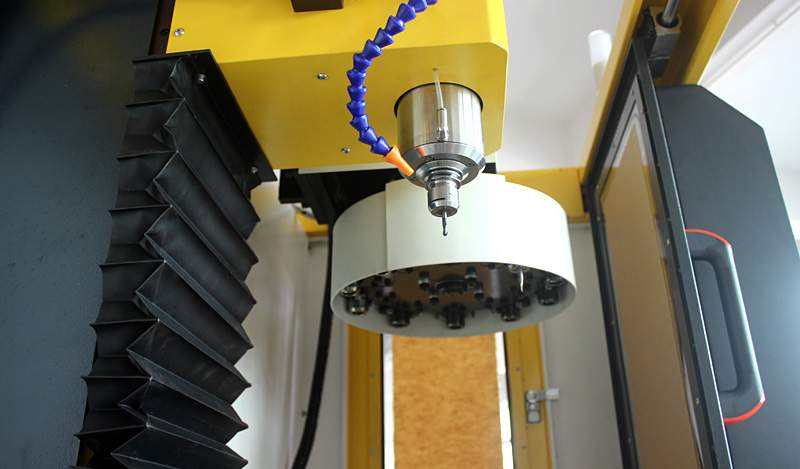

  • 10-tool automatic tool changer (ATC), ISO20 spindle, 24,000 RPM spindle speed.
  • Multiple communication options (USB, U disk, RS232COM) for seamless data transfer and software upgrades.
  • Frequency-conversion water-cooled motor for low noise, high speed, and durability.
  • Intelligent self-diagnosis with real-time status monitoring and instant alerts for abnormalities.
  • Macro programming with variable definitions, supporting parameter-based macro programs for flexible operations.
  • Graphic simulation function for real-time visualization of tool paths, ensuring accuracy before execution.
  • Multi-interface support with multilingual display, automatic fault alerts, and real-time processing information.
  • Parameter table input for easy configuration—simply enter values in the setup table.
  • Ideal for industries including technology development, advertising design, art, vocational training, and CNC enthusiasts.

5 Axis CNC Machine – QualiCNC™ 300 Technical Specifications

Positioning accuracy0.02mm
Repeatability accuracy0.01mm
X axis travel310mm
Y axis travel180mm
Z axis travel290mm
Options 5th axisBacklashZero Backlash
Max Speed 4th axis30/R.P.M
Max Speed 5th axis30/R.P.M
Accuracy 4th axis±1 arc-min
Accuracy 5th axis±1 arc-min
Repeatability 4th axis20 arc-sec
Repeatability 5th axis20 arc-sec
HomingA axis
Limits+C, -C

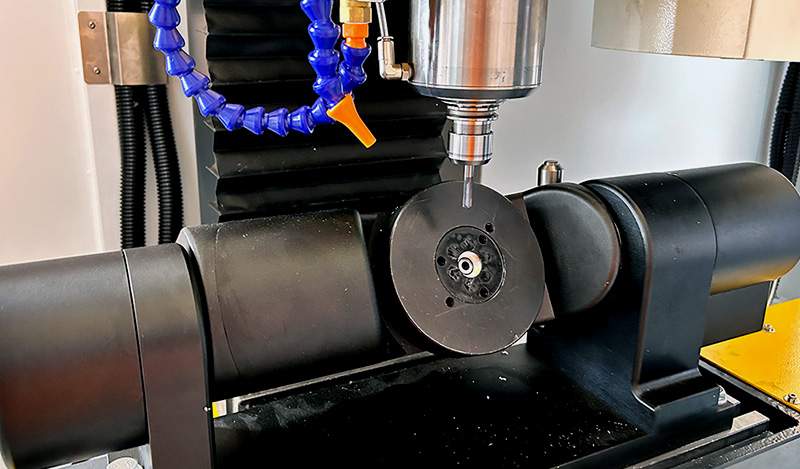

4th axis TravelA axis:+30° to -120°,
5th axis TravelC axis:±infinity
C axis Output Flange Diameter120mm
Spindle taperISO 20
Automatic tool change system(ATC)10 Tools
Pneumatic supply0.6 MPa
Tool DIA. range1-13mm
Standard Size Collet1-13mm
Control system5 axis CNC center machine controller
MPG hand wheel5 axis
Spindle Power1.5kw
Spindle speed100-24000rpm
Motor TypeXYZAC axis AC Servo
Rapid movement in X /Y/Z Axis1-8000mm/min
Feed rate in X/Y/Z Axis1-4000mm/min
Power of X/Y/Z AxisAC Servo 750W
Power of A/C AxisAC Servo 200W
TransmissionBall screw
Guide railHigh-precision linear guide
Table size550*180mm
Number of T-slots3
Width of T-slot12mm
Table structureFull cast iron
Voltage230VAC/110VAC
Weight(NW/GW)650/700kg
Overall dimension1360 x 990 x 1800 mm
Packing size1400 x 1050 x 2000 mm
