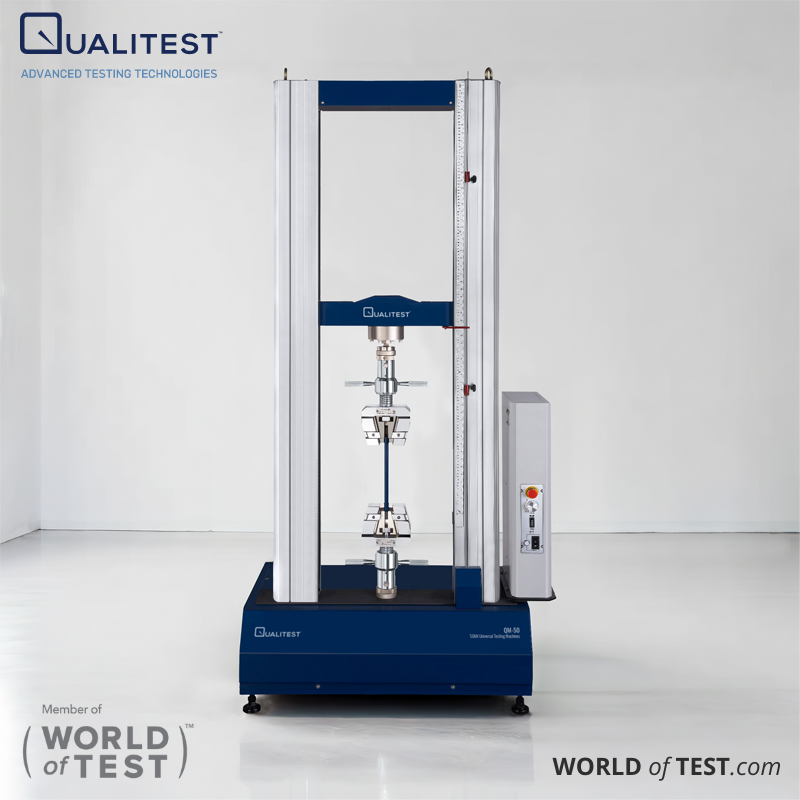

50kN Universal Testing Machine – Tensile / Compression Tester QM-50-M1F (Intermediate Controller/Software)

1. Equipped with a 7-inch TFT color touch screen.
2. English and other languages
3. Data Display: Force, Stress, Torque, Displacement, and Time.
4. Test settings include test speed, test direction, automatic position return, and machine stop at the breaking point.
5. Data analysis capabilities include reading maximum force, internal force, breaking point force, and more.
6. Can be calibrated as a stand-alone unit.
7. Various machine shutdown conditions can be set (force, displacement, time, elongation).
8. Can be restored to the original factory state.
9. Unit selection available in Metric or Imperial units.
10. Features over-travel, overload protection, and overtime machine stop.
11. Can store up to 50 data sets, with USB storage data function.
12. Supports multiple sets of signal sources.

The QM-S-Ext Clip-on Extensometer is designed to measure the deformation of metals and hard plastics with less than 100% elongation. During testing, it can measure the complete deformation rate without needing to be dismantled. For specimens with longer gauge lengths or higher elongation rates, a customized longer extensometer is also available.

1. Operated by keyboard and mouse; grip position is controllable by up/down button.
2. Adjustment of X-Y axis on the graph: curve’s point marking, interval, slope, etc.
3. Different test patterns available: Hold tensile, special setting of grip movement.
4. TCP/IP interface (two-way transmission). Machine can be controlled by PC.
5. Test settings can be saved as modules to reduce mistakes and errors.
6. English and other languages
7. Multiple test data can be shown simultaneously on the software.
8. Supports tensile, compression, bending, peeling, and spring tests.
9. The software can display data, graphs, or both at the same time.
10. Compatible with Windows 7/8/10.
11. Sampling rate up to 400Hz.
12. The software supports various I/O signals.
13. Units can be chosen between metric or imperial.
14. The data table can be modified based on user preferences.
15. Data can be renamed and formulas can be created.
16. Data processing: store, call, list, statistical comparison, etc.
17. Protection from excessive test stroke, capacity, and time.
18. Sample specifications can be saved as modules for quick use.
19. Upper and lower limits can be selected to access key data.
