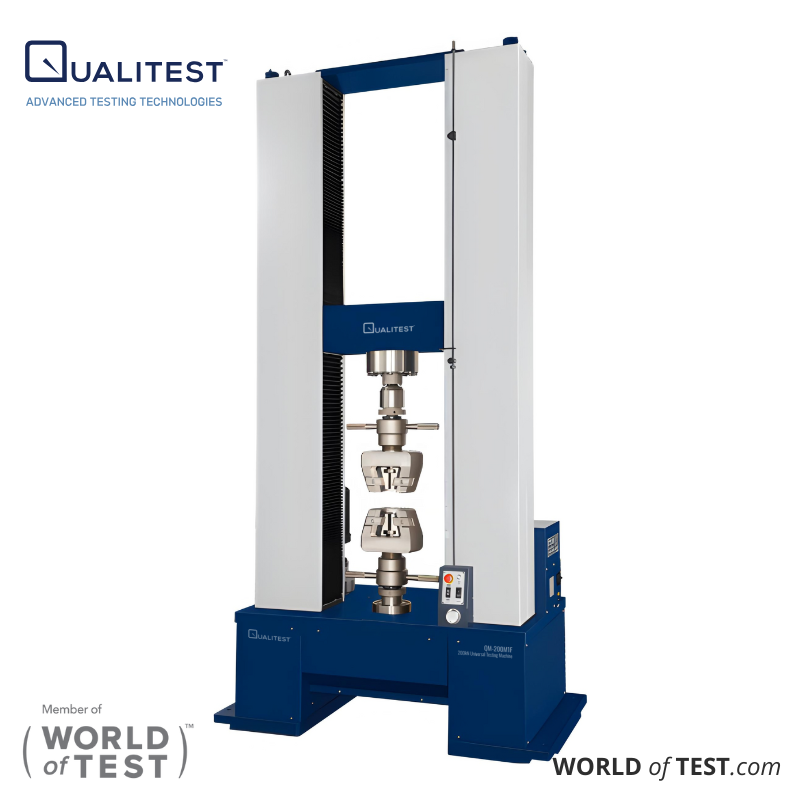

600kN Universal Testing Machine QM-600M2F
Universal Testing Machine QM-600M2F is capable of conducting material and product tests with a maximum capacity of 600 kN. It is equipped with a servo motor, a precise transmission system, and an advanced M2F controller system.
The UTM can perform creep, constant compression, cycle, and multi-step test modes, conforming to various tensile, compression, bending, peeling, and compression tests.
This series of tensile testing machines adopts a high-torque servo motor to support its movement and motive power. To reduce maintenance issues, the machine features high rigidity and strength in its construction. It provides users with a quiet testing environment and high-precision test results. This series is suitable for metals, composites, construction materials, and other materials requiring high test force.
All universal tensile testing machines in this series are equipped with a jog controller for precise positioning and up/down movement to prevent overload during load cell calibration. The optional display supports stand-alone operation for simple tests.
Accessories
| Display Panel |
|---|
- 7" color touch TFT display panel.
- Supports English and other languages.
- Displays force, pressure, displacement, and time.
- Test condition settings include test speed, direction, auto-return, and stop at the break point.
- Analyzes maximum force, interval force, force at break point, and more.
- Provides multiple stopping point settings: force, displacement, time, and elongation.
- Supports over-travel, overload, and overtime stop protection settings.
- Can save up to 50 test results; supports USB storage.
- Option to restore the machine to factory settings.
- Stand-alone mode calibration available.
- Supports switching between Metric and Imperial units.
|  |
| QM-L-Ext Long Extensometer |
| QM-L-Ext Long Extensometer is ideal for measuring elongations greater than 20% in materials such as rubber, plastic, PE, fabric, and webbing. These high-elongation measurement accessories are typically used with dumbbell-shaped specimens. The extensometer can connect with the testing machine to automatically detect the deformation of the test piece during testing. |  |
| QM-S-Ext Clip-on Extensometer |
| QM-S-Ext Clip-on Extensometer is designed to measure the deformation of metals and hard plastics with less than 100% elongation. During testing, it can measure the complete deformation rate without needing to be dismantled. For specimens with longer gauge lengths or higher elongation rates, a customized longer extensometer is also available. |  |
Software functions
- Data sampling rate up to 400 Hz.
- Controlled by mouse, keyboard, and the up/down button on the machine for quick grip position adjustment.
- Requires Windows system.
- Available languages: English and other languages.
- Operation Mode: TCP/IP two-way transmission to connect with PC.
- Can import and display multiple test data simultaneously.
- Supports switching between Metric and Imperial units.
- Provides a flexible table for data analysis.
- Allows naming data results and creating user-defined formulas.
- Data can be displayed in table, graph, or both.
- Data processing capabilities: save, import, list, statistical comparison, etc.
- Adjustable X-Y axis on the graph, including curve marks, interval marks, slope, etc.
- Supports tensile, compression, bending, spring, and other tests.
- Machine protection features: over-travel, overload, and overtime stop conditions.
- Supports various test patterns such as constant tensile (compression) and 10-stage settings.
- Specimen modular design for easy and quick specimen information setting.
- Test condition modular design to reduce human error.
- Supports upper and lower limits for data selection to access key information.
- Multiple I/O ports for additional test functions.
|  |
