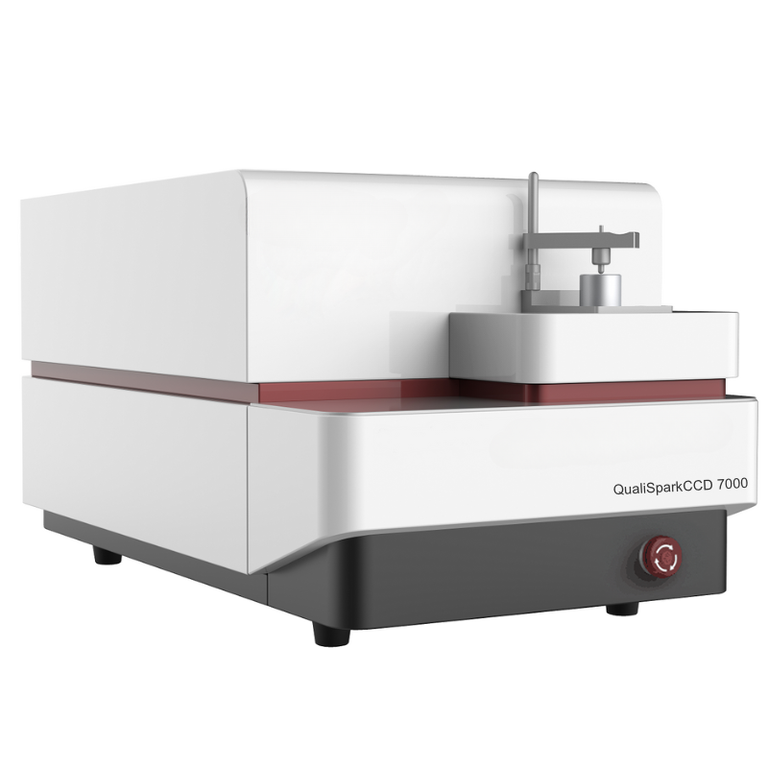

OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000

OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000 Technical specifications and advantages

Optical System Features:

• Utilizes the Paschen-Runge mounting for precise optical alignment.
• Incorporates a high luminous holographic grating with a focal length of 500mm and 2700 grooves/mm, enabling a broad spectral line range of 130-800 nm and the analysis of elements such as N, Li, Na, and K.
• Offers impressive dispersive power with a first-order dispersive rate of 0.74nm/mm and a second-order dispersive rate of 0.37nm/mm.
• Achieves outstanding resolution at 0.005926nm.
• Features a detector equipped with multiple CCDs, allowing for analysis without testing channel limitations.
• Adopts a brand new cast optical chamber with an extremely low thermal expansion coefficient, ensuring high instrument stability.
• Maintains a constant temperature system with temperature control accuracy of ±0.1°C.
• Comes up with a rapid startup times, with the cold machine starting in just 30 minutes after a 12-hour shutdown and the hot machine starting in only 5 minutes.

CCD Detector Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000:

• Equipped with a high-resolution CCD detector featuring 3648 pixels per chip.
• Each pixel has a remarkably small size of only 8μm, ensuring precise and detailed data acquisition.

New Monitoring System:

• Features a brand new system for monitoring the instrument's status, providing real-time updates on instrument status and work progress. This information is conveniently displayed at the bottom of the software interface.
• The system offers an intuitive and straightforward operation, making it simple and quick to use, while also being easy to maintain and debug.

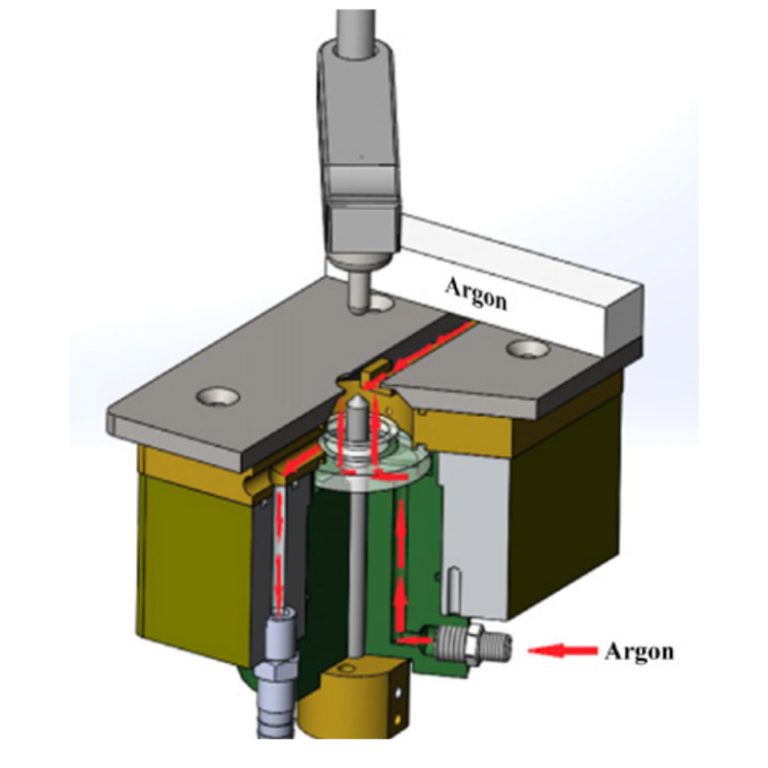

Spark Stand Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000: The spark stand is designed to accommodate samples with a maximum weight of up to 50kg, allowing for the analysis of larger and heavier samples. It features a newly designed coaxial spark stand with an optimized internal gas circuit, resulting in significantly reduced argon consumption, which is not only cost-effective but also environmentally friendly. The spark stand includes a self-purging function that effectively maintains the cleanliness of the cavity, ensuring consistent and accurate analysis. The discharge chamber is specially designed to ensure that discharges occur under optimal conditions, promoting precise and reliable results for your analytical needs.

Spark Excitation Source Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000: Discharge parameters are safeguarded by password protection, ensuring the integrity and security of your analytical settings. The spark excitation source offers the flexibility of continuously adjustable light source frequencies, energy levels, and various other parameters, allowing for precise customization to meet your specific analytical requirements. It supports a maximum discharge frequency of up to 1000Hz, enabling rapid and high-frequency analysis when needed. Features a Mean Time Between Failures (MTBF) exceeding 5000 hours, ensuring robust and reliable performance over extended periods of operation.
Integral Acquisition Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000: Utilizes NET-based port data acquisition for reliable data transmission with minimal configuration, streamlining the setup process. Uses multi-thread data acquisition to bolster the software's stability and enhance data reliability. This feature optimizes data collection and processing, resulting in more consistent and precise results during analysis.
Argon Gas Consumption Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000: Utilizes a programmable argon-flushed system with a swift argon-flushing process and minimal consumption, optimizing the use of argon gas. Features a brand new argon gas utilization system designed for efficiency and cost-effectiveness. Features an ultra-low standby flow rate of 60ml/min, enabling a single bottle of argon to be used for up to 70 days during continuous 24-hour standby operation. This remarkable efficiency contributes to cost savings and uninterrupted analytical processes.

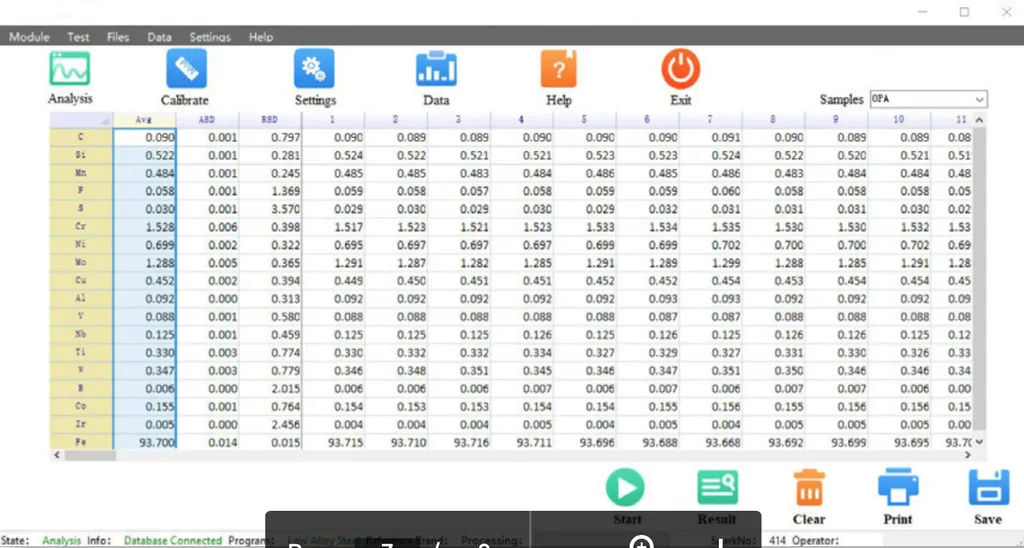

Analysis Software Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000:

• The software enables the calculation of the same elements in different matrices using distinct curves, providing versatility in analytical applications.
• It is a user-friendly, multi-language software that ensures accessibility and ease of operation for a diverse user base.
• Includes self-developed burden proportioning software, which automates the generation of burden proportioning plans based on testing results. This feature streamlines the analytical process, saving time and enhancing accuracy.
• Offers material identification capabilities, allowing for the automatic calculation of functions like carbon equivalent, aiding in comprehensive material analysis.

Communication Device Features of the OES Optical Emission Spectrometer - Full-Spectrum Spark OES QualiSparkCCD 7000:

• Offers a wide range of communication modes to cater to diverse user requirements, ensuring flexibility in data transmission.
• Facilitates data transmission to remote terminals or printers, supporting online analysis, remote monitoring, diagnostics, and maintenance. This feature enables seamless and efficient management of the instrument's performance and data analysis from remote locations.

Basic Parameters of the Instrument:
