Optical Emission Spectrometry: Theory and Method
Getting a handle on the hard science is the essential ingredient for making sure your testing facility's results hit the target every time. Here at Qualitest, we build our entire QualiSpark™ series and every high-grade optical emission spectrometer using the solid, time-tested rules of optical emission spectroscopy.
Essentially, we catch the tiny flashes of light coming off hyper-active atoms to figure out exactly what elements are hiding in your mixture and how much of them are actually tucked inside.
The way an OES setup pulls this off comes down to a four-part process that is pure technical brilliance:
- Vaporization: You take your material and place it on our highly versatile spark table. Using a full digital solid-state spark source, the system blasts the sample with high-voltage electrical zaps. This controlled discharge instantly turns that solid sample into a drifting cloud of vaporized atoms.
- Excitation: The massive energy from the spark source, which can hit blazing discharge frequencies of up to 1000Hz, kicks the electrons in those vaporized atoms into a total frenzy. It bumps them up to unstable energy levels that are way too high for them to stay put.
- Emission: As those frantic electrons calm down and drop back to where they belong, they spit out little packets of light. This is where the real clarity shows up.
- Quantification: Since every element on the periodic table has its own personal light signature, the spectrometer can spot them instantly. By scanning a massive wavelength range from 120 to 800 nm, the hardware spots every single element, and the brightness of that light tells you exactly how much of the material is hidden in the sample.
Plasma Diagnostics and Thermal Control
The mood of the spark plasma changes how sensitive the test is. By locking down a constant temperature system (with absolute control accuracy right down to ±0.1°C) and using a cyclic annular pattern of argon gas, we ensure the atoms follow a predictable, stable pattern.
This guarantees a super clear read and perfectly consistent excitation, making sure your results are spot-on even during heavy, continuous testing.
Technical Architecture of the QualiSpark™ Series
To catch those light beams with incredible accuracy, today's OES spectrometers are packed with a handful of specialized components that work together like a dream:
| System Component | Functional Role | Technical Specifications |
|---|
| Sample Delivery | Preps your material so the hardware can handle it. | Uses heavy-duty copper-base spark tables for easy cleaning, complete with custom fittings to handle samples of any shape. |
| Excitation Source | Supplies the heavy-duty energy needed to wake up the atoms. | Uses adjustable, high-frequency electrical spark discharges powered by ultra-reliable tungsten electrodes. |
| Optical Sorter | Peels apart the messy light into clear, distinct colors. | Uses super luminescent holographic gratings (up to 2,400 grooves/mm) for insane resolution, peeling apart wavelengths down to 0.005926nm. |
| Detection System | Watches for every tiny flash of light. | Uses high-sensitivity PMTs or advanced CCDs featuring massive arrays of 3648 pixels per chip at a microscopic 8μm size. |
Analytical Methods and Applications
The raw light data that OES spectrometers pick up has to be turned into numbers that actually make sense for your business. Depending on what you’re trying to build or verify, the way we do this changes to fit your specific needs:

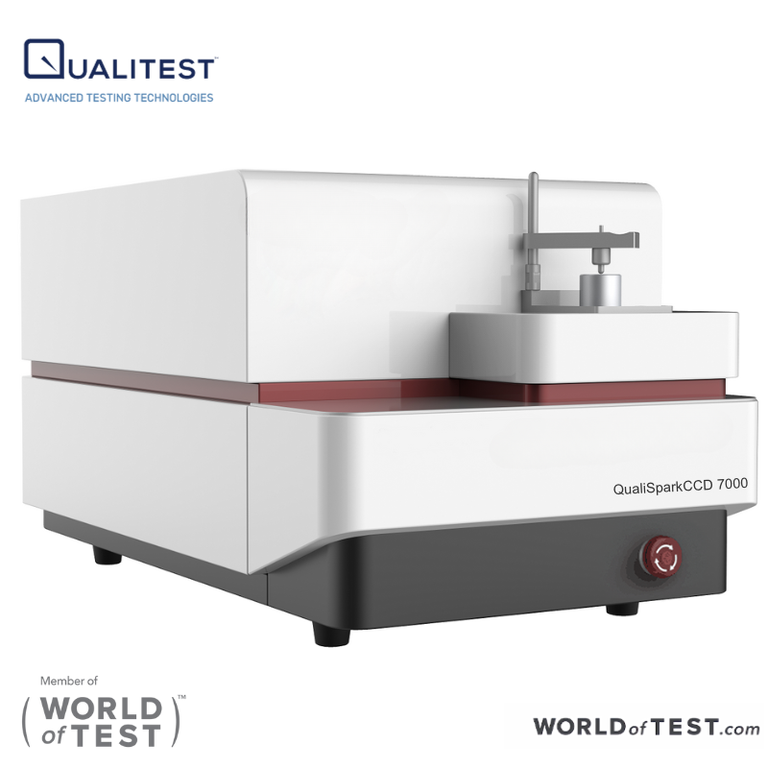

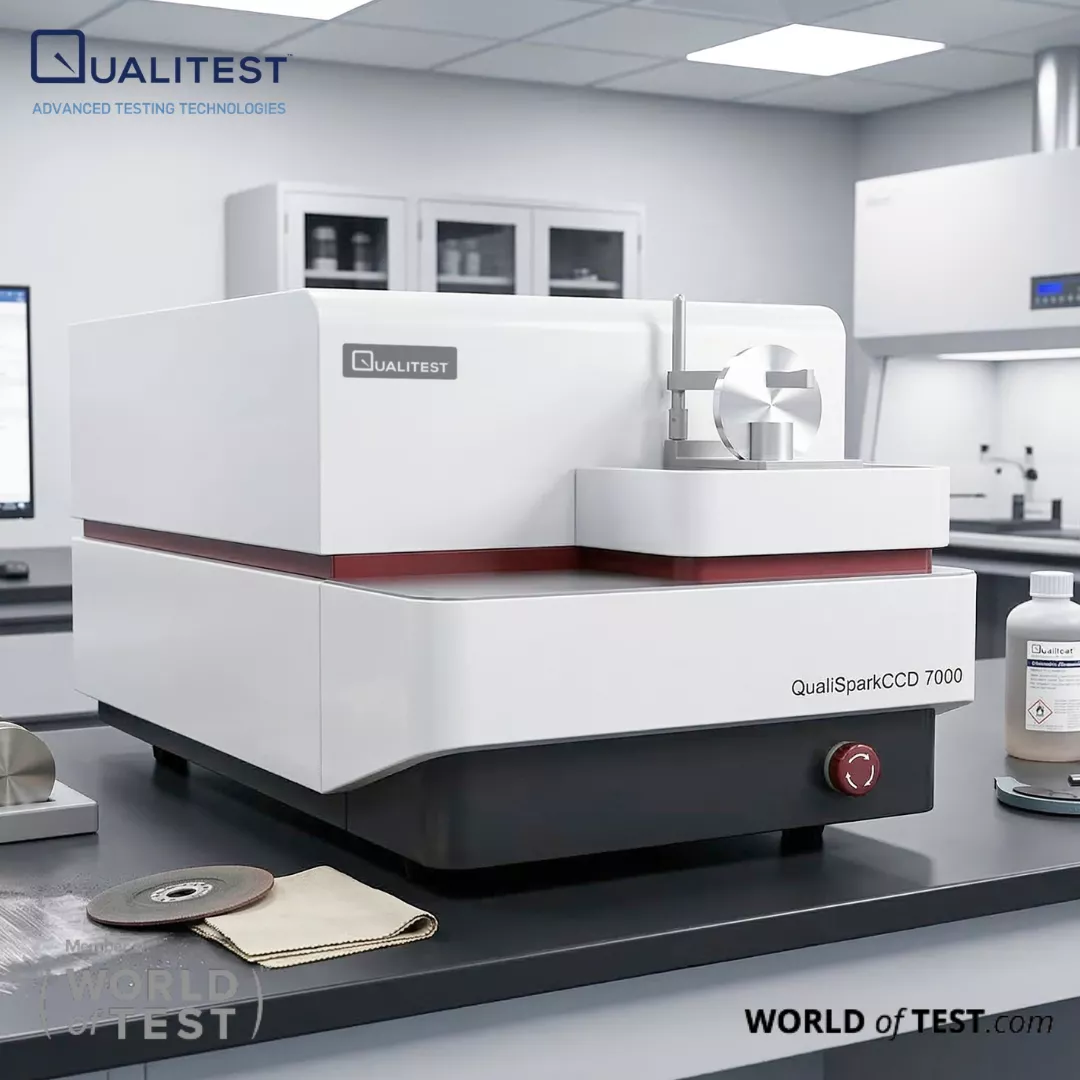

- Production Process Control: By hitting metal chunks with a massive, adjustable electrical zap, this method gets things moving immediately. It is the top choice for metal shops who need to sort alloys without any guesswork. That’s exactly why we built the QualiSpark™ 1000 and the full-spectrum QualiSparkCCD™ 7000, which handle non-stop process monitoring and final lab checks with rapid startup times as fast as 5 minutes.
- Mobile On-Site Analysis: Sometimes the metal is just too big to drag into the lab. For massive, hard-to-move materials, our QualiOES M mobile spark unit brings that exact same lab-level accuracy straight to the job site.
- Fluid and Trace Testing: While our spark systems dominate the metal world, OES theory easily adapts to fluid setups. Whether you are running elemental checks on lubricating oils, transmission fluids, hydraulic fuels, or unknown compounds, the core science lets you easily spot tiny amounts of stray material.
- Chemistry Verification: When you need insane speed and spot-on accuracy for your daily quality checks, the QualiSpark™ CMOS steps up. It uses a top-of-the-line detection setup to verify metal chemistry in an absolute flash.
By leaning on this hard-hitting science of light, Qualitest’s lineup of OES spectrometers mix custom heat sources, ultra-low argon consumption (using just 60ml/min on standby), and top-shelf light paths. Whether you're hauling a portable unit out to a massive pipeline or running a benchtop system for final factory inspection, you get a solid, world-class tool that gives you the absolute final word on your most intense jobs.
