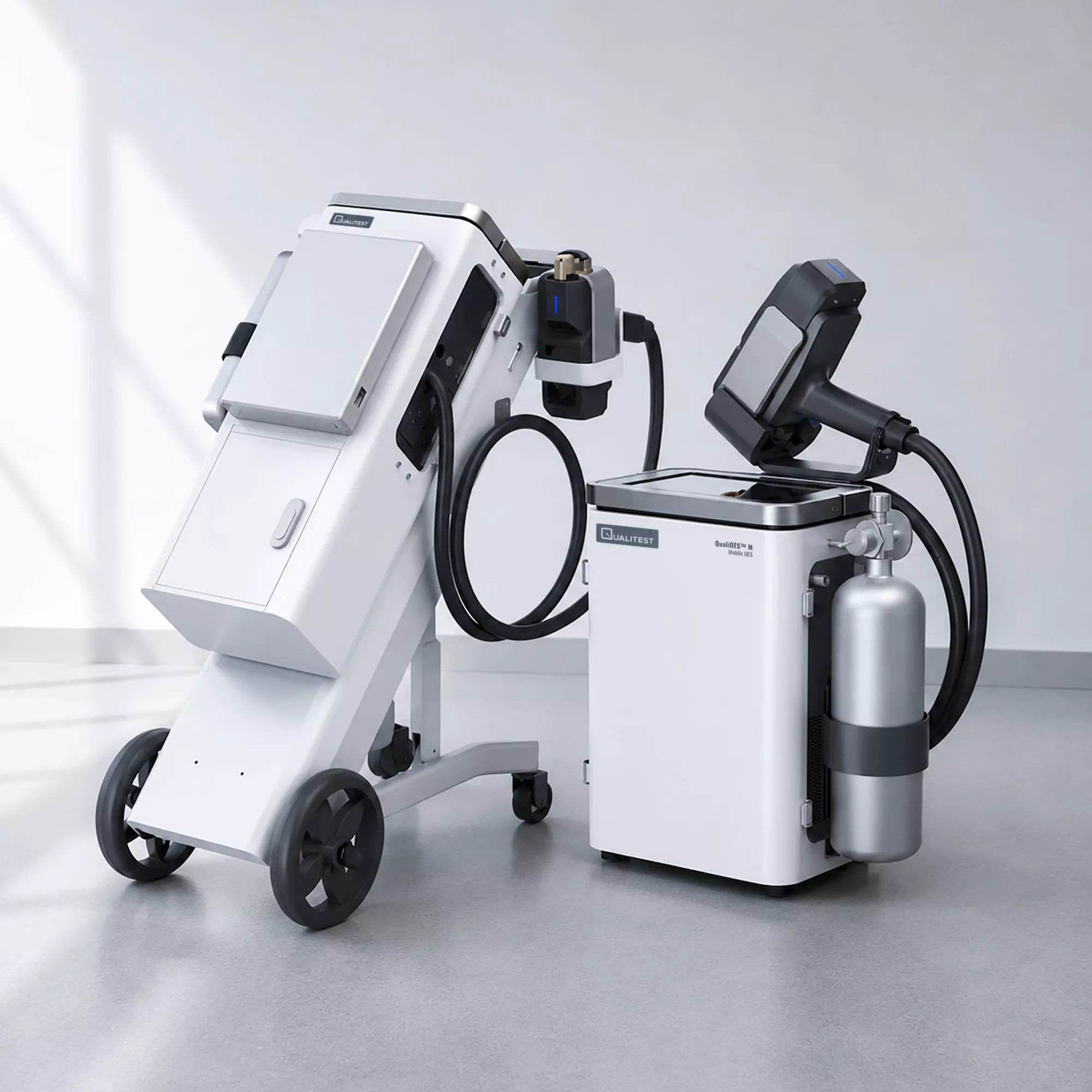

Mobile OES – QualiOES™ M

QualiOES™ M is a portable spark optical emission spectrometer (Spark OES) purpose-built for high-speed, on-site metal testing. It bridges the gap between lab-grade accuracy and field practicality, making it the ideal solution for analyzing oversized components or materials that cannot be moved to a traditional laboratory.

The system features a modular design consisting of a portable spectrometer unit and an excitation gun, all mounted on a rugged trolley for easy transport across shop floors or industrial sites.Built on a Paschen–Runge optical platform, it utilizes digital plasma spark technology to ensure consistent, high-precision results.It provides stable, multi-element chemistry verification for a wide range of industrial metals, including:

  • Carbon and alloy steels
  • Stainless steels
  • Aluminum alloys

Mobile OES – QualiOES™ M Application

  • Incoming material verification and PMI: Mobile OES supports positive material identification when heat numbers, MTRs, or tags cannot be trusted. This helps prevent alloy mix-ups before machining, welding, or heat treatment. It is commonly used for sorting scrap, verifying supplier deliveries, and preventing wrong-material incidents.
  • Weld QA, fabrication, and maintenance inspection: OES enables alloy verification on components already installed or too large to move. That supports on-site inspection of pipelines, structural steel, tanks, and maintenance parts. Results help confirm alloy chemistry before repair or joining steps.
  • Foundry and metal production control: Production teams can spot-check chemistry and confirm whether material meets target composition. Quick feedback helps reduce rework and supports controlled material flow between stages. It also supports audit-style verification during production changes.
  • High-altitude and outdoor testing: The system is positioned for field environments where fixed-lab systems are not practical. A ruggedized optical system design and trolley mobility help keep operation stable outside traditional labs. Battery operation supports sites without reliable power access.
Mobile OES – QualiOES™ M

Standards

Mobile OES programs often align with ASTM methods based on base metal type, plus a lab-quality framework for traceability.

  • ASTM E415 – Spark OES analysis of carbon and low-alloy steels.
  • ASTM E1086 – Spark OES analysis of austenitic stainless steels.
  • ASTM E1251 – Spark OES analysis of aluminum and aluminum alloys.
  • Supports ISO/IEC 17025 labs with traceable calibration and QC workflows.

Mobile OES – QualiOES™ M Key Features

  • Mobile, trolley-based OES system designed for large parts and on-site testing where lab systems are not practical.
  • Battery operation designed to support hundreds of excitations per charge for field workflows.
  • Paschen–Runge optical structure with a thermostatic optical chamber for stable results and reduced maintenance.
  • Effective wavelength range: 170–670 nm with an argon-flushed UV system for low-wavelength determination.
  • HEPS high-energy pre-spark digital plasma spark source designed to improve discharge stability and analytical consistency.
  • Spark source control range listed at 100–1000 Hz frequency and 1–400 A current with argon line and valve control.
  • Open sample stage design intended to accommodate large samples, with an excitation aperture listed at ≤10 mm.
  • High-speed processing using an ARM-based processing platform for faster synchronization and analysis completion.
  • ICAL intelligent calibration function designed to reduce recalibration needs when location or temperature changes.
  • APF expansion software for automatic grade identification of unknown metals to speed sorting decisions.
  • Equipped with ACP software for easy calibration, allowing for fast and versatile analysis across various specimen types.
  • Connectivity via USB and network interfaces, supporting printer connection and data upload.
  • Software diagnostics for light source status, argon pressure, module temperature, optical chamber temperature, and communication status.

Complete Set

  • QualiOES™ M Optical Emission Spectrometer Main Unit (1 pc) Houses the optical system, spark source control, processing computer, and the main user interface for OES testing.
  • Excitation Gun (1 pc)
    Mobile OES – QualiOES™ M
    The mobile spark head used to excite the sample surface and collect emission light for OES analysis on large or fixed components.
  • Wireless Mouse (1 pc) Supports easy navigation and data entry during OES testing.
  • Wireless Keyboard (1 pc) Helps operators enter IDs, heat numbers, and report notes quickly on-site.
  • Trolley (1 pc)
    Mobile OES – QualiOES™ M
    Provides mobility, mounting, and storage for field OES work. It also supports safe handling of accessories and cable routing.
  • Battery (1 pc) Enables battery operation for sites where stable AC power is not available.
  • Analytical Programs (1 pc) The installed OES method packages and calibration programs used for chemical analysis, alloy ID, and pass/fail sorting.
  • Standard Calibration Sample (1 pc) Used for calibration/standardization checks to keep OES results consistent over time.
  • Gas Pipeline and Connector (1 pc) Connects argon supply to the instrument to support stable sparking and UV measurement performance.
  • Argon Pressure Regulator and Connector (1 pc) Controls argon output pressure at the required range for OES operation.
  • Power Cord (1 pc) Supports AC-powered operation and charging.
  • User Manual (1 pc) Operation, safety, maintenance guidance for daily OES use.
  • Software (1 pc) Runs analysis, alloy identification, verification, and report workflows on the OES system.
  • Qualification Certificate (1 pc) Confirms factory qualification documentation included with delivery.
  • Packing List (1 pc) Confirms shipment contents for receiving and internal asset control.
  • Tools and Consumable Spares List (1 pc) Lists the included maintenance tools and consumables used for routine upkeep.
  • Warranty Card (1 pc) Warranty reference for support and service.
  • Installation, Acceptance and Delivery Sheet (1 pc) Supports installation acceptance and commissioning handover documentation.

Theory and Method

OES works by creating a controlled spark on the metal surface. The spark excites atoms in the sample, producing light at characteristic wavelengths for each element. The optical system disperses that light across a detector, and software converts intensities into concentrations using calibration curves.

QualiOES™ M uses a Paschen–Runge optical structure and a digital spark source with argon flushing for UV lines. This helps measure alloying and residual elements used for grade confirmation and pass/fail sorting.

Mobile OES – QualiOES™ M Technical Specification

Optical System

ItemSpecification
Optical structurePaschen–Runge structure
Rowland circle diameter≥ 300 mm
Effective wavelength range170–670 nm
Grating ruling3600 l/mm
Spectral line dispersion1.2 nm/mm
DetectorMultiple high-performance CCD linear arrays
Optical chamber temperature control34°C ± 0.1°C
Grating (core component)Carl Zeiss grating (as listed)

Excitation Source

ItemSpecification
Spark sourceFull-digital plasma spark source
Frequency100–1000 Hz
Current1–400 A
HEPSHigh energy pre-spark
Argon-flushed UV systemFor determination of (C), P, S, Sn, As, B and additional elements
Usable UV wavelength range174–196 nm
Sample stageOpen design for large-sized samples
Excitation stage aperture≤ 10 mm

Readout and Software

ItemSpecification
ComputerMobile CPU, 2G RAM, 128G SSD
Operating systemWindows 10
DisplayIntegrated 10.4-inch high-resolution TFT
Software functionsDiagnostics + ACP, analysis, alloy ID/verification, APF, pass/fail sorting/display

Electrical, Dimensions, Weight

ItemSpecification
Input power90–230 V, 50/60 Hz
Power consumption300 W during sparking; 100 W standby
Fuse16 A slow-blow
Total dimensionsL 125 cm × W 27 cm × H 48 cm
Main unit dimensionsL 31 cm × W 21 cm × H 48 cm
WeightMain unit 18.5 kg; trolley 38.5 kg
Battery operationSupported

Installation Requirements

ItemSpecification
Power supplyAC 100–240 VAC, single-phase, three-wire, 50/60 Hz, 16 A
Argon purity99.999%
Argon output pressure≥ 0.5 MPa
Environment0–35°C; RH 20–80% non-condensing; avoid strong airflow and direct sunlight
Sample prepThe surface must be ground to clean metallic finish prior to analysis.

Configuration List

  • QualiOES™ M OES main unit (QualiOES™ M platform)
  • Excitation gun
  • Wireless mouse
  • Wireless keyboard
  • Trolley
  • Battery
  • Analytical programs
  • Standard calibration sample
  • Gas pipeline and connector
  • Argon pressure regulator and connector
  • Power cord
  • User manual
  • Software
  • Qualification certificate
  • Packing list
  • Tools and consumable spares list
  • Warranty card
  • Installation, acceptance, and delivery sheet

Tools and Consumables List

  • Electrode cleaning brush (4 mm) ×2
  • O-rings ×2
  • Fuse (250 V 5 A) ×1
  • Tweezer ×1
  • Bull socket (large) ×2
  • Waste filter can fittings ×4
  • Waste filter cartridge ×1
  • Waste filter tube ×2
  • Dust cover ×2
  • Absorbent cotton ×2
