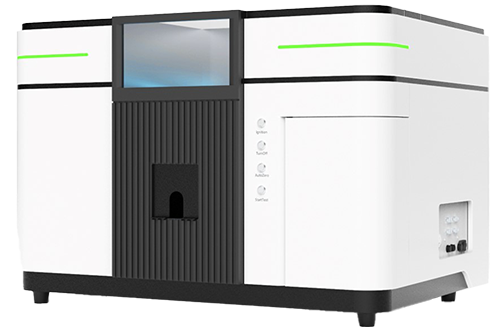

AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series

AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series
Parent Product
QT-AAS Series AAS Atomic Absorption Spectrophotometer

AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series is a cutting-edge solution for your analytical needs. Controlled entirely by PC, it features a modern and compact design with customizable configurations and a variety of accessories to meet your specific requirements. The advanced optical system ensures unwavering stability and reliable performance. What sets it apart is the unique and intelligent gas control module that guarantees the safety of the device.

AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series

AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series excels in diverse applications such as petrochemistry, metallurgy, mining, geology, material analysis, food, and pharmacy. Elevate your analytical capabilities with this state-of-the-art instrument, ensuring accurate and reliable results.

  • Total Reflection Optical System
  • Background Correction
  • Automatic Pneumatic Control Module
  • Automatic Vertical 4/8-Lamp Turret
  • Modular Design
  • User-Friendly Software
  • Transversely Heated Graphite Tube
  • Safety Protection System
AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series



AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series

Key Features:

  1. Total Reflection Optical System: This feature reduces energy loss, ensuring an exceptional signal-to-noise ratio and lower detection limits.
  2. Background Correction: Standard deuterium lamp background correction is available for all models. Double beam models come with high-performance self-absorption background correction as standard, with the option available for models equipped with an 8-lamp turret.
  3. Automatic Pneumatic Control Module: This feature enhances device safety and accuracy, providing better protection for both operators and the device.
  4. Automatic Vertical 4/8-Lamp Turret: The turret supports high-performance element lamps and offers 360-degree rotation, ensuring that test accuracy and reliability remain unaffected by gravity.
  5. Modular Design: The optical system and circuit feature a modular design, making maintenance and repair a straightforward process.
  6. User-Friendly Software: Operate the AAS with ease using the RGWIN AAS software under the MS Windows system, which offers professional, automatic, and user-friendly functionality, along with QA/QC capabilities.
  7. Transversely Heated Graphite Tube: This innovative feature ensures consistent gas temperature in the graphite tube, rapidly reaching atomic temperature and enhancing atomic efficiency and test accuracy. This ensures more accurate analysis results, reduces furnace body requirements, and prolongs the lifetime of the equipment.
  8. Safety Protection System: The safety protection system includes pressure monitoring to prevent the graphite furnace from working if argon pressure is too high or too low. Additionally, there's graphite tube installation self-inspection.

AAS Atomic Absorption Spectrophotometer - QT-AAS30 Series Specifications

Model

QT-AA3014

QT-AA3018

Optical System

Optical Type

Single beam

Single beam

Monochromator

Czerny-Turner type with focal lengths at 350mm

Wavelength Range

190-900nm

Grating

Holographic diffraction grating with 1800 lines/mm

Slits

Automated slit selection 0.1, 0.2, 0.4, 0.7, 1.4, 2.0 nm

Wavelength Accuracy

±0.3 nm

±0.2 nm

Wavelength Repeatability

±0.1nm

±0.1nm

Lamp

Automated 4-lamp turret

Automated 8-lamp turret

Detector

Wide range UV sensitive photomultiplier tube

Photometric

Performance

Reading Mode

Transmittance(T), Absorbance(A), Concentration(C)

Photometric Range

0-125%, -0.1-3.00A

Static Baseline Drift (Cu)

≤0.004A/30 min

≤0.003A/30 min

Dynamic Baseline Drift (Cu)

≤0.006A/15 min

≤0.005A/15 min

Background Correction

Deuterium (D2) Background Correction

Graphite

Furnace

Analysis

Characteristic Concentration

Cd≤0.9pg , Cu≤20pg

Cd≤0.9pg , Cu≤20pg

Detection Limit

Cd≤1.5pg , Cu≤25pg

Cd≤1.5pg , Cu≤25pg

Repeatability (Cu)

RSD≤4%

RSD≤4%

Temperature Range

Ambient -3000℃

Ambient -3000℃

Ramp and holding time

1-255s

1-255s

Heating Rate

Maximum linear heating rate 2000℃/s

Atomization Heating Method

Light-controlled heating, Time-controlled heating, General heating

Gas Flow Rate Inside Tube

1 L/min

Gas Flow Rate Outside Tube

4-speed adjustable (0, 50, 200, 250ml/min)

Safety Protection

Water flow sensor, Argon pressure sensor, Furnace body temperature sensor, Graphite tube installation self-inspection.

Data Processing

Software

RGWIN AAS software package

Analytical Method

Flame AA, Flame AE, Hydride Generation

Concentration Calculation

Method

Standard curve(6 linear/non-linear fitting), Standard Addition, Interpolation

Repeated Measurement Times

1-30 times, calculate the average, show SD and RSD value of absorbance and concentration

QA/QC Function

Correlation coefficient, SD & RSD of Abs and calculate SD & RSD of concentration

Report Printing

Parameter printing, resulting printing

Communication Port

Standard RS-232

Others

Computer

External(excluded)

Dimension & Weight

850*650*550MM(W*D*H), 100Kg

Power Supply

110/220V, 50/60Hz

Working Environment

Temperature 10 ~ 35 °C, Humidity≦85%



Packing List

NO.

Description

Qty

NO.

Description

Qty

1

Main Unit

1

9

Argon pressure reducing valve connector

1

2

Power Cable

1

10

High power socket

1

3

Data Cable

1

11

6*4mm argon tube(transparent)

10m

4

Screw Driver

1

12

5-50ul pipette

1

5

Cd HCL

1

13

200ul pipette tip(1000pc/bag)

1

6

USB(manual and software)

1

14

6*10mm cooling water tube

6m

7

5A fuse

3

15

Graphite furnace camera connection cable

1

8

Graphite tube

5

16
