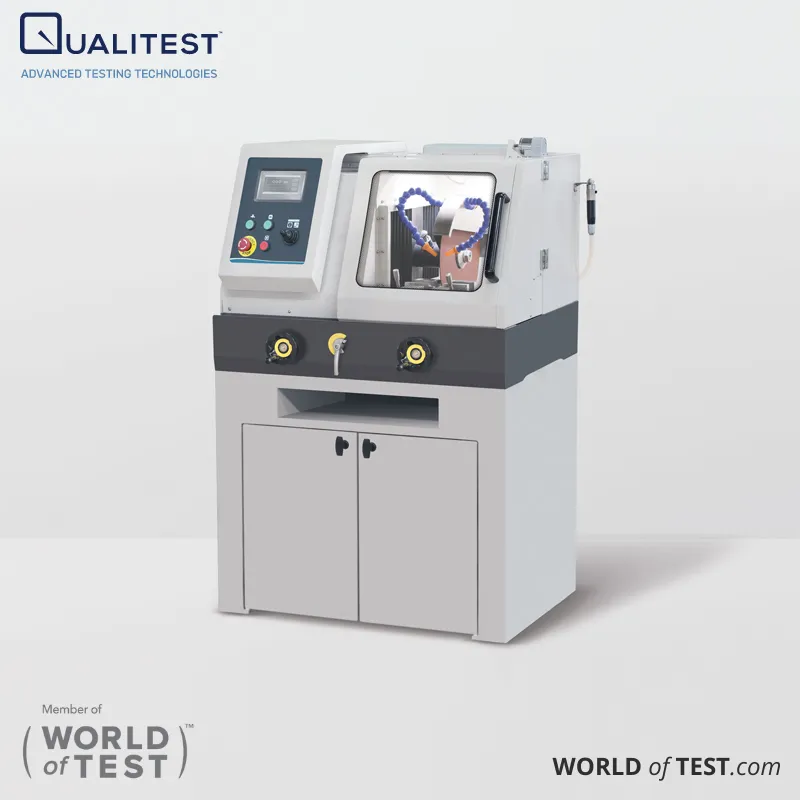

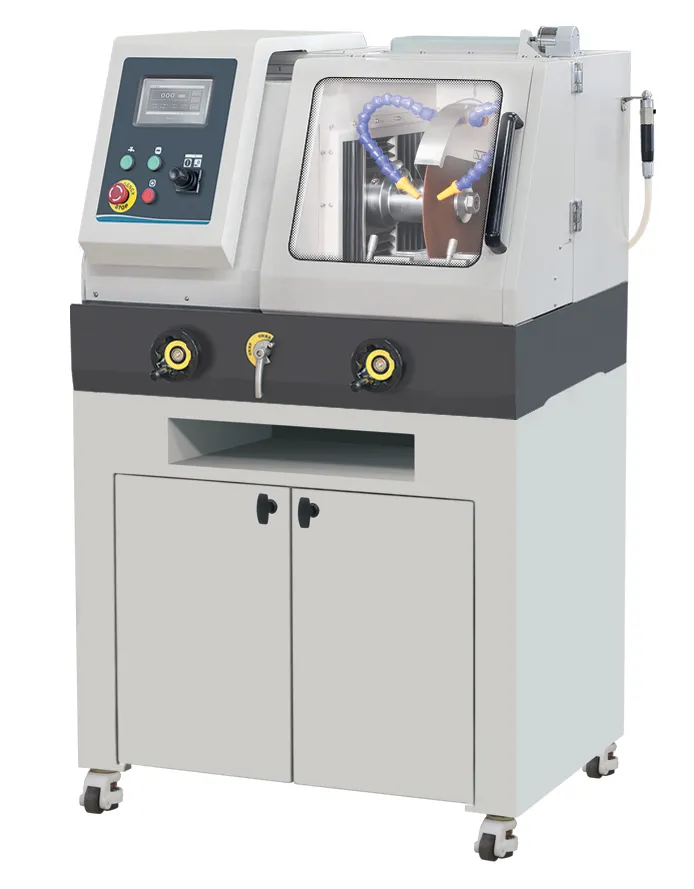

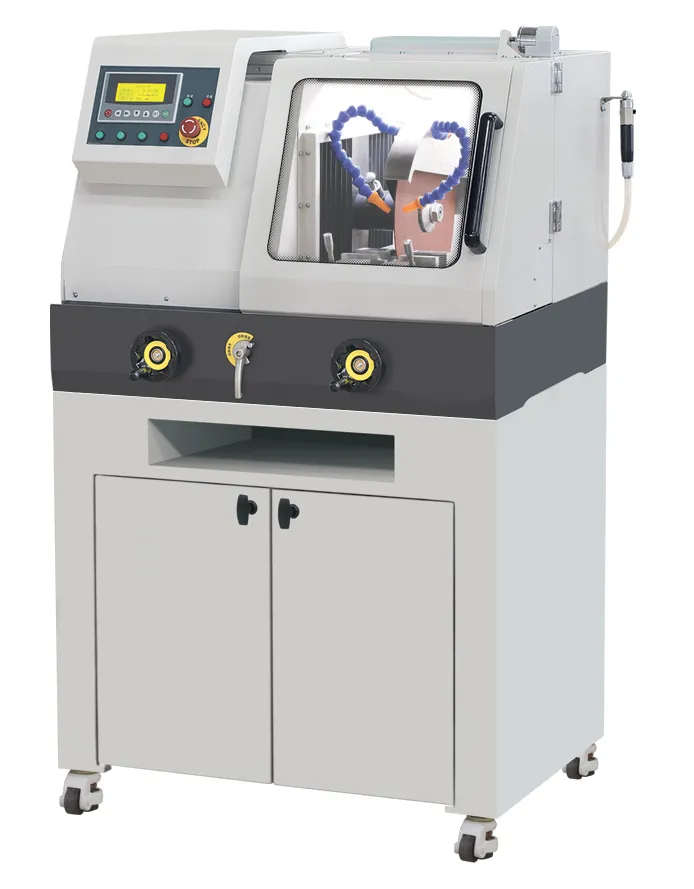

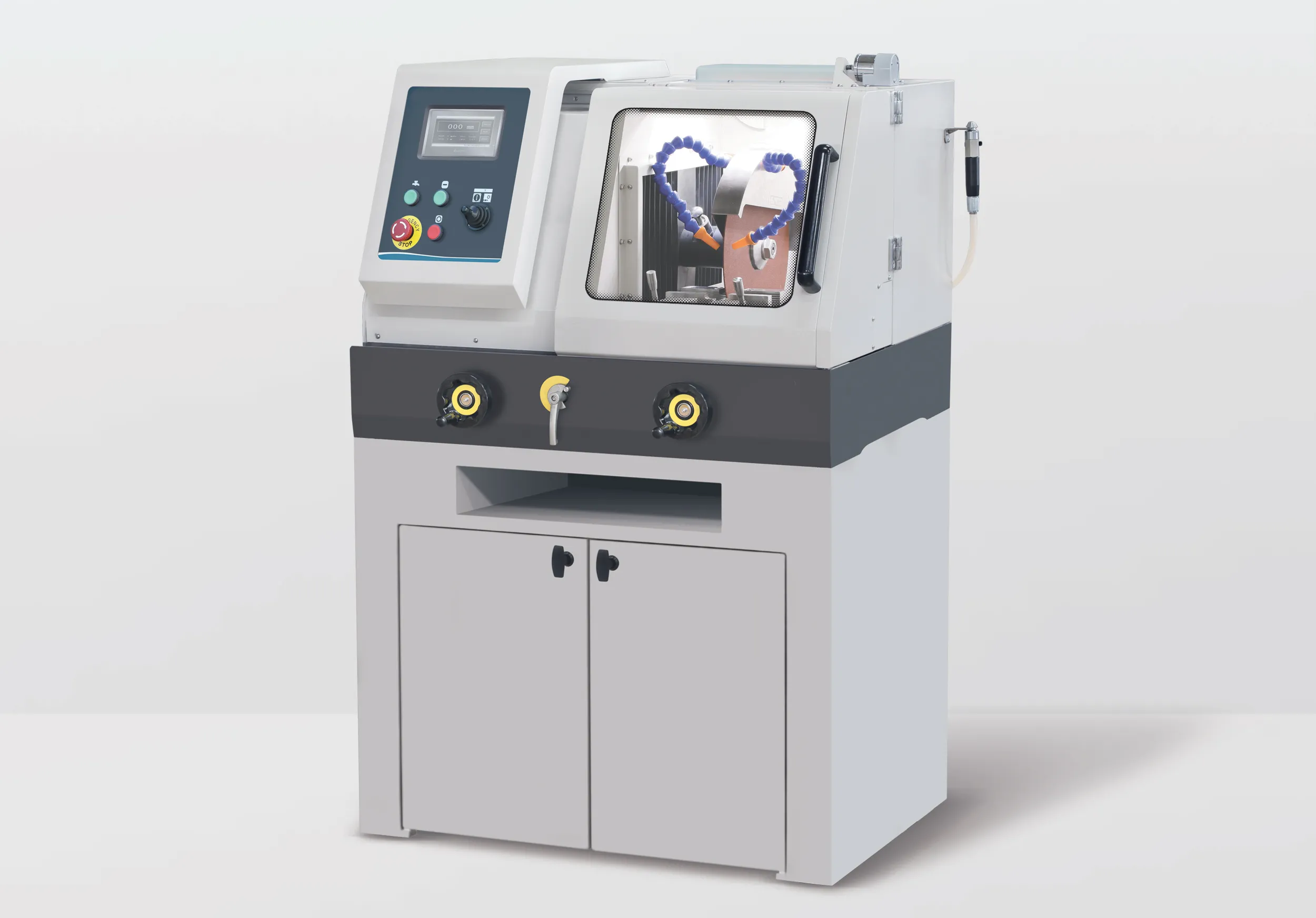

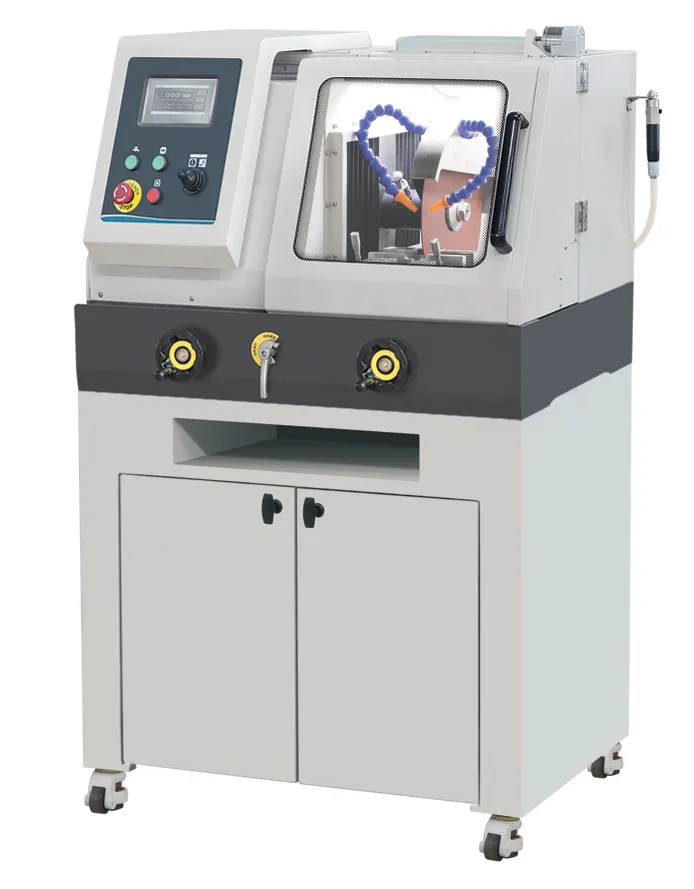

Abrasive Cutting Machine – QualiCut™ 6100H Series

Abrasive Cutting Machine – QualiCut™ 6100H Series Features

QualiCut™ 6100DH Electromagnetic safety lock (patented design) Three cutting modes (pulse, flat push, manual) Stainless steel cutting chamber Maximum cutting diameter 100mm	QualiCut™ 6100ZH Touch screen Electromagnetic safety lock (patented design) Three cutting modes (pulse, flat push, manual) Stainless steel cutting chamber Maximum cutting diameter 100mm	QualiCut™ 6100SH Touch screen Electromagnetic safety lock (patented design) Three cutting modes (pulse, flat push, manual) Stainless steel cutting chamber Maximum cutting diameter 100mm Spindle lift 50mm

1. Electromagnetic Safety Lock (Patented Design)
   The machine cannot start unless the cutting chamber door is closed. During operation, the door cannot be opened, ensuring operator safety at all times.
2. Side Door Access
   The side door of the cutting chamber expands the working space during operation and makes thorough cleaning after cutting much easier.
3. Extended Workpiece Window
   The detachable expansion window allows easy placement and secure fixing of longer workpieces while preventing cutting fluid from splashing out.
4. Hidden Water Tank Cabinet
   The cooling water tank is placed inside a reinforced, threshold-free cabinet to save space. The design allows convenient access without moving the tank, while maintaining strength and minimizing vibration.
5. Extra-Large Transparent Observation Window
   The oversized viewing window allows operators to monitor the cutting process from multiple angles, detect issues quickly, and ensure cutting quality.
6. Side-Pull Cutting Chamber Door
   The side-pull door design makes opening and closing effortless, maximizes workspace, and prevents residual cutting fluid on the door from leaking out.
7. Open Storage Compartment
   An open compartment provides convenient storage for cutting blades, wrenches, and other tools. The doorless design allows quick access, reducing downtime and improving efficiency.
8. Specialized Cutting Disc
   The independently developed metallographic cutting disc delivers superior cutting performance and durability while protecting the motor from overload damage.
