Shear Adhesion Testers for Pressure Sensitive Tapes – QualiTRT™ Series

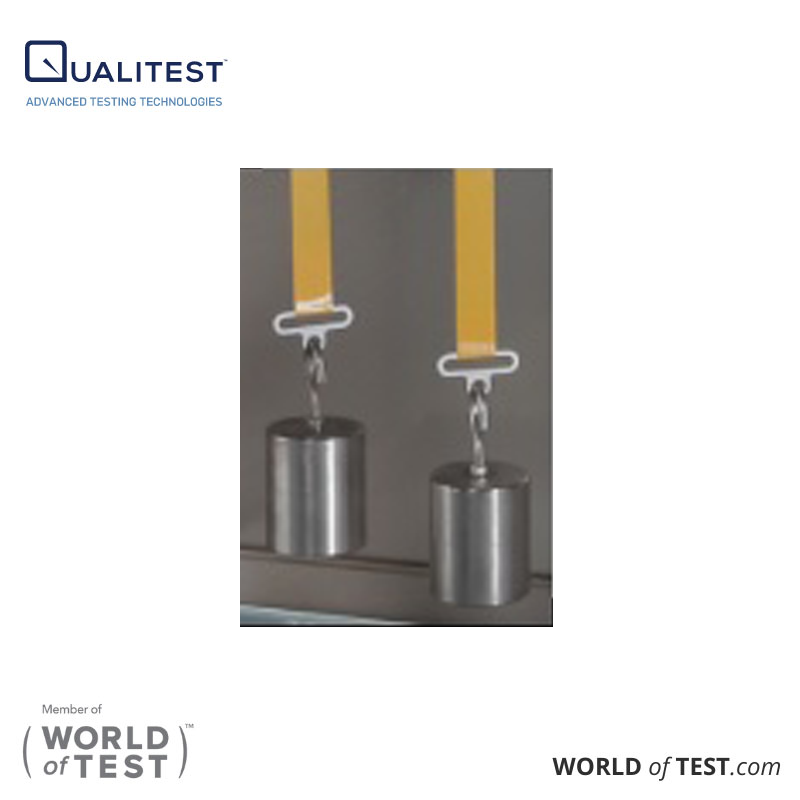

A tape retentivity tester also called a shear adhesion tester or holding power tester measures the time a pressure-sensitive adhesive (PSA) tape can resist sliding (shear) movement under a constant tensile load applied parallel to the bonded surface. In the standard test configuration, a 1-inch-wide tape specimen is applied to a vertical stainless steel panel using a 4.5-pound roller at 300 mm/min (one pass in each direction to ensure consistent contact pressure), then loaded with a defined counterweight hanging from the free end of the tape. The time from load application to tape detachment is the holding power or retentivity value — expressed in minutes or hours. This test is governed by ASTM D3654, PSTC 107, and JIS Z0237 and is a fundamental quality specification for virtually every category of PSA tape, from masking and packaging tapes to foam tapes, automotive attachment tapes, and medical adhesives.

Shear adhesion is distinct from peel adhesion (the force to remove tape at an angle) and initial tack (the immediate bond formed on first contact). Where peel and tack measure instantaneous adhesive response, retentivity quantifies sustained load-bearing performance over time — the property that determines whether a taped assembly holds together in service for hours, days, or months. For high-temperature applications, retentivity must be characterized at elevated temperatures that simulate actual service conditions, since PSA adhesives are viscoelastic and their shear resistance decreases significantly as temperature rises. Qualitest's QualiTRT™ Series addresses this need across three models: the QualiTRT™-D for standard single-specimen ambient testing, the QualiTRT™-ABC for multi-specimen parallel testing of multiple tape formulations or lots simultaneously at ambient temperature, and the QualiTRT™-H for elevated temperature testing within a programmable chamber capable of reaching 200°C — covering automotive paint-bake qualification, HVAC duct tape certification, and aerospace thermal performance testing.

Hold Power. Proven.

Whether your laboratory qualifies automotive tapes for 180°C paint-bake oven exposure, tests industrial masking tape holding power to ASTM D3654, compares three competing adhesive formulations side-by-side in a single test run, or verifies that a medical device attachment tape will remain bonded through sterilization and clinical handling, the QualiTRT™ Series has the instrument for the test. Automatic timer stop, standardized roller application, stainless steel test panels, and full compliance with ASTM D3654, PSTC 107, and JIS Z0237 give you data that is reproducible, defensible, and directly comparable to supplier specifications and industry benchmarks. Contact Qualitest today to speak with an adhesive testing specialist, request a technical datasheet for any QualiTRT™ model, or discuss your specific tape type, service temperature, and test throughput requirements.

Applications in Industries

Adhesive Tape Manufacturing QC

Holding power (shear adhesion) is a primary specification on every PSA tape product. QualiTRT™ testers verify lot-to-lot consistency against internal limits and customer specifications per ASTM D3654 and PSTC 107, ensuring that finished roll goods meet declared shear adhesion values before shipment.

Automotive & Transportation

Automotive masking tapes, wire harness securing tapes, body trim attachment tapes, and paint protection films must maintain adhesion under elevated temperature conditions encountered in paint-bake ovens (up to 160–200°C). The QualiTRT™-H with its 200°C chamber is purpose-built for thermal qualification of automotive PSA tapes.

HVAC, Electrical & Ductwork

Aluminum foil duct tapes, HVAC insulation attachment tapes, and electrical insulation tapes are subject to sustained shear loading and elevated temperature in service. Retentivity testing at both ambient and elevated temperature validates long-term holding performance in these demanding environments.

Aerospace & Defense

Structural and protective PSA tapes for airframe assembly, cable bundling, and surface protection must demonstrate sustained shear adhesion across a wide temperature range. The QualiTRT™-H provides the controlled-temperature test environment required for aerospace tape qualification programs.

Medical & Healthcare Packaging

Sterilization-indicator tapes, wound closure strips, and medical device attachment tapes require verified shear adhesion for patient safety. Retentivity testing confirms that medical PSA tapes remain bonded under the mechanical and thermal loads encountered during sterilization and clinical use.

Packaging, Labeling & General Industry

Carton sealing tapes, label adhesives, and general-purpose industrial tapes are routinely qualified against ASTM D3654 shear hold requirements. The QualiTRT™-ABC’s multi-specimen capacity supports parallel testing of A/B/C product variants or multiple lots in a single test session.

Why Choose Qualitest for Your Tape Retentivity Testing Needs?

✔ Three-Tier Coverage: Ambient to 200°C

The QualiTRT™ Series covers ambient retentivity testing (D and ABC models) through high-temperature qualification up to 200°C (H model) — addressing every PSA tape application from standard packaging and masking tape QC to automotive paint-bake oven and aerospace thermal qualification.

✔ Automatic Timer Stop on Tape Detachment

All three models automatically stop the timer the instant the tape specimen detaches from the stainless steel panel, eliminating operator observation time, removing human timing error, and enabling long-duration tests (hours or days) to run unattended without continuous monitoring.

✔ Multi-Specimen Parallel Testing — QualiTRT™-ABC

The ABC model allows multiple specimens to be loaded simultaneously with independent automatic timers per position, enabling comparison of A, B, and C tape formulations or multiple production lots in a single test session — dramatically improving throughput for incoming inspection and formulation development.

✔ ASTM D3654 / PSTC 107 / JIS Z0237 Compliance

All QualiTRT™ models are engineered to comply with the three primary international standards for PSA tape shear adhesion testing, using stainless steel panels, 4.5 lb application rollers at 300 mm/min, standardized load weights, and 1/2×1” or 1×1” specimen geometries specified in these methods.

✔ Replicated Application Conditions

The 4.5 lb standard roller applied at 300 mm/min (one pass each direction) consistently replicates the application pressure specified in ASTM D3654 across all specimens and all operators — eliminating the variability inherent in manually applied tape specimens and ensuring data reproducibility.

✔ 26+ Years of Adhesive Testing Expertise

Qualitest has been supplying adhesive tape and packaging testing instruments to manufacturers and laboratories across 122+ countries for over 26 years. Our application specialists help you select the right QualiTRT™ model, configure specimen geometry, and interpret test results relative to your product specification.

Product Comparison Table

* All models apply tape per ASTM D3654 using a 4.5 lb roller at 300 mm/min and load with a 2 kg counterweight. Timer stops automatically on specimen detachment. Specimen area: 1/2”×1” or 1”×1” (selectable). Contact Qualitest for full technical specifications and long-duration fixture configurations.
