Advanced Benchtop Freeze Dryer – QualiFD™ B adv Series

An Advanced Benchtop Freeze Dryer in the QualiFD™ B adv Series is a compact Freeze Dryer Machine built for heavier daily sample-prep workloads, with automation and protection functions that support stable long-run operation.

Standard configuration includes a high-performance freeze-drying vacuum pump, intelligent control, automatic cold-trap defrost, an oil mist filter, and automatic air inlet/drain features. QualiFD™ B adv Series uses a modular platform so you can choose a configuration that fits your workflow, such as standard tray drying, vial stoppering, or manifold-assisted drying. The control system supports data visibility and routine documentation through a touchscreen interface and logged process information.

Automatic defrost is available, with electric defrost standard and hot-gas defrost noted as an option. Safety interlocks and protection logic help reduce vacuum system faults and protect the pump and compressor during continuous use.

Advanced Benchtop Freeze Dryer – QualiFD™ B adv Series Applications

  • Laboratory sample preparation for biology and biotech: Labs use a Freeze Dryer to preserve cells, enzymes, and biological specimens for longer storage while supporting later reconstitution. This series supports routine tray-based drying and higher-throughput sample handling when the workload increases.
  • Pharma and formulation work: Vial workflows benefit from the top-press configuration, where vials can be sealed after drying while still under vacuum. That supports longer storage stability and reduces moisture pickup during post-process handling.
  • Chemical synthesis and temperature-sensitive materials: Freeze drying helps remove solvent while avoiding heat-driven degradation that can happen with conventional drying. Manifold configurations also support drying in bottles or wide-mouth containers, depending on your sample format.
  • Microorganism preservation in ampoules: The ampoule tube type is described for preserving microorganisms such as bacteria and fungi, using dedicated tube interfaces. This is useful for culture collections, QC labs, and R&D teams that maintain reference strains.
Advanced Benchtop Freeze Dryer

Standards

  • ISO 13408-3: Aseptic processing guidance for lyophilization
  • ASTM E3250: Best practices for freeze-dryer instrumentation (temperature/pressure measurement focus)
  • IEC 61010-1: Safety requirements for laboratory electrical equipment

Advanced Benchtop Freeze Dryer – QualiFD™ B adv Series Key Features

  • Automatic cold-trap defrosting, with electric defrost standard and hot-gas defrost listed as an option
  • Automatic air inlet and drainage with safety interlock design to reduce vacuum system malfunctions
  • Oil mist filtration to reduce pump oil consumption and limit indoor contamination risk
  • Vacuum pump start protection tied to cold-trap temperature, plus compressor overload protection
  • Flexible vacuum unit switching (Pa, mBar, etc.) and calibration capability for time, temperature, and vacuum pressure
  • Maintenance reminders and alarm functions for safer routine operation
  • Optional modules listed for eutectic point testing, vacuum adjustment, remote monitoring, scheduled start, and automatic self-check
  • Optional AISI 316L cold-trap material and freeze-drying protective film are listed as selectable modules

Theory and Method

Freeze drying removes water by freezing the sample, pulling vacuum, then driving sublimation so ice transitions directly to vapor. Vapor is captured by the cold trap, and stable vacuum helps maintain repeatable primary drying.

Secondary drying continues at controlled conditions to lower residual moisture to your target. Logged temperature and vacuum trends support repeatability checks across runs, which helps in R&D and QC documentation.

Advanced Benchtop Freeze Dryer – QualiFD™ B adv Series Technical Specification

Advanced Benchtop Freeze Dryer – QualiFD™ B adv Series

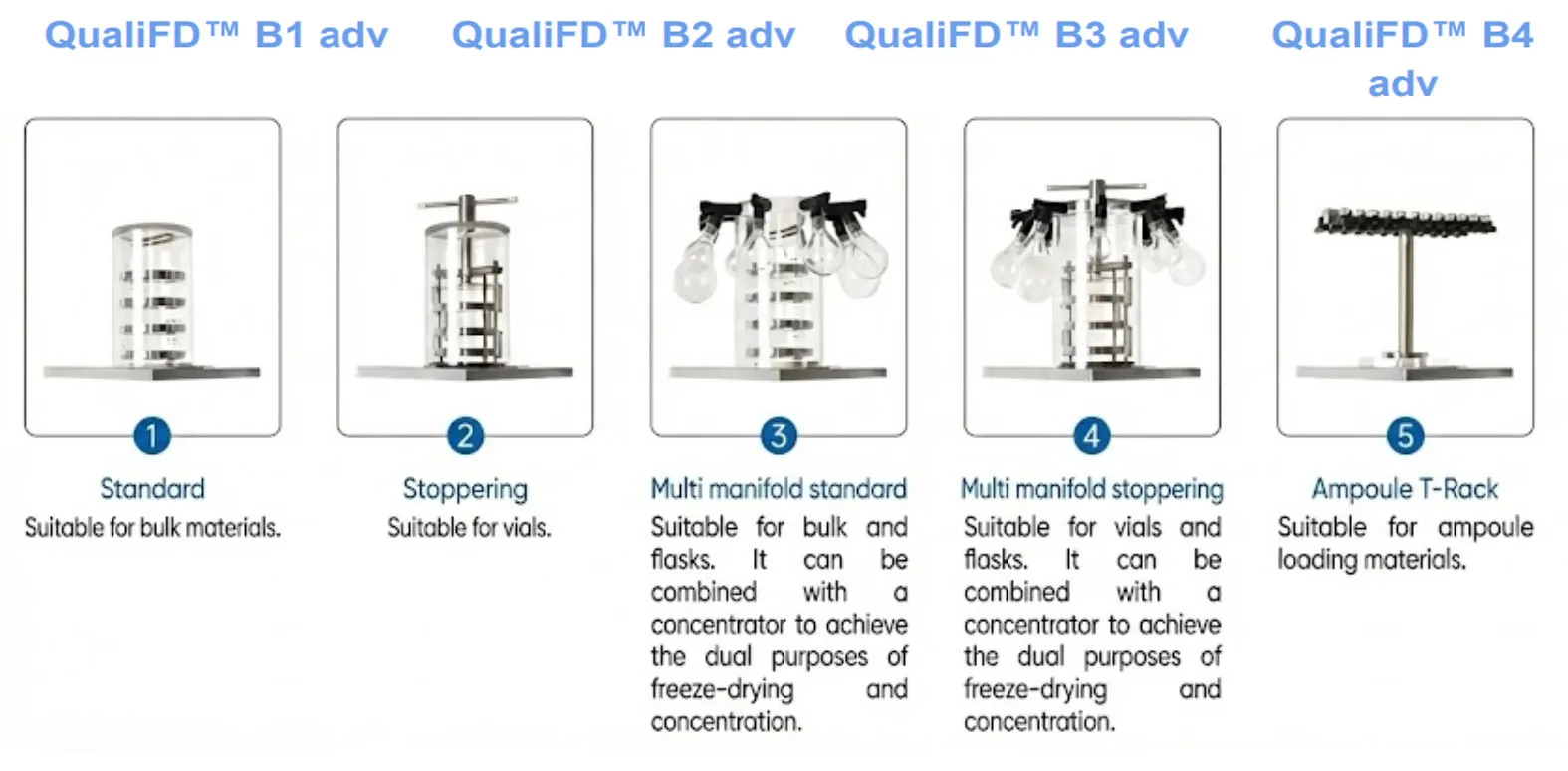

  • QualiFD™ B1 adv (Standard): 4–6 stainless trays for bulk materials (liquid, paste, solid).
  • QualiFD™ B2 adv (Top-Press): 3 trays with adjustable spacing; supports vial drying and vacuum stoppering after drying.

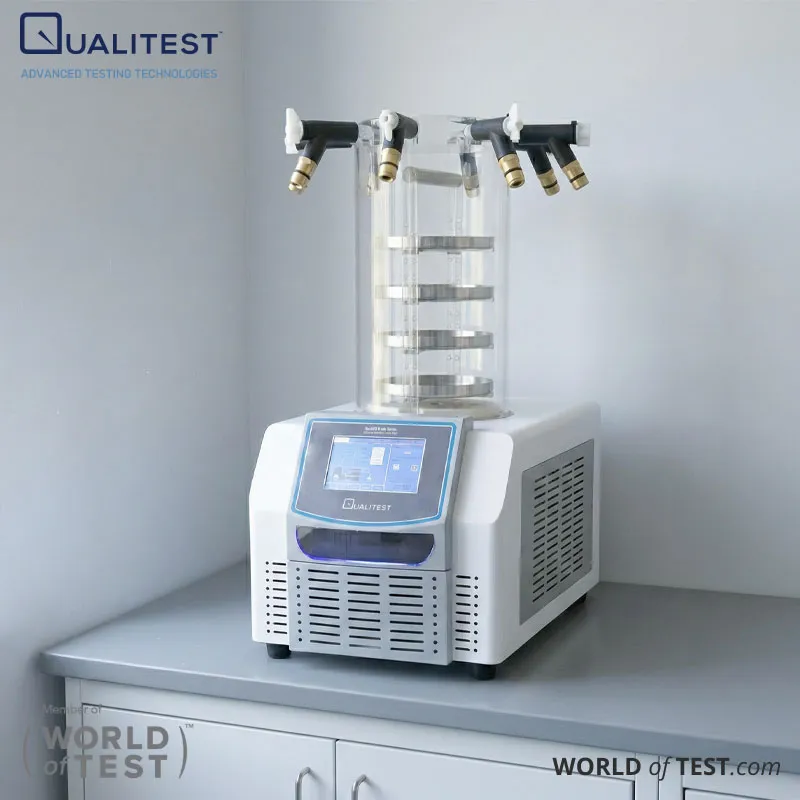

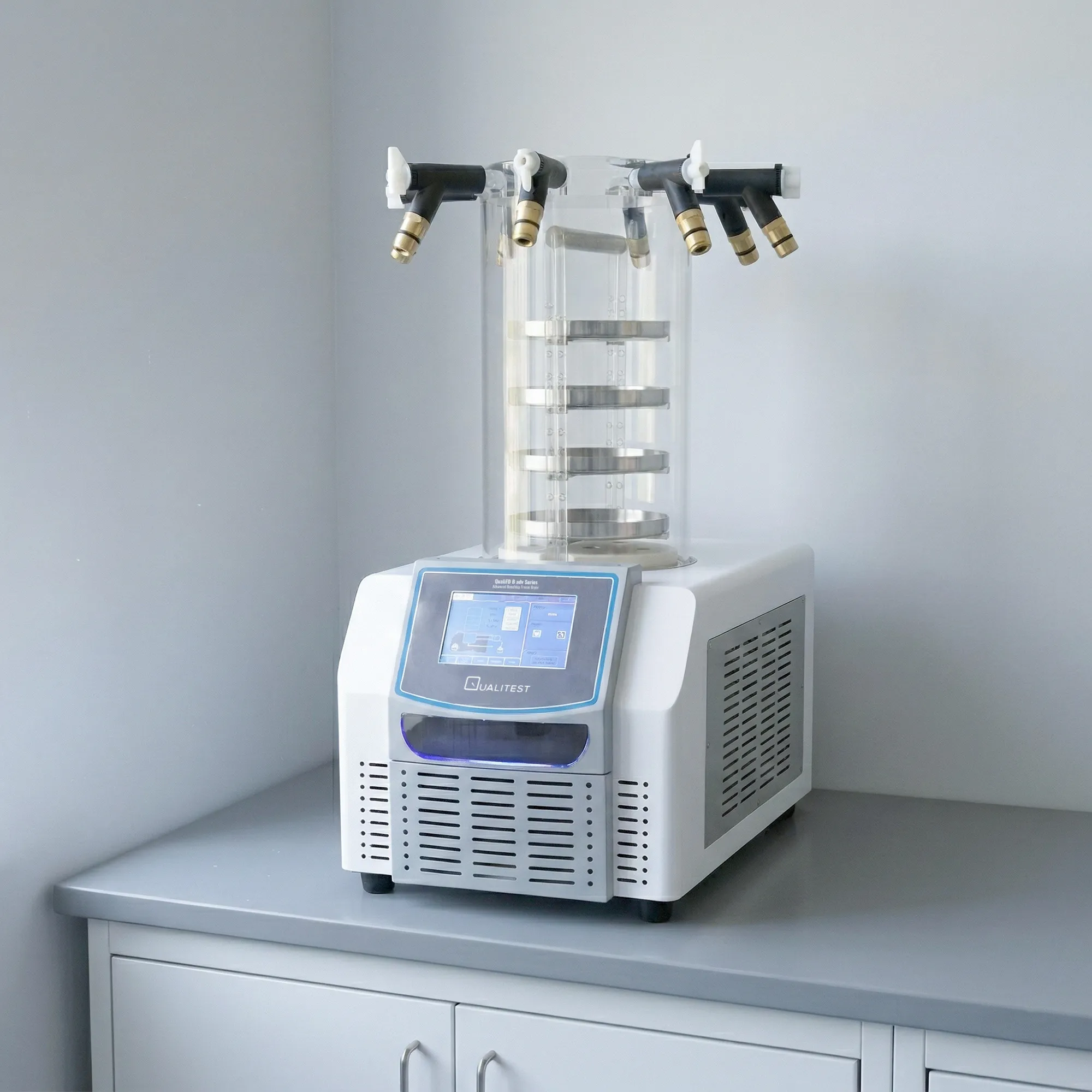

  • QualiFD™ B3 adv (Standard + Multiple Manifolds): tray drying plus external hanging bottle attachment for vials or wide-mouth bottles; attachment can be removed during use.
  • QualiFD™ B4 adv (Top-Press + Multiple Manifolds): combines top-press vial workflow with manifold capability.
SpecificationQualiFD™ B1 advQualiFD™ B2 advQualiFD™ B3 advQualiFD™ B4 adv
Shelves usable area (m²)0.120.08>0.12>0.08
Cold trap temperature (°C)≤ -60 (no-load); options ≤ -85 and ≤ -110 (no-load)
Vacuum degree (Pa)≤ 1 (no-load)
Ice capacity (kg/24 h)3–4
Material tray (mm)φ200φ180φ200φ180
Layers of tray (pcs)4343
Tray spacing (mm)70
Power at -60 °C (W)970
Weight at -60 °C (kg)41624162
Overall dimensions at -60 °C (mm)610 × 430 × 360
Drying chamber (mm)φ260 × 430
Cold trap diameter (mm)φ215 × 145
Vial capacity (φ12 mm)—492—492
Vial capacity (φ16 mm)—297—297
Vial capacity (φ22 mm)—147—147
DefrostingElectric defrosting
Voltage1Ph + N + PE, 220V (110V is also available)
