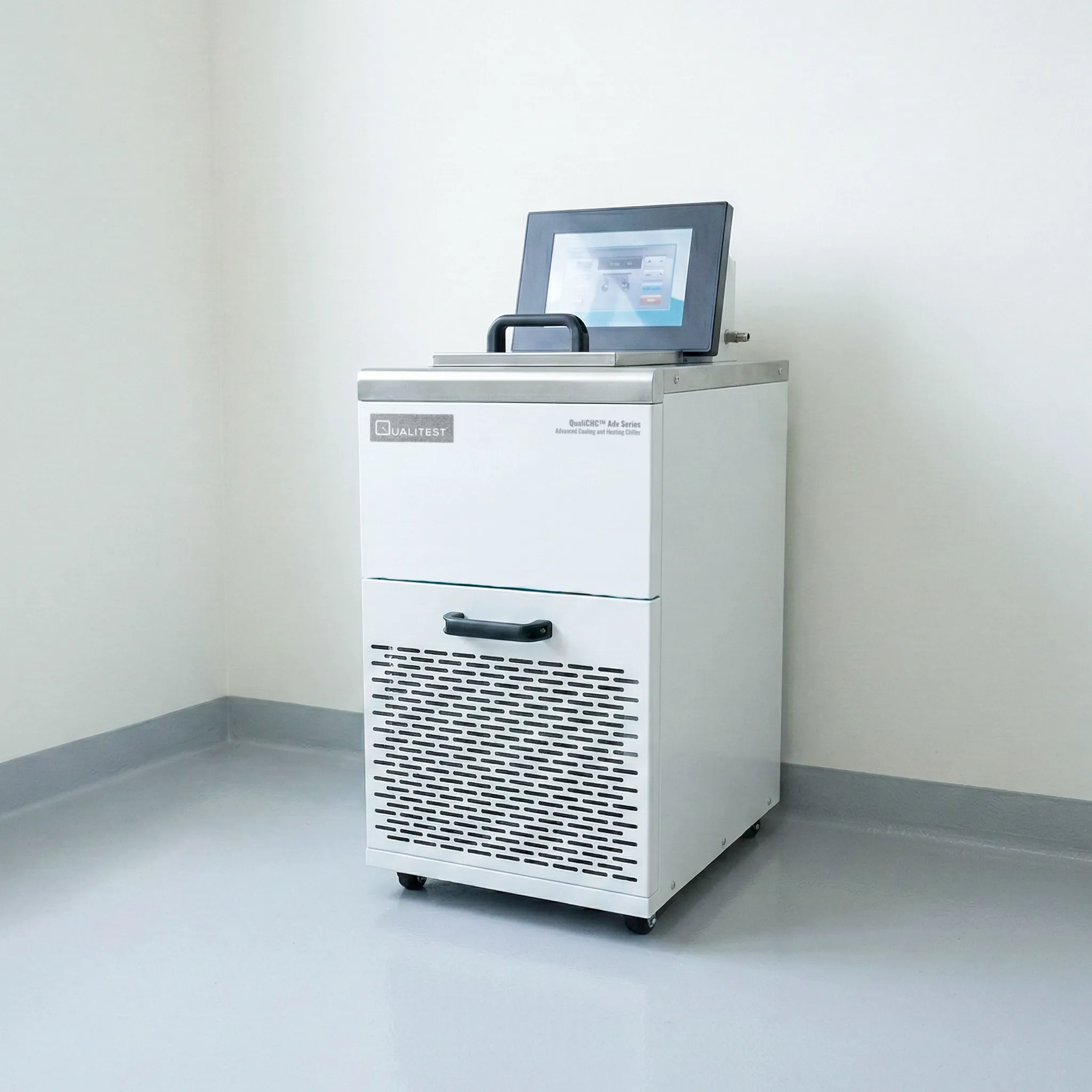

Advanced Cooling and Heating Chiller – QualiCHC™ Adv Series

Advanced Cooling and Heating Chiller (50°C to 300°C)

QualiCHC™ Adv Series is a cooling and heating chiller designed to deliver stable, repeatable temperature control for circulating fluids through external reactors, jacketed vessels, coils, or test fixtures.

This Process Thermostat platform combines refrigeration, electric heating, and a recirculation pump in one compact system to support both sub-ambient cooling and elevated temperature setpoints across a wide working range.

A cooling and heating chiller helps labs and production teams control process temperatures with tighter stability than tap water or improvised ice baths. QualiCHC™ Adv Series supports internal tank control and external circulation, depending on how the unit is configured in the workflow.

This Process Thermostat family is intended for continuous duty temperature conditioning where repeatability matters. Typical use includes holding a constant setpoint, running step changes, and maintaining temperature during heat loads from exothermic reactions or equipment operation.

Advanced Cooling and Heating Chiller – QualiCHC™ Adv Series Applications

  • Jacketed reactor temperature control: Circulates thermal fluid through a jacket to hold setpoint during synthesis, crystallization, or neutralization steps.
  • Material and component conditioning: Stabilizes sample temperature before measurements to reduce drift and improve repeatability in testing workflows.
  • Condenser and heat exchanger supply: Provides controlled cooling water for laboratory condensers, small heat exchangers, and recirculation loops.
  • Instrument and fixture cooling: Supports temperature control for custom fixtures, coils, and thermal plates used in R&D or validation work.
  • General laboratory thermostatic circulation: Replaces unstable tap-water supply with a controlled, monitored cooling and heating chiller loop.
Advanced Cooling and Heating Chiller – QualiCHC™ Adv Series

Standards

  • IEC 61010-1 (Safety requirements for electrical equipment for measurement, control, and laboratory use)
  • UL 61010-1 (U.S. safety standard aligned to IEC 61010-1 framework)
  • IEC 61326-1 (EMC requirements for measurement, control, and laboratory equipment)

Advanced Cooling and Heating Chiller – QualiCHC™ Adv Series Key Features

  • Wide operating temperature coverage across multiple configurations and tank volumes to match different heat-load profiles.
  • Stable temperature control with published stability values on listed models for repeatable process work.
  • Internal reservoir + external circulation capability to support both bath work and process loop control.

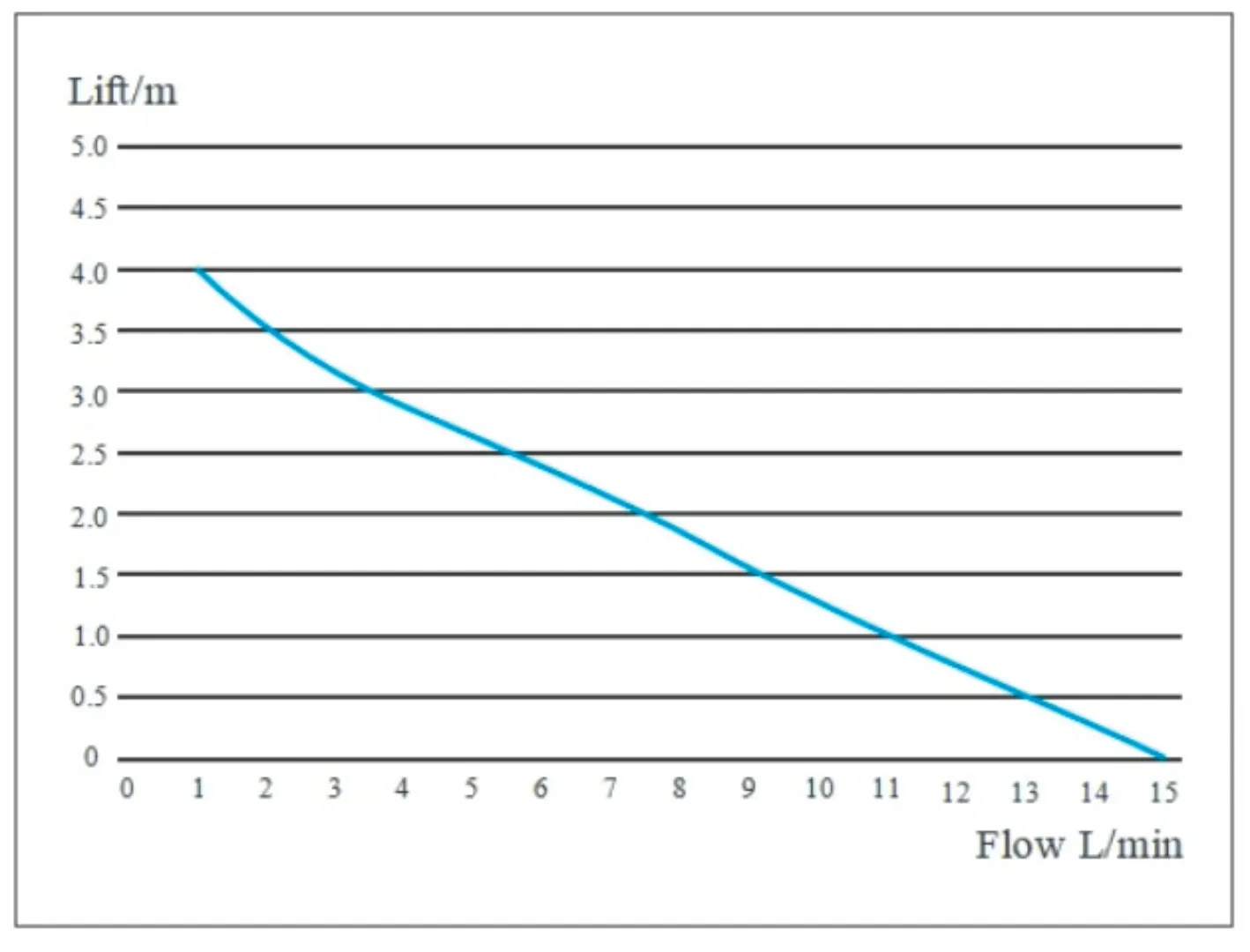

  • Adjustable circulation performance with pump flow and pressure specs listed per model to fit different plumbing lengths and restrictions.
  • Model variety for scaling from compact footprints to higher-capacity systems for larger fixtures and higher heat loads.
  • Safety-minded design elements typically include compressor protection (overheat/overload) on refrigeration-based units.

Theory and Method

Advanced Cooling and Heating Chiller – QualiCHC™ Adv Series

How a Process Thermostat works

The unit conditions a working fluid using two subsystems. A refrigeration loop removes heat for cooling, and an electric heater adds heat for warming. A circulation pump moves the conditioned fluid through either the internal reservoir or an external loop.

Control method

A digital controller regulates output using temperature feedback from the bath and/or circulation line. Setpoint control supports stable holding performance, while pump flow and plumbing selection determine how quickly the external load reaches equilibrium.

Advanced Cooling and Heating Chiller – QualiCHC™ Adv Series Technical Specification

ModelTemp Range (°C)Volume (L)Temp Stability (°C)Pump Flow (L/min)Pump Pressure (bar)Cooling Capacity @25°C (kW)Heating Power (kW)Total Power (kW/h)Dimensions L×W×H (mm)
QualiCHC™ Adv 5A-5 to 1006±0.10–150.450.421.01.3390 × 340 × 652
QualiCHC™ Adv 10A-10 to 1000–150.321.3390 × 340 × 652
QualiCHC™ Adv 20A-20 to 1000–150.421.4390 × 340 × 652
QualiCHC™ Adv 30A-30 to 1000–150.421.6455 × 388 × 845
QualiCHC™ Adv 40A-40 to 1000–150.481.9455 × 388 × 845
QualiCHC™ Adv 5B-5 to 100100–150.521.3395 × 336 × 715
QualiCHC™ Adv 10B-10 to 1000–150.421.3395 × 336 × 715
QualiCHC™ Adv 20B-20 to 1000–150.621.5395 × 336 × 715
QualiCHC™ Adv 30B-30 to 1000–150.541.5455 × 388 × 845
QualiCHC™ Adv 40B-40 to 1000–150.461.9455 × 388 × 845
QualiCHC™ Adv 20C-20 to 1000–150.621.4725 × 440 × 555
QualiCHC™ Adv 35A-35 to 10070–150.751.8725 × 440 × 555
QualiCHC™ Adv 35B-35 to 100100–150.751.8725 × 440 × 555
QualiCHC™ Adv 5C-5 to 10070–150.521.4725 × 440 × 555
QualiCHC™ Adv 5D-5 to 100150–150.761.552.1455 × 388 × 845
