Measurement Principles and Textile Standards
An air permeability tester figures out exactly how easily a fabric breathes or how well it holds its physical shape. Grounded in Darcy’s law, along with its slightly twisty, non-linear variants, to track gas squeezing through microscopic gaps, this essential setup translates pressure differences into highly dependable flow rates.
To meet classic standards like ASTM D737, EN ISO 9237, ISO 9073:15, JIS L1096 Item 8.26 Method C, BS 3424-16, and NWSP 070.1.RO(15), an advanced air permeability tester like the AirFicient draws air straight down through the sample. This builds a pressure drop from 10 to 2,500 Pa. The system tracks the escaping air to deliver spot-on figures with an accuracy of < +/-2%, completely removing tedious guesswork and the frustration of leaky test seals!
Key Test Variables
| Variable | How it’s Controlled/Measured |
|---|
| Pressure Drop (Δp) | Regulated by highly dependable vacuum pumps, such as the top-grade internal parts inside the AirFicient, testing smoothly from 10 to 2,500 Pa. |
| Flow speed | Measured by automated test heads, handling an incredibly wide range of 0.6 to 10,000 mm/s on a standard 20 cm² setup. |
| Sample condition | Factoring in how physically squished the layered material currently is, accommodating thick textile samples up to 10 mm. |
Types of Testers and Modern Setups
Over recent years, the standard air permeability tester has grown into highly specialized setups meant strictly for fabrics, garments, and non-woven textiles.
Steady-State Fabric Machines

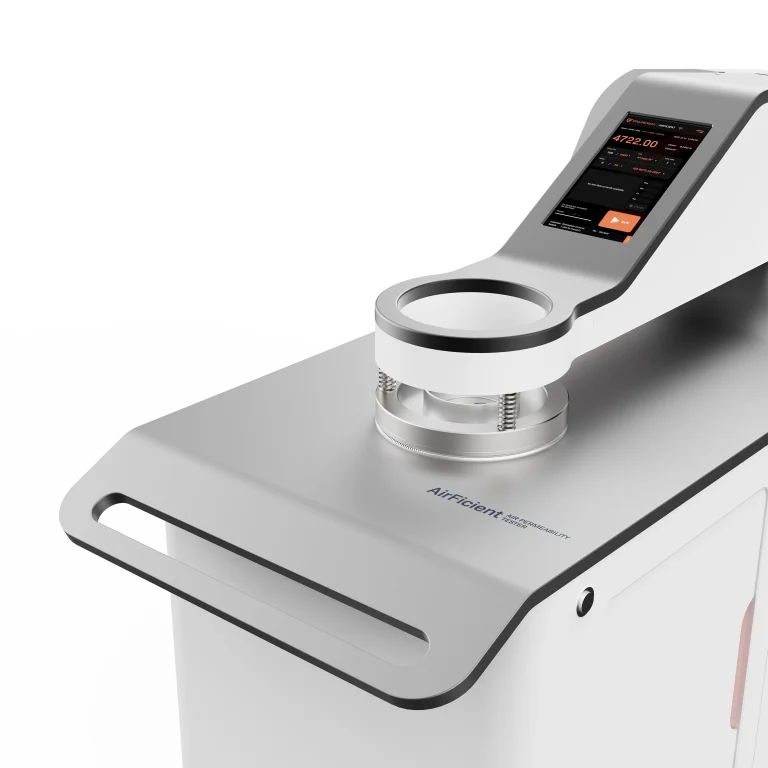

These dependable machines keep a watchful eye on air speed at a strictly locked pressure. The AirFicient takes this classic style and makes it incredibly smooth by using maintenance-free range conversion components.
It also recognizes different clamp sizes automatically, supporting everything from the standard 20 cm² pad all the way up to larger optional test heads like the 100 cm², 50 cm², or 38 cm² sizes. It even cleans up the final numbers to fix any physical errors from tightly squished samples up to 10 mm thick.
Connected Laboratory Hardware
Instead of relying on manual data entry, modern smart setups simplify tricky physics equations behind a clean, easy-to-use digital screen. The AirFicient directly hooks up to your facility's Wi-Fi and pairs with the SmarTexLab smartphone app.
You can check on running tests from across the room, tweak equipment settings, and instantly send clean, formatted data directly to your quality control department or brand buyers. It smoothly presents results in sixteen different measurement units, including mm/s, cfm, l/m²/s, and m³/min/m². It handles all the tricky math on its own, giving you fast, highly dependable numbers that make global quality checks entirely straightforward.
Theoretical Models and Corrections
Getting a solid handle on the mathematical side of an air permeability tester means dealing with a few real-world fabric variables:
Straight Flow vs. Turbulent Jumps
Darcy's basic theoretical law works perfectly fine for slow, smooth airflow, but fast-moving air passing through dense technical fabrics can get pretty wild and completely non-linear. Industrial engineers use beefed-up mathematical formulas, such as the Ergun equation, to neatly fix the numbers when air starts rubbing aggressively against individual fibers and actively losing energy.
Flow Ease vs. Flow Resistance
You can calculate exactly how much a specific material pushes back against the air simply by looking at how easily the gas passes through and carefully factoring in how physically sticky the air itself is. Specialized math successfully connects high-pressure laboratory tests down to slow-speed standard numbers.
Holes and Pore Sizes
For heavily woven textiles, smart predictive formulas carefully look at the actual size of the gaps, the total number of large open holes, and the overall empty structural space to successfully link the physical weave directly to what the air permeability tester ultimately reads on its digital screen.
