Box Compression Test: Standards, Methods & Calibration

Watching a towering stack of shipping containers buckle like a soaked paper bag is a massive blow to any operation. All you logistics experts know exactly the gut-wrenching feeling of seeing a shipment turn into mangled inventory.

We believe every inch of a carton needs to be remarkably rigid to keep your overhead from skyrocketing, which is why we’re breaking down exactly how to keep your packaging upright with our box compression testers.

Key Takeaways

• Finding the breaking point: The proper box compression test method uses physical pressure to figure out the exact maximum weight a corrugated container can support before it folds, saving your operation from expensive inventory losses.
• Sneaky structural enemies: Hidden factors like heavy moisture in the air, ventilation cutouts, and unusual physical shapes drastically reduce package endurance.
• Playing by the official rules: Following a strict box compression test standard like ASTM D642 guarantees your laboratory numbers actually match what happens during rough transit.
• The high cost of skipping health checks: Running routine box compression tester calibration on your testing machinery prevents tiny sensor glitches from turning into thousands of dollars of warehouse damage.
• Smart equipment choices: Securing high-precision testing machinery gives your team total confidence in your material choices without draining your corporate budget.


What is Box Compression Test? Defining the Metric

So, exactly what is the story behind this thing we call a what is box compression test anyway? To put it in straightforward terms, it’s a proven laboratory process used to figure out the load-bearing capacity and the "don't-crush-me" endurance of those brown corrugated containers.

Here is exactly how we break it down:

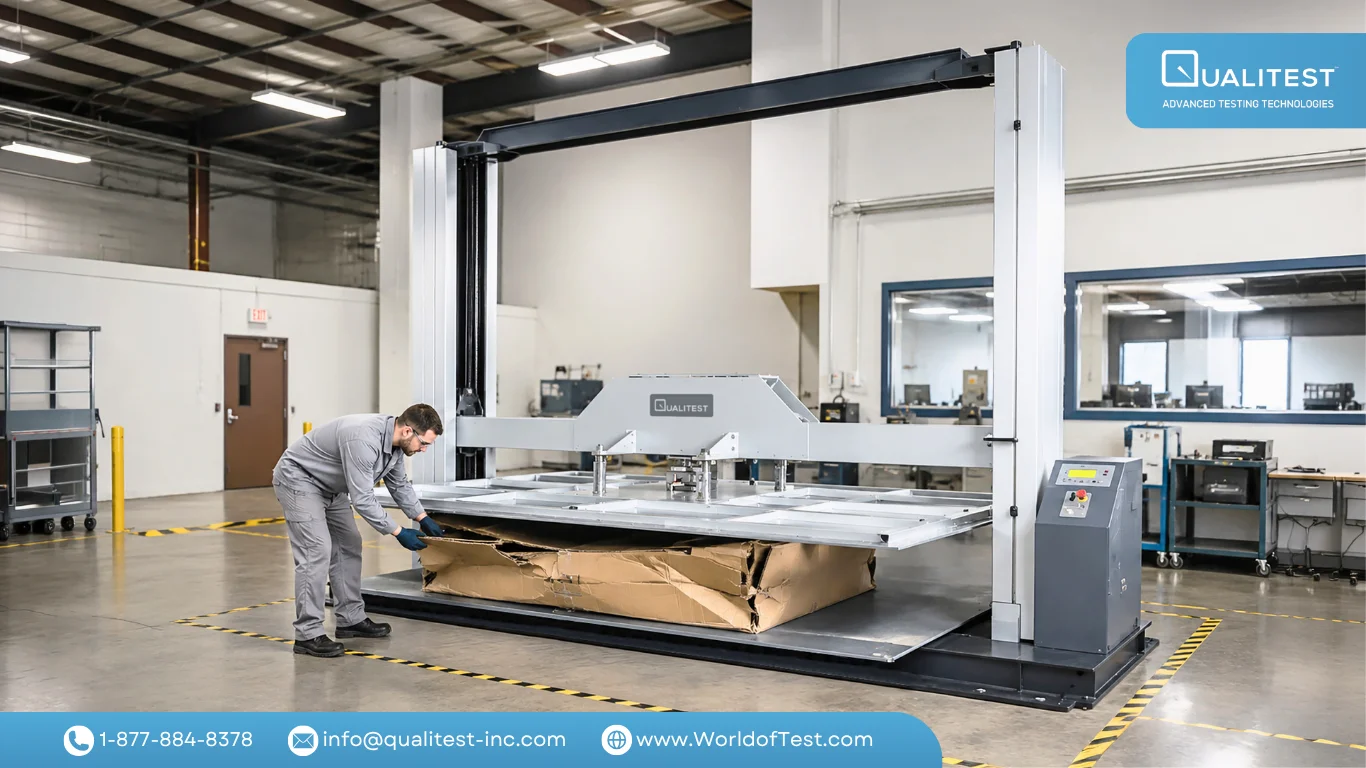

• The Core Procedure: We compress an empty or filled box between two parallel rigid plates at a constant speed until failure. This physical pressure test is widely considered the only way to truly know a container's maximum strength.
• The Real-World Stakes: Think about a massive, 1,000-pound pallet of canned pet food. The single, lonely box at the very bottom is forced to support hundreds of pounds of dead weight entirely on its own. If that bottom layer gives out, the whole tower comes crashing down.
• The Anatomy of a Collapse: Research shows that a typical structural failure doesn't happen magically; it specifically involves panel buckling and severe corner or crease deformation.
• The Equipment Advantage: That is exactly why we rely on heavy-duty testing machinery, like our QualiBCT™ 2 Series which can deliver up to a staggering 100 kN of crushing force, to find out precisely where that breaking point lives.

By checking exactly how much heavy weight your crates can take before they go "crunch," you make sure they won’t fold like a flimsy card table when they’re stacked high in a warehouse or shoved into the back of a moving delivery truck.

We’re convinced that getting a real handle on what is box compression test helps the people who build products pick the right materials without throwing extra capital into the trash.

Critical Industries for Compression Testing

From our point of view, while every person selling goods should care about their boxes, a total structural failure is especially nasty in a few specific sectors.

Global Shipping & Logistics

This is where parcels go on a wild, unpredictable trip through dozens of different hands and sorting machines. Knowing exactly what is box compression test and how to apply it is vital here.

If a weak carton bursts on a sorting conveyor, it causes a massive jam that delays hundreds of other shipments. We find that unyielding structural integrity is the only thing standing between a smooth delivery and a logistical nightmare.

Food & Beverage

A smushed box in this sector means a big, messy disaster of ruined products and wasted stock.

A collapsed crate of fresh fruit doesn't just bruise the produce, it leaks sticky juice all over the warehouse floor, ruining the perfectly good boxes underneath it. We believe protecting the base of these stacks is non-negotiable.

High-Value Technology

Pricey, easily-broken electronics need an outer shield that’s solid as a rock.

Consider a pallet loaded with fragile OLED televisions. If the bottom row gets crushed under the weight of the top row, that is thousands of dollars completely obliterated in seconds. In our view, high-end gear deserves high-end protection.

Pharmaceuticals & Healthcare

A dented package can make life-saving supplies totally useless, and that’s a failure that is truly flawless in the worst way possible.

A smashed outer package holding temperature-sensitive vials can break the thermal seal, forcing the entire batch to go straight into the incinerator. We know there is zero room for error when lives are on the line.

Variables Impacting Structural Integrity

A shipping container doesn't just sit there looking pretty. We think a few sneaky, hidden variables can totally mess with the way it stays stiff.

Environmental Conditions (Humidity & Moisture)

Wet cardboard is basically just a limp and unreliable material. We see it all the time, as higher humidity significantly lowers box strength. Accurate modeling absolutely must include moisture-dependent material properties.

For instance, a standard C-flute carton that holds up 500 pounds in a dry, climate-controlled testing room might completely collapse under just 250 pounds after sitting in a damp, non-ventilated shipping container in the middle of summer.

Cutouts, Handles, and Ventilation Holes

Hand holes, ventilation slits, and side-wall cutouts significantly reduce BCT. We know these effects vary wildly depending on the exact size, shape, and location of the hole. Ignoring these geometric weaknesses is a recipe for unexpected collapse.

Geometric Specifications and Positioning

Taller crates or boxes with unusual, skinny shapes distribute weight in ways that can be satisfyingly spot on or a total failure.

If you are dealing with massive, oddly-shaped freight, adapting your box compression test method requires something with a giant testing surface, like the QualiBCT™ 4 Series with its massive 1600×1600 mm customizable metal plates, just to handle the sheer size of the load.

Furthermore, studies indicate that off-center placement and different operators can shift compression strength by up to 10% and deflection by 19%.

Tray Packaging and Open-Top Containers

Standard plate-to-plate compression does not always reflect real loading for open trays or fruit boxes. Modified setups are often needed to better mimic field behavior. We recommend ensuring your testing procedure actually matches the specific way your trays are stacked in the field.

The Standard Box Compression Test Method

Because of all those tricky variables, we stick to our guns. The accuracy of your data depends on following the box compression test method perfectly.

To get numbers you can actually trust, the standard procedure involves these critical steps:

1. Pre-Test Conditioning: Before the squishing even begins, boxes are usually conditioned at 23 °C and 50% relative humidity, following strict protocols to ensure fair comparisons.
2. Precise Placement: We place a lone container between two big, parallel metal platens that stand their ground. For example, machines like our QualiBCT™ LCD 20/50 feature a brilliant universal design where the upper platen automatically adjusts itself to lay perfectly flat against the carton's surface.
3. Controlled Pressure Application: Driven by a high-precision servo motor, the top plate moves down slow and steady. The recommended platen speed is exactly 12.7 mm/min until failure.
4. Real-Time Sensor Tracking: Applying pressure to the package at this constant speed while high-tech sensors track the resistance allows you to pinpoint the exact moment the box gives up.

We find that computer-controlled setups are far superior for this entire process because they show you a bright, clear graph of the exact second the box fails, which is sheer perfection for any data-driven team.

Following a Strict Box Compression Test Standard

Testing isn't just about breaking stuff for the sake of it. To make sure your packages can handle a long, bumpy trip across the sea, we suggest sticking to a recognized box compression test standard. Industry authorities wrote the definitive rulebook on how to ship stuff without it breaking.

We think your lab results should always match up with these primary benchmarks:

• ASTM D642: The classic way to see how units and containers handle a heavy downward load, referenced by countless studies as the gold standard for measuring resistance to external compressive loads.
• ISO 12048: The global rules for those filled-up packages sitting on a pallet.
• TAPPI T 804: The go-to guide for conditioning and testing those fiberboard shipping containers we see everywhere.

Following a box compression test standard means your lab numbers actually mean something when your inventory is sitting on a swaying ship in the middle of a storm.

The High Cost of Ignoring Box Compression Tester Calibration

Even the most expensive, impressive-looking gear can get a bit off-track after years of hard work. In our professional opinion, a regular box compression tester calibration is a vital requirement that you simply cannot ignore.

Why Calibration is Non-Negotiable

It is basically a comprehensive health check where you compare your machine's math against a perfect, gold-medal benchmark. Other scientific fields emphasize the need for standardized specimen preparation, loading protocols, and strict data analysis to ensure comparability, and those exact same principles apply heavily to box testers.

Bridging the Gap with Predictive Equations

Many teams also use empirical equations, like the McKee formula, to relate Edge Crush Test (ECT) results and box dimensions to the final BCT. You can reduce differences between predicted and measured outcomes by tuning these formulas with solid test data.

Modeling studies even show that BCT predictions can be accurate within 7% using finite element models when material, geometry, moisture, and cutouts are well characterized. However, reducing test variability in those key inputs is absolutely essential for reliable box design and avoiding over-design.

The Real-World Cost of Sensor Drift

Consider a situation where a load sensor is reading off by just 5%.

That tiny technical glitch leads a company to unknowingly approve weak packaging. Fast forward a few months, and that 5% error turns into thousands of dollars in warehouse damage because the boxes keep caving in under pressure.

If you skip out on box compression tester calibration, your machine might start telling you tall tales about how tough your boxes are. Keeping those sensors satisfyingly spot on is the only way to go.

Essential Features for Testing Equipment

If you're looking to grab some new equipment for your lab, we think you should be incredibly picky. Every inch of the machine should feel like it's built for long-term endurance. Look for these specific markers of excellence:

• Ultra-Sensitive Load Sensors: To catch every tiny little structural shift as the box compresses. We highly recommend setups that use multiple trackers, like the four independent load cells found in the QualiBCT™ 4 Series, for absolute accuracy.
• Precision Parallel Platens: That stay perfectly level so the box doesn't slide out of alignment.
• User-Centric Data Management: For making those clear reports without needing to be a computer expert. You want a machine with RJ45 TCP/IP connectivity or built-in auto-storage so your data moves seamlessly to your desktop.


Strategic Packaging Solutions with Qualitest

We believe that keeping your budget intact starts with boxes that refuse to fail.

At Qualitest, we provide cost-effective solutions that simulate those rough-and-tumble shipping trips without requiring an enormous financial investment. We pride ourselves on reliable equipment that keeps your finance team happy and your inventory safe from damage.

Seriously, why deal with the headache of shipping insurance claims when you could secure your supply chain right the first time? Explore our full range of Box Compression Tester here and keep your products from turning into a pile of waste.
