BCT Methodology & Test Parameters
Stop guessing when your corrugated packaging will fail under heavy warehouse stacks. The standard Box Compression Test (BCT) method resolves this uncertainty by compressing an empty box between parallel plates at a constant speed until structural failure.

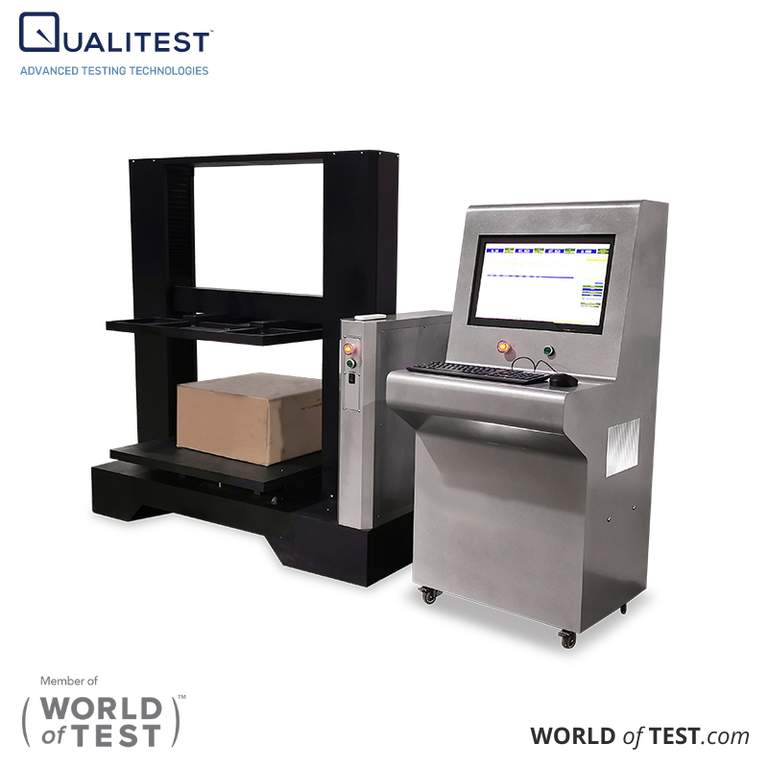

By executing this precise physical procedure on the computerized QualiBCT™ 2 Series Computer Model Compression Testing Machine, you capture the exact peak vertical force of your containers. Secure a true read on your packaging capacity and run a standard test today.
To keep these numbers totally honest across different test runs, you have to let the samples settle in an environment set to standard room conditions, specifically around 23 degrees Celsius with exactly half of the air filled with relative humidity, following a proper pre-conditioning period.
Using a computerized unit like the QualiBCT™ 2 Series, which effortlessly handles packages with compressive strengths up to 100kN, allows you to execute three main kinds of tests to see how your packaging holds up:
- The Structural Limit Run (Strength Test): A straight-up destructive test where you compress the container until it breaks, capturing the exact moment the material yields and plotting a satisfyingly clear force-displacement curve with a tiny indication error of just ±0.5%.
- The Threshold Pass/Fail Check (Constant Value Test): This verifies if the box can handle a specific, predetermined load limit without losing its structural shape.
- The Long-Term Load Test (Stacking Test): This maintains a steady, heavy load on the container for a prolonged stretch of time to make sure it won’t slowly buckle during extended storage periods.
Compression Modeling & BCT Calculations
We appreciate digging into the engineering data, and the precise numbers you extract from a Box Compression Tester are incredibly valuable for optimizing your packaging blueprints to avoid wasting money on over-specified materials. (The QualiBCT™ 2 Series even lets you swap instantly between Kgf, N, lbf, g, ton, and Mpa on the digital display to match whatever calculation standard your specific engineering team prefers).
Empirical Formula Estimations
For years, packaging engineers have leaned on quick calculation rules, with the legendary McKee equation being the absolute favorite. This classic math shortcut estimates final crush numbers by blending how tough the paper edges are, otherwise known as the Edge Crush Test (ECT), with the total distance around the box and how thick the cardboard walls are. Today, engineers have beefed up this formula to include calculations that look at how the flat sides bend and warp under a heavy load, giving you a much tighter, more dependable estimate.
Numerical & Finite Element Analysis (FEM)
Let's be frank: simple formulas don't always hold up with complex, non-standard box shapes. That’s why the latest analytical models look at how the cardboard twists, bends, and shears on a microscopic level. Many packaging engineers run advanced digital simulations, often utilizing Finite Element Method (FEM) software, side-by-side with physical test data. These simulations mimic the crushing process to show exactly where the cardboard will fold and buckle before you even build a physical prototype.
Structural Failure Modes & Design Variables
When you put a box to the test, watching the exact moment it reaches its structural limit is incredibly revealing, and it teaches you way more than just looking at a final number on a screen. How does a cardboard box actually fail?
Usually, the flat panels start bowing outward under pressure, the corners develop pronounced creases, and the edges fold in on themselves. It is a highly visible structural failure, but it tells you exactly where the paperboard is weak. Fortunately, our QualiBCT™ 2 Series features a smart automatic stop mode the instant specimen damage is physically detected, keeping your testing environment completely safe and resetting automatically.
Let's be realistic, a variety of small design choices can heavily impact a container's load capacity before it ever reaches a warehouse floor:
- Ventilation and Handle Cutouts: Adding hand grips or air vents to your box will drastically reduce structural strength. Engineers use advanced artificial neural networks and complex digital models alongside physical test data to calculate exactly how much capacity is lost when material is removed from the panels.
- Material Characteristics: The specific paper grade, the shape of the inner flute profile, the absolute dimensions of the box, and even crease marks from folding machinery will completely shift the structural failure point.
- Transit Dynamics: Static warehouse floors are stable, but delivery trucks are not. Highway bumps, engine vibrations, and repetitive road shock weaken your packaging long before the boxes are stacked high, making physical verification absolute non-negotiable.
Ultimately, you can run all the simulation software you want, but nothing beats performing a physical crush test on an actual box. Whether you are evaluating a compact, custom-die-cut shipping carton on the QualiBCT™ 2A model, featuring a 500x500mm plate, or testing massive industrial crates on the QualiBCT™ 2D, with its expansive 1000x1000mm plate size and 1000mm maximum stroke, verifying the data physically is essential.
We even offer the QualiBCT™ 2N for totally customized dimensions, ensuring you maintain excellent machine parallelism and high return speeds no matter the package size. Running these theoretical models against physical methods on a highly dependable machine is the absolutely essential way to prove your boxes won’t fail structurally under heavy load pressure.
