An improperly prepared sample leads to unreliable results. There is nothing more frustrating for a professional than spending valuable time on a flawed metallographic sample preparation only to get an obscured, artifact-filled view that prevents a confident analysis.
A correct preparation ensures the story your material is trying to tell comes through with absolute clarity. Every structural detail is sharp, and you can be certain of what you are seeing. Following the right metallographic sample preparation procedure is the only way to generate data you can stand behind.
The Metallographic Sample Preparation Procedure
The entire objective of this process is to get an unobstructed view of the material's genuine internal structure. The success of the final analysis depends on the quality of the individual metallographic sample preparation steps.
Related article: Metallurgical Microscope: Solve Surface Inspection Challenges Easily
1. Precision in the Initial Cut
The process begins when you section a manageable piece from the bulk material. This is the first of the critical metallographic sample preparation steps. The goal is to make this cut without introducing heat or stress. Using a dedicated abrasive cutter with an integrated cooling system is the standard for achieving a clean, unaffected slice.
2. Mounting for Stability and Handling
The sectioned piece is then typically encased in a polymer mount, often using a hot mounting press. This serves several practical functions: it makes small or unconventionally shaped samples easy to handle, it protects the sample's edges, and it provides a uniform format for automated equipment.
3. Grinding for a Planar Surface
Next, grinding removes the layer of damage created during sectioning and produces a completely flat surface. This is performed on rotating wheels using a sequence of abrasive papers, moving from a coarser to a finer grit. A constant flow of liquid is essential to carry away debris and prevent any heat buildup.
4. Polishing for a Flawless, Reflective Surface
This is the stage that creates the final surface. The key to knowing how to polish metallographic samples is to remove the fine scratches from the last grinding step until a reflective, mirror-smooth finish is achieved. Automated systems can accomplish this using a series of polishing cloths with progressively finer diamond abrasives.
5. Etching to Reveal Structural Details
A perfectly polished surface, while clean, often hides the most important microstructural information. Etching uses a chemical reagent to lightly and selectively dissolve the surface. This creates topographical differences that reveal features like grain boundaries and different phases, making them visible.
6. Microscopic Examination for Analysis

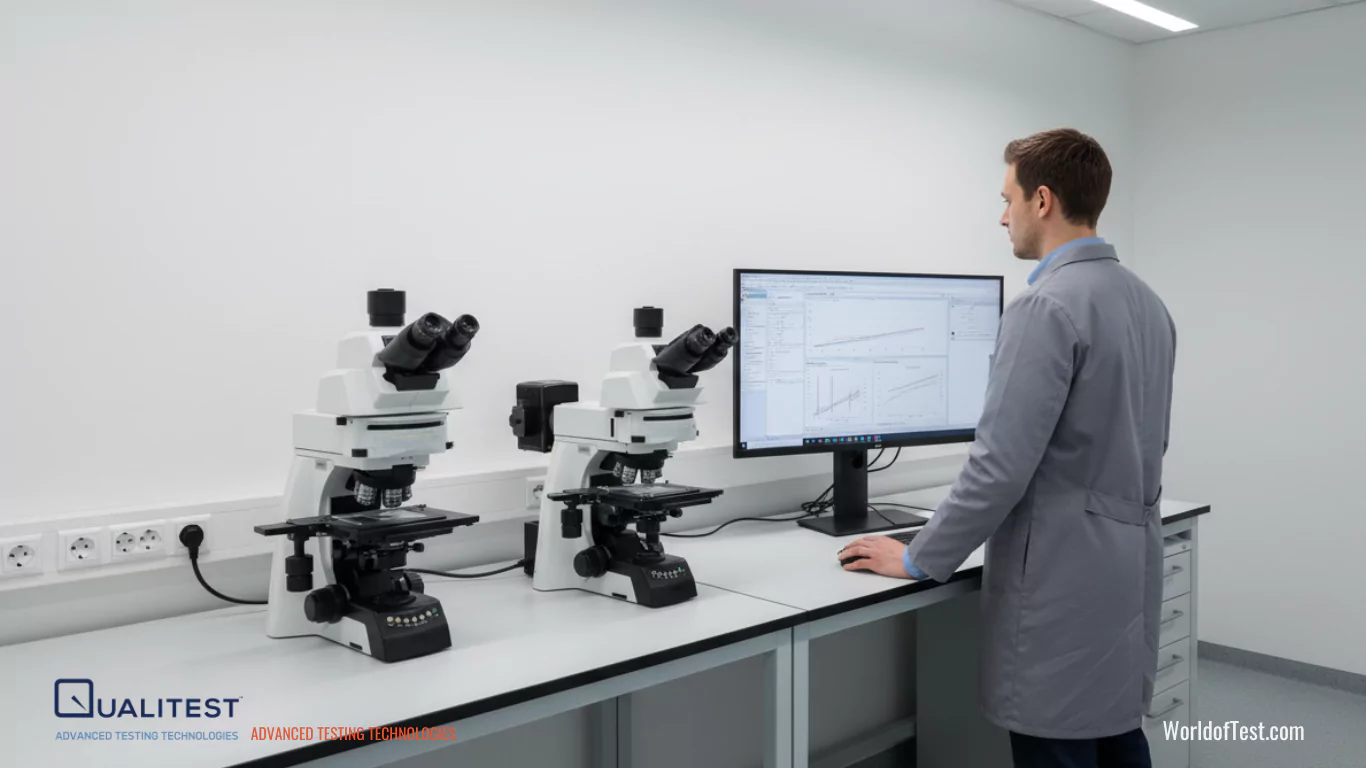

With the metallographic sample preparation complete, the sample is ready for inspection. This is where an instrument like our Upright Metallurgical Microscope - QM900 comes into play. These microscopes use a reflected light source to allow for a detailed visual analysis of the material's grain structure, the distribution of its phases, and the presence of any inclusions or discontinuities.
Common Challenges in the Metallographic Sample Preparation Procedure
While the procedure is systematic, several common problems can arise. Anticipating these issues is the best way to prevent them from affecting your analysis.
1. Thermal Damage During Sectioning
If the cutting process introduces too much heat, it can alter the material's structure, leading to an incorrect analysis.
Solution: Employ one of the precision cutters we offer, which are engineered with high-flow coolant systems to ensure the sample's integrity is preserved.
2. Edge Retention Problems
Rounding the edge of a sample is a frequent issue, particularly when the area of interest is a surface treatment or coating.
Solution: Select a mounting compound with a hardness similar to the sample to provide support. Additionally, our automated grinder-polishers provide consistent pressure across the entire surface to maintain flatness from center to edge.
3. Scratches Remaining After Final Polish
Finding scratches on the final surface is a common frustration, especially when learning how to polish metallographic samples. It is often due to contamination from a previous, coarser step.
Solution: Be extremely careful about cleanliness between stages. Thoroughly wash the sample and use high-grade, contaminant-free polishing cloths and suspensions from our consumables line.
4. Surface Smearing on Soft Materials
Ductile materials like aluminum and copper can smear during polishing. This deformation hides the true microstructure.
Solution: Use a napless polishing cloth paired with a suitable lubricant. An automated system that allows for fine control of applied pressure is also highly effective at preventing this issue.
5. Pull-Out of Hard Particles
In composites, hard particles can be torn from the softer material, leaving voids and causing deep scratches.
Solution: Ensure the sample is fully supported by a high-hardness mounting compound. Using a high-viscosity lubricant can also help to hold particles in place.
Why This Process is Critical
Ultimately, a well-executed metallographic sample preparation is the foundation for any sound materials analysis. Each part of the metallographic sample preparation procedure is a critical link that leads to a definitive result.
At Qualitest, we understand that a successful metallographic sample preparation depends on technique and technology.
We are committed to supplying our clients worldwide with cost-effective, high-performance metallurgical microscope. From sectioning machines and mounting presses to a full offering of microscopes—including our versatile Upright Metallurgical Microscope - QM900 and the powerful Inverted Metallurgical Microscope - QIM900 for advanced analysis—we offer practical solutions for industrial and research labs.
If you are looking to improve the consistency of your in-house preparation, contact our team of experts.
