It is a persistent issue in our industry: a road is paved, and within a few years, it shows signs of significant wear. For a long time, the methods used to select an asphalt binder simply couldn't forecast how a material would behave under real-world pressures.
This is why our industry has moved to Superpave performance grading. We see this as an essential shift for any organization focused on building infrastructure that can withstand the demands of modern traffic and climate.
Key Takeaways
- Superpave performance grading evaluates asphalt binders based on specific climatic conditions and traffic loads rather than standardized lab temperatures.
- The primary advantages of Superpave performance grading include superior resistance to permanent deformation, fatigue cracking, and low-temperature thermal fractures.
- This method is essential for accurately characterizing modern materials such as Polymer Modified Asphalts which traditional tests often misread.
- Rigorous aging simulations allow engineers to predict long-term durability and significantly extend pavement service life.
- Qualitest provides cost-effective solutions like the QualiDSR and QualiBBR to help laboratories meet strict compliance standards with ease.
What is Superpave Performance Grading?
Superpave Performance Grading (PG) is a system designed to classify asphalt binders based on their physical properties and expected field performance under specific climatic and loading conditions. It improves upon traditional penetration and viscosity grading by directly relating binder properties to pavement performance factors such as rutting, fatigue cracking, and thermal cracking resistance
Instead of testing asphalt binder at standardized lab temperatures, the Superpave performance grading method evaluates the material under conditions that mirror its future environment. A binder with a grade of PG 64-22 is confirmed to perform reliably in high-temperature summer conditions of 64°C and to resist cracking in sub-zero winter temperatures down to -22°C.
We consider this targeted approach to be the system's most practical asset as it specifies a binder engineered for the actual project location, not a generic laboratory setting.
Key Advantages of Superpave Performance Grading
This transition offers tangible engineering benefits. Advantages of Superpave performance grading include better prediction of binder behavior under varying temperatures and traffic loads, leading to more durable pavements.
1. Directly Counteracts Pavement Distress
The system is designed to prevent the three primary modes of failure.
- Permanent Deformation (Rutting): It verifies the binder is stiff enough to resist forming ruts under heavy loads. Studies comparing Superpave with traditional methods show that Superpave mixes generally exhibit better resistance to rutting and fatigue.
- Fatigue Cracking: It ensures the binder has enough flexibility to endure repeated traffic loads without breaking down.
- Thermal Cracking: It confirms the binder will not become brittle and fracture during sharp temperature drops. To prevent this, labs use the QualiBBR™ 1 (Bending Beam Rheometer) to simulate these freezing conditions, measuring exactly how the binder creeps and relaxes to ensure it won't snap when the mercury plummets.
2. Built for Specific Climates and Loads
A highway in the heat of the Arizona desert requires a completely different binder formulation than a road in a Minnesota winter. The system allows for temperature zoning and binder selection tailored to local climates, enhancing pavement longevity.
Consider the difference between a heavy-haul industrial road in a scorching desert climate versus a local access route in the freezing north. The desert road needs a binder that won't soften into a sticky mess at 70°C, while the northern road needs one that stays pliable even when the ground freezes solid. This ability to tailor materials is one of the core advantages of Superpave performance grading.
3. Accurately Characterizes Modified Asphalts
Many of today's high-traffic roads depend on Polymer Modified Asphalts (PMA) for added durability.
Think about the immense pressure placed on an international airport runway or a shipping terminal; these surfaces demand modified binders to handle the massive impact of landing gear and heavy containers.

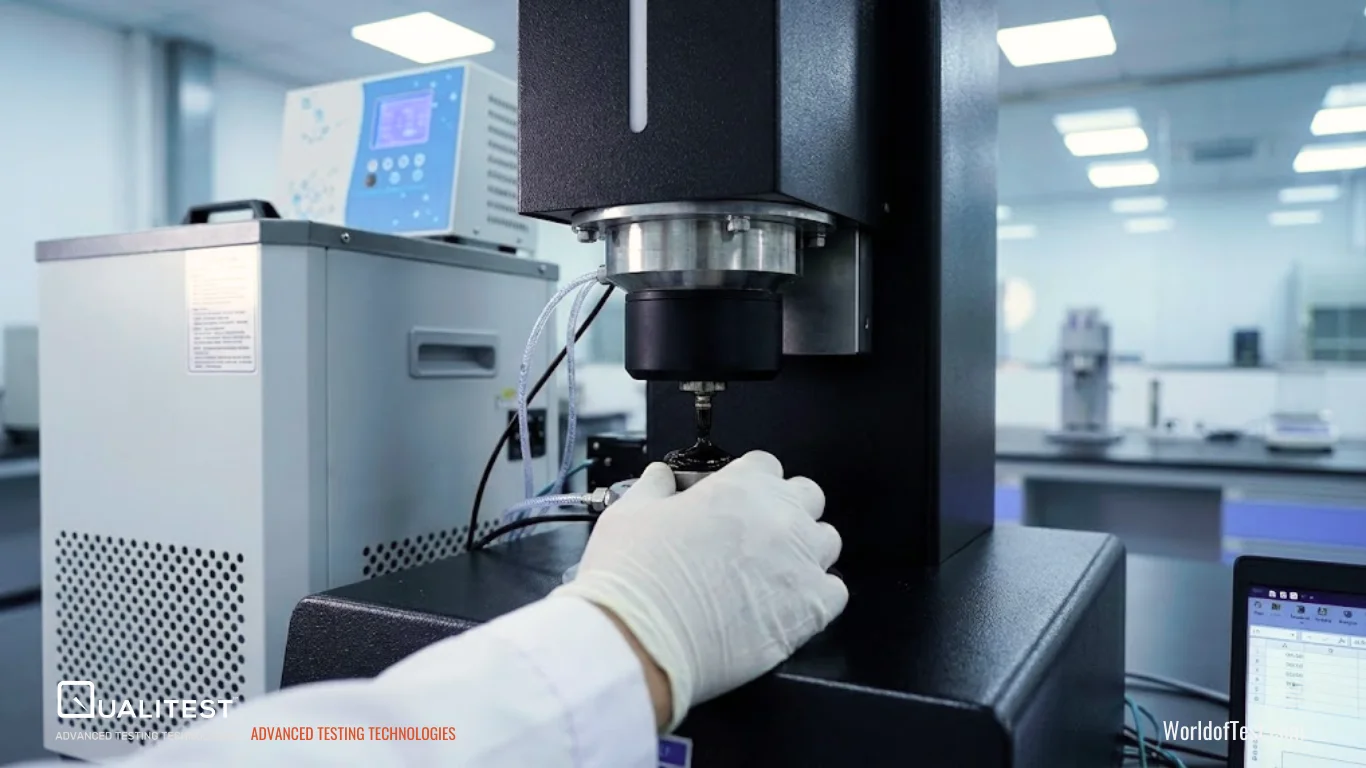

We have seen that traditional test methods struggle to accurately characterize these advanced materials. Superpave performance grading, particularly when using a precise QualiDSR™ (Dynamic Shear Rheometer), effectively measures their enhanced elastic recovery and complex shear modulus.
This ensures the material actually meets the project's rigorous specifications.
A More Realistic Approach to Durability with Superpave Performance Grading
A key strength of the Superpave performance grading system is how it accounts for the aging process. Asphalt properties change from the heat of production and continue to change through years of oxidative exposure.
Superpave simulates these two distinct life stages:
- Short-term aging: It mimics the stresses the binder undergoes during the mixing and paving process.
- Long-term aging: It simulates the gradual hardening that occurs over years of in-service operation.
While the system is robust, we recognize that some limitations remain, such as deficiencies in certain test methods and evaluation indicators. Ongoing research aims to address these issues to further refine the grading system.
Comparison: Traditional vs. Superpave Methods
The operational differences become clear when viewed side-by-side. Traditional methods primarily rely on empirical measures such as penetration and viscosity, which do not adequately predict pavement performance under different environmental and loading conditions, whereas Superpave incorporates climatic data and performance-based testing.
| Feature | Traditional Grading | Superpave Performance Grading |
|---|
| Testing Temperature | Fixed, standard laboratory temperature | Temperatures directly relevant to the project's climate |
| Aging Simulation | Does not account for aging in a meaningful way | Simulates both production and long-term in-service aging |
| Material Suitability | Limited effectiveness for modified asphalts | Essential for accurately grading Polymer Modified Asphalts |
| Engineering Logic | Based on historical, empirical data | Based on fundamental rheological properties (Zeiada et al., 2022) |
The Financial Case for Precision
Why invest in the equipment required for Superpave performance grading? The justification is found in Life Cycle Cost Analysis (LCCA).
We believe that effective quality control is an investment, not just an operational cost. Using Superpave leads to more durable pavements, demonstrated by superior mechanical performance compared to traditional methods like the Marshall mix design. This ensures the binder is fit-for-purpose and extends the service life of the pavement.
This reduces the financial risk of warranty claims and delivers a better return on investment for every mile paved.
Superpave Grading Success with Qualitest
Achieving the full advantages of Superpave performance grading requires accurate material characterization using trusted instruments.

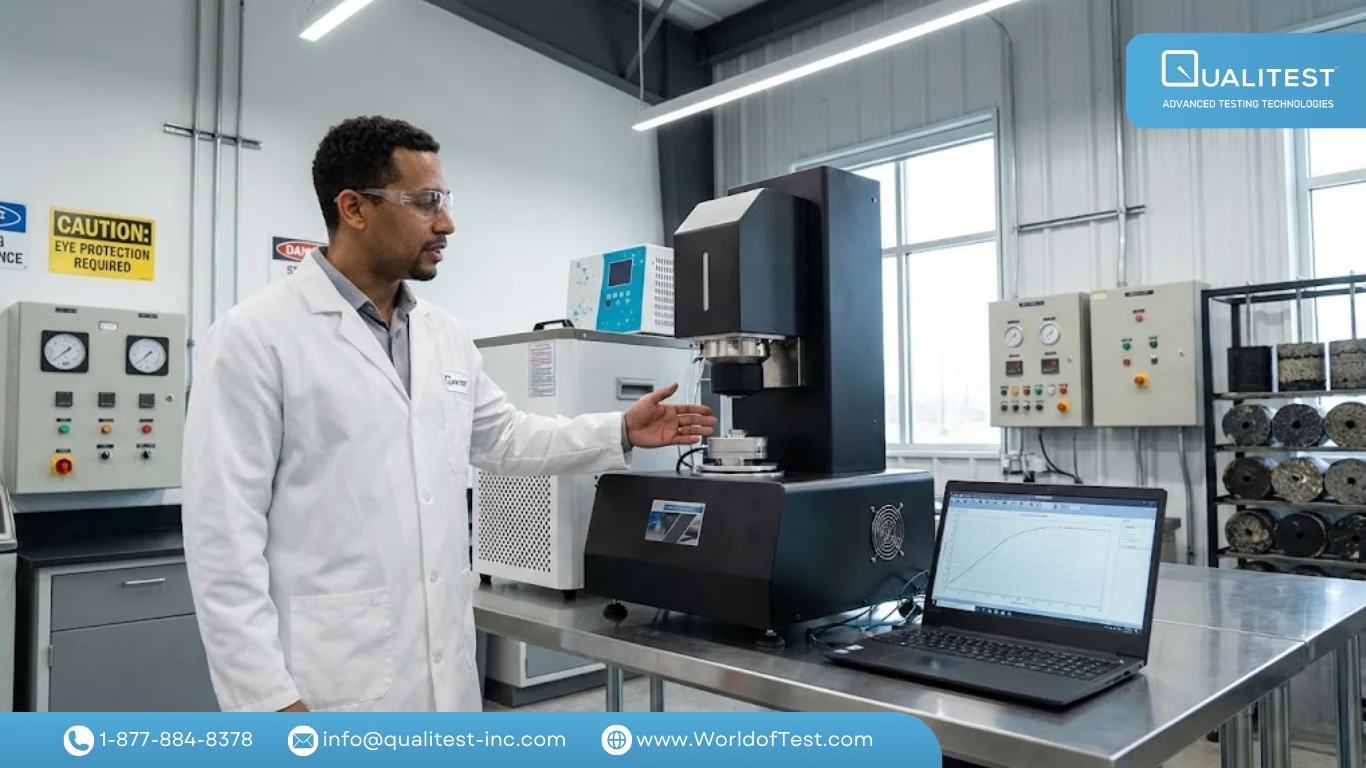

At Qualitest, we understand that operational complexity can be a significant barrier. Our QualiDSR™ series is engineered not just for precision, but for ease of compliance. We think lab personnel should focus on results, not on manual calculations. That is why our software automates the process, delivering clear pass/fail results based on AASHTO and Superpave standards.
We are committed to providing top-tier testing solutions that meet these demanding industry standards. If you are looking to enhance your quality control and build more resilient infrastructure, we invite you to explore our cost-effective Rheometers here.
References:
- Aenlle, A., Fournier, J., Acosta, C., Hernández, D., & Rojo, T. (2021). Determination and Zoning of Asphalts Performance Grade for Cuba According to the Superpave Methodology. Ingeniería y Desarrollo.
- Asi, I. (2007). Performance evaluation of SUPERPAVE and Marshall asphalt mix designs to suite Jordan climatic and traffic conditions. Construction and Building Materials, 21, 1732-1740.
- Hajj, R., & Bhasin, A. (2018). The search for a measure of fatigue cracking in asphalt binders – a review of different approaches. International Journal of Pavement Engineering, 19, 205 - 219.
- Ronald, M., Chehab, G., & Fakhreddine, M. (2020). Determination of Temperature Zoning for the Great Lakes Region of Africa based on Superpave System.
- Tutu, K., Ntramah, S., & Tuffour, Y. (2022). Superpave performance graded asphalt binder selection for asphalt mixture design in Ghana. Scientific African.
- Zeiada, W., Liu, H., Ezzat, H., Al-Khateeb, G., Underwood, S., Shanableh, A., & Samarai, M. (2022). Review of the Superpave performance grading system and recent developments in the performance-based test methods for asphalt binder characterization. Construction and Building Materials.
