Skid Resistance and Friction Tester: Methods & Standard

Wet pavements and slippery floors create immediate legal liabilities. For highway engineers and property managers, verifying surface grip is a critical daily priority to prevent accidents and lawsuits.

You need the exact compliance methods and testing hardware to secure legally defensible data. Read on to align your testing program with global regulations and select the right instruments for your operations.

Key Takeaways

• Skid resistance measures vehicular tire grip while slip resistance focuses on pedestrian footwear.
• Selecting the correct equipment depends heavily on the specific international standards required for your project.
• The swinging pendulum tester provides a highly portable and cost-effective solution for both laboratory and field use.
• Consistent calibration and proper maintenance are mandatory to ensure your test data holds up in legal audits.


Skid Resistance vs. Slip Resistance: Key Distinctions

We frequently consult with safety managers, and a surprising number of them conflate these two testing terms. In our view, this is a critical oversight. While the underlying physics of rubbing friction appear similar, research shows that skid tests and slip tests capture fundamentally different friction behaviors. Treating these applications as interchangeable can lead to acquiring the wrong testing gear. Let's break down the distinction clearly:

• Tire Grip (Skid Resistance): This focuses on vehicular traffic. It measures how effectively rubber tires grip roadways under wet conditions, primarily reflecting geometric surface roughness or macrotexture when a tire is fully or partly prevented from rotating.
• Footwear Grip (Slip Resistance): This focuses on pedestrian traffic. It evaluates how much shoe soles will slide on commercial lobby floors or walkways, relying primarily on interface-level adhesion and microtexture.

We firmly believe that utilizing an instrument capable of measuring both is a highly efficient operational shortcut. Modern, versatile equipment like the Floor Slip Resistance Tester (Quali-FSRT303) allows your quality assurance team to evaluate both vehicle and pedestrian pathways without the need to purchase and maintain two separate machines.

However, before selecting any equipment, it is essential to align your testing program with the legal guidelines that govern your specific sector.

Regulatory Standards and Field Applications

If you are responsible for quality control or procurement, testing only matters if it strictly adheres to official regulatory handbooks. While "skid resistance" is the dominant engineering term for road pavements, evidence shows it is highly device-specific and should never be treated as a universal friction property. From our standpoint as equipment providers, matching the right standard to the specific field application is the absolute starting block of a solid safety plan:

Highway Pavements and Stone Aggregates

Heavy traffic inevitably polishes road surfaces. To determine how quickly specific stone aggregates lose their grip, laboratories run the Polished Stone Value (PSV) test according to the official BS EN 1097-8 standard. In our view, some projects treat this aggregate check as a minor administrative step. However, we believe it is one of the most critical indicators of a highway's ability to remain safe years down the line.

For instance, consider a regional aggregate quarry supply company bidding on a major highway resurfacing contract. Before the department of transportation accepts their basalt gravel, the quarry must run the PSV test to prove that the aggregate can withstand heavy traffic without polishing into a slick surface over time. Failing this test means losing a business-critical supply contract, making standard compliance a direct financial milestone.

Pedestrian Walkways and Public Facilities

Commercial property managers rely on portable testing instruments to mitigate slip-and-fall liabilities on smooth or wet flooring, complying with standards such as BS 7976 (and BS 13036-4:2003), as well as the AS/NZS 4586 standard.

The Baseline Global Standard

The primary international standard for measuring surface frictional properties with a swinging pendulum device is ASTM E303. We consider it the gold standard utilized by research laboratories and road crews worldwide. The most reliable hardware is dispatched fully calibrated to this exact standard, arriving with a formal Calibration Certificate so teams can begin testing immediately.

Identifying the exact standards your facility must meet will dictate the mechanical architecture of the device you require.

Evaluating Test Equipment: Pendulum vs. Dynamic Friction

Once you are clear on the standards, the next step is choosing the right equipment. Most buyers compare two primary spot-testing options: the classic British Pendulum Tester (BPT) and the dynamic, wheel-based Dynamic Friction Tester (DFT).

While high-speed dynamic testers evaluate friction across a range of speeds, we firmly believe the classic swinging pendulum remains the true workhorse of the industry. The BPT operates at lower speeds (around 10 km/h) and is highly sensitive to directional microtexture differences, whereas the DFT circular path can miss important directional polishing effects entirely.

Furthermore, results from the two devices cannot be used interchangeably due to differences in sliding speed, rubber hardness, and friction-generation mechanisms.

In our opinion, the versatility, directional sensitivity, and long-term cost efficiency of the swinging arm make it a far more practical daily asset. Every component of a high-quality pendulum tester, such as a low friction pendulum arm with a lightweight pointer, a precisely calibrated 1500 ± 30 g rocker weight, and a controlled 22.2 ± 0.5 kN positive static pressure on the pavement, is built to be exceptionally resilient.

To illustrate this in the field, consider a municipal transit authority assessing a dedicated bus lane. Because heavy buses travel and brake in a single direction, they create highly directional wear on the pavement. A testing crew using a BPT can detect the subtle difference between longitudinal and transverse friction patterns.

However, a rotating DFT spinning in a circular path will average these directional variations out, potentially missing local, directional slick spots entirely.For teams that require an exceptionally accurate, highly portable instrument for both laboratory and field use, we highly recommend the swinging arm as the most sensible, multi-purpose option.

Once you establish that a swinging pendulum is the most practical direction for your operations, evaluating specific design elements becomes the next priority.

BPT vs. SCRIM / GripTester

In highway and pavement engineering, friction testing generally falls into two distinct categories: continuous network-level surveying and localized spot-testing.

Continuous Friction Measuring Equipment (CFME), such as SCRIM (Sideway-force Coefficient Routine Investigation Machine) vehicles and towed GripTester units, excels at rapidly screening long stretches of highway networks and airport runways at traffic speeds. While these systems identify macro-level friction trends across hundreds of kilometers, they are high-cost, vehicle-dependent, and incapable of conducting localized directional investigations, pedestrian floor checks, or laboratory material testing.

Portable pendulum devices like the British Pendulum Tester (BPT / Quali-FSRT™ 303) serve as the essential companion instrument for highway engineers and testing laboratories. The BPT provides a budget-friendly, highly accurate spot-testing solution to investigate high-risk accident hotspots, measure directional microtexture polishing on heavy-braking lanes, and perform mandatory laboratory aggregate evaluations such as the Polished Stone Value (PSV) test (BS EN 1097-8).

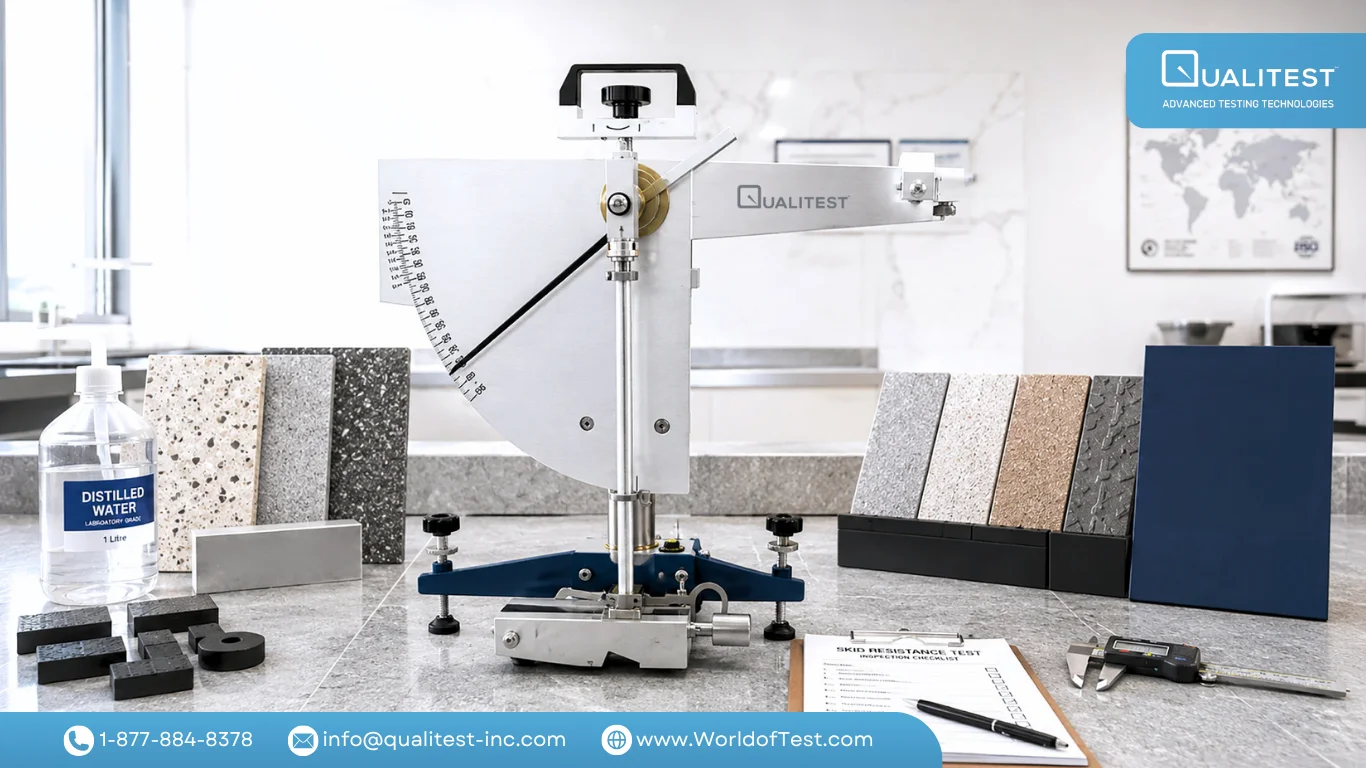

Essential Features of a Pendulum Tester

Not all pendulum testing instruments are built to the same standards of quality. A reliable friction tester should closely control the variables that most strongly change measured friction, such as wet-condition realism and repeatable contact. If you are comparing machines for your quality control lab or field testing crew, we strongly suggest verifying these critical features:

• Application-Specific Scales & Base Plates: A high-quality tester should feature the standard main scale for regular pavement checks, alongside a built-in 'F' Scale designed specifically for use with a small slider set at a 76mm slide length (which is mandatory for the PSV aggregate test). Additionally, look for options to add a metal base plate or fixing devices for laboratory polished tests and natural stones (EN1341, 1342).
• Application-Specific Rubber Sliders: These devices utilize replaceable rubber blocks to simulate different contact surfaces. Your instrument must accommodate the standard 126 mm Slider 55 (weighing 16 g) for road surfaces, the Slider 55 variant for PSV Tests, and the FOUR S (Slider 96) for internal floors.
• Heavy-Duty Field Durability & Accessories: Look for a highly resilient frame supplied with a sturdy aluminum alloy air transport case featuring dense foam inserts to protect the delicate pendulum arm during transit. Having essential hardware tools included, such as a Perspex setting gauge, a C Spanner (for attaching/releasing the arm), a 17mm spanner, a water spray bottle, and a cleaning brush, drastically improves field efficiency.

Based on these demanding criteria, we offer the Skid Resistance and Friction Tester Quali-FSRT™ 303 equipped with all these capabilities, providing a highly reliable, compliant option for meeting ASTM and PSV guidelines.

Equipment Calibration and Maintenance Requirements

Acquiring a high-quality instrument is only the first step. To ensure your test data remains legally defensible, keeping your device highly accurate for regulatory audits is the real challenge. Uncalibrated equipment offers zero protection in a courtroom, making high repeatability an absolute requirement.

If a commercial property owner faces a slip-and-fall lawsuit, data collected with expired rubber sliders or uncalibrated gear will be dismissed immediately. To secure a strong defense, testing logs must be verified by a properly standardized device.

From adjusting leveling feet (ideally with feet pads for placing on soft ground) to replacing expired sliders and scheduling annual weight calibrations, maintaining your hardware is a detailed process. To help you avoid compliance failures, we created a dedicated, step-by-step walkthrough.

Read our in-depth guide to friction tester calibration and maintenance to ensure your audit records remain completely spotless. Maintaining your equipment to these strict operational standards ensures that the data you present remains an asset, which is a core reason we prioritize service alongside hardware.

Why Choose Qualitest's Skid Resistance and Friction Tester?

We believe that a high-quality testing instrument should do more than just produce numbers; it should provide your organization with complete peace of mind. Our team focuses on engineering machines that are highly reliable, simple to operate, and strictly compliant.

We supply testing systems compliant with all major international standards, including ASTM E303, AS/NZS 4586, BS EN 1097-8, and even specialized metrics like BS 8204 and BS 7188. We are here to support your QA team with highly dependable friction testing instruments.

Contact our experts for a custom quote today to keep your operations safe, compliant, and fully protected.
