Dynamic Shear Rheometer (DSR) Test: The Complete Guide

How can you ensure your asphalt binder will perform flawlessly under the stresses of traffic and extreme temperatures? The answer lies in mastering a remarkable piece of equipment: the Dynamic Shear Rheometer (DSR).

This instrument is the definitive tool for characterizing a binder’s properties, allowing engineers to design durable, long-lasting pavements with confidence. Understanding this test is the single most important step for any lab committed to delivering superior quality and compliance.

Key Takeaways

• Predicting Pavement Failure: The Dynamic Shear Rheometer (DSR) measures how asphalt binder resists deformation and flow to predict risks like rutting at high temperatures and fatigue cracking at intermediate temperatures.
• Strict Compliance Requirements: Accredited labs must follow AASHTO T315 or ASTM D7175 standards which demand precise temperature stability within 0.1°C to ensure data validity.
• Importance of Geometry: Accurate results depend on using the correct plate size, specifically 25 mm plates for softer binders at high temperatures and 8 mm plates for stiffer binders at intermediate temperatures.
• Avoiding Common Errors: Small procedural mistakes such as over-trimming the sample edge or failing to wait for thermal equilibrium can significantly skew stiffness results and jeopardize certification.
• Advanced Testing Solutions: Modern laboratories rely on instruments like the QualiDSR™ to automate critical steps like gap setting and to perform advanced MSCR testing for polymer-modified binders.


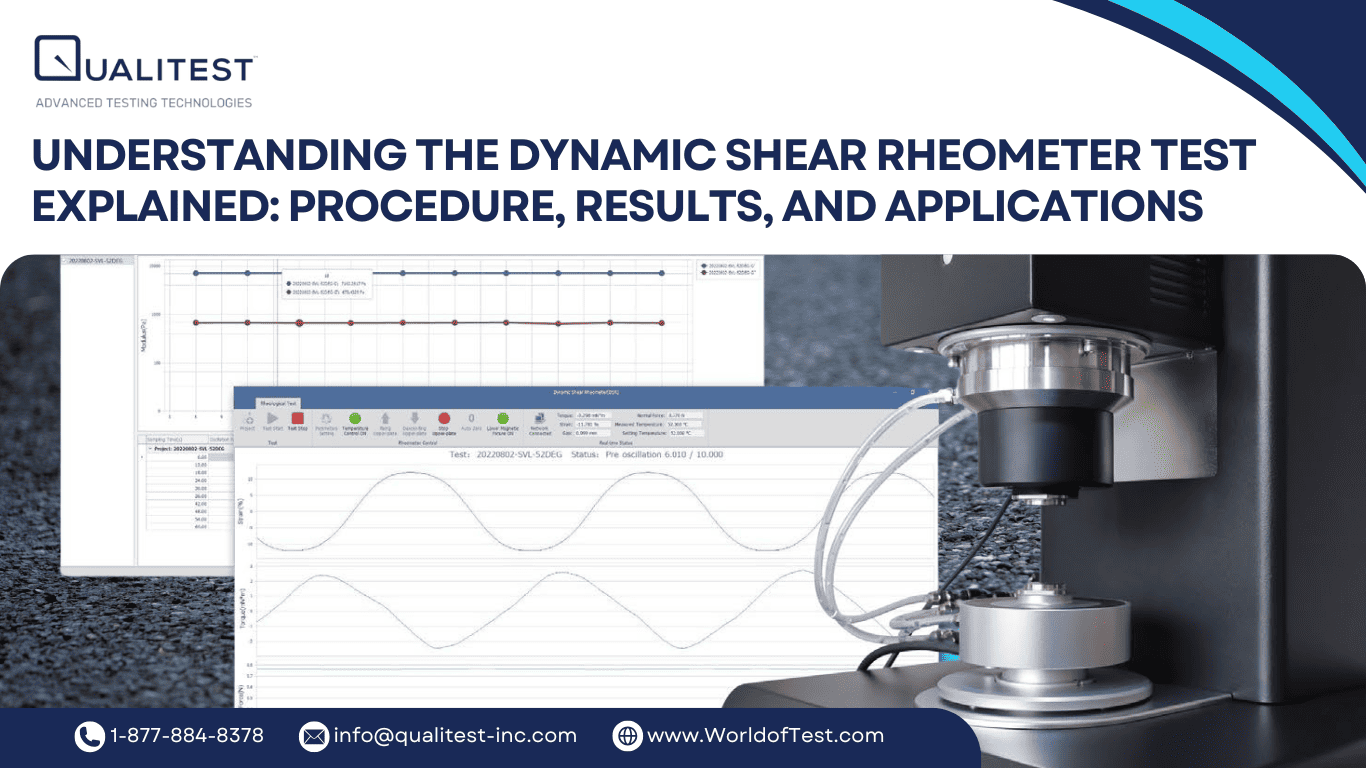

So, What is a Dynamic Shear Rheometer, Really?

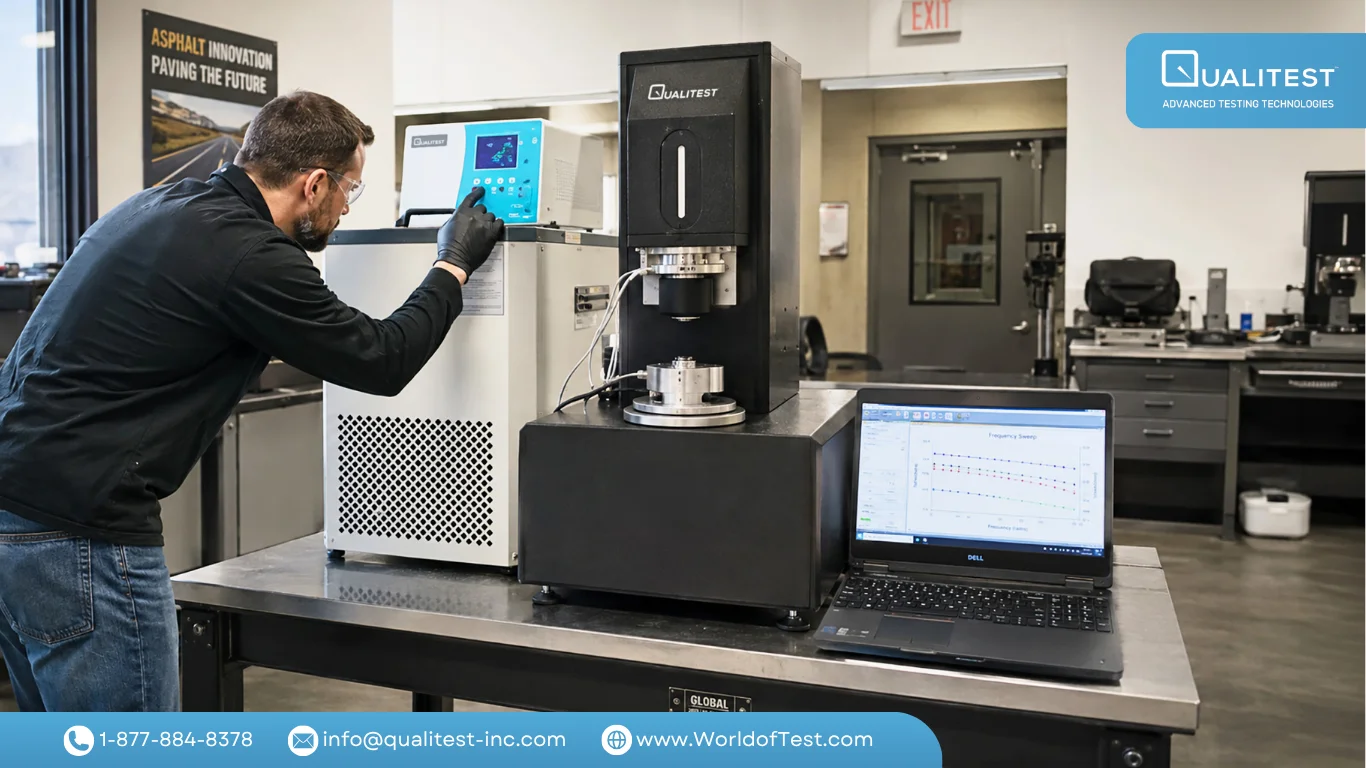

You can think of a DSR as a highly sensitive instrument that reveals asphalt's fundamental properties. It goes far beyond a simple viscosity check. Instruments like the QualiDSR™ place a small amount of asphalt binder between two circular plates and apply a controlled, oscillating twist to the top plate.

This back-and-forth motion is engineered to simulate the stresses of vehicle tires passing over the pavement. By applying this oscillatory shear, the instrument measures the resulting stress and strain responses to determine key parameters such as complex modulus and phase angle.

These metrics help us characterize exactly how the material behaves under different temperatures and loading frequencies, determining if the binder acts more like a springy, elastic solid or a flowing, viscous liquid.

Why DSR Testing is Genuinely Critical for Performance

We are all working to prevent two primary types of road distress, and the DSR is our best predictive tool for identifying these risks ahead of time. DSR testing is valued because it offers an efficient, precise, and relatively quick evaluation of binder performance across a wide temperature range.

To understand why this matters, picture a fully loaded semi-truck sitting at a standstill on a highway in Phoenix, Arizona, in the middle of July. The pavement temperature might be soaring past 60°C. In that moment, you need a binder that refuses to flow under that heavy, static load.

Contrast that with a rural road in Minnesota during a deep January freeze. There, the main threat is the pavement becoming so brittle that it snaps like glass under stress. The DSR helps us engineer a material that can handle specific extremes:

• Rutting: You know the channel-like grooves that appear in the wheel paths on a hot day? That is rutting. It is a clear sign the binder has become too soft to resist permanent deformation under load.
• Fatigue Cracking: This is the interconnected, "alligator skin" cracking that appears as a pavement ages. It indicates the binder has become too stiff and brittle to flex without breaking.

While standard practice often pairs the DSR with the QualiBBR™ (Bending Beam Rheometer) for low-temperature verification, it is worth noting that the DSR can also be adapted to assess these low-temperature properties. Recent research suggests it could potentially supplement or even replace traditional methods like the BBR in specific applications.

Without proper DSR analysis, you are essentially making an educated guess about future performance. In this industry, guessing is how you end up with roads that fail before their time, creating a costly problem for everyone involved.

The Foundation of Good Data: AASHTO T315 and ASTM D7175

For any accredited lab, following the established standards is non-negotiable. The two primary methods that govern DSR testing are:

• AASHTO T315: Standard Method of Test for Determining the Rheological Properties of Asphalt Binder Using a Dynamic Shear Rheometer (DSR).
• ASTM D7175: Standard Test Method for Determining the Rheological Properties of Asphalt Binder Using a Dynamic Shear Rheometer.

These documents specify every detail of the process. They call for exceptionally tight temperature control, requiring stability within ±0.1°C. From our perspective, any machine that cannot hold this temperature stability will produce questionable data at best. This is why the QualiDSR™ is engineered with advanced thermal management systems to strictly adhere to these requirements.

The DSR Test Procedure Step-by-Step

Reliable results are born from a precise and consistent setup. We have found that the instrument itself is rarely the source of error. Instead, it is the preparation stage where mistakes tend to happen.

Simulating the Binder's Service Life

You rarely test binder in its original, fresh state. It must be aged to properly simulate how it will perform over its lifetime.

• Original Binder: This is the as-delivered material.
• RTFO Aged: The sample is heat-treated in a rolling oven to mimic the short-term aging that happens during asphalt production.
• PAV Aged: The sample is exposed to heat and pressure to simulate the long-term oxidative aging that occurs over five to ten years in the field.


Proper Equipment Configuration: Plates and Gaps

Using the incorrect geometry is one of the most common technical errors we see. The procedure typically involves preparing a small sample between parallel plates.

While standard Superpave uses 25 mm or 8 mm plates, research has also explored 4 mm geometries for specific applications. It is critical to note that sample preparation and geometry significantly influence test repeatability and accuracy.

Procedure Overview:

1. Heating: Warm the asphalt sample until it is fluid enough to pour.
2. Loading: Place an appropriate amount onto the bottom plate.
3. Trimming: Lower the top plate to a preset gap and carefully trim the excess material that is squeezed out from the edges.
4. Testing: Set the final gap, allow the sample to reach thermal equilibrium, and begin the test.


Common Pitfalls That Can Compromise Your DSR Results

Even with the best equipment, operator technique can have a major impact on the final numbers. We strongly suggest technicians watch out for these subtle issues that can skew data:

Over-Trimming the Sample

If you remove too much binder from the edge, creating a concave shape, you effectively reduce the sample's diameter. This will cause the machine to report a lower, inaccurate stiffness (G*).

Not Allowing for Thermal Equilibrium

Asphalt is highly sensitive to temperature. If you start the test before the sample has stabilized for at least 10 minutes, your results will not reflect its properties at the target temperature.

Incorrect "Zero Gap" Reference

The instrument must be zeroed properly. If this is done at one temperature and the test is run at another, the thermal expansion of the metal fixtures can alter the gap and invalidate the results. Ideally, your lab uses a unit like the QualiDSR™, which mitigates this with automated gap compensation features.

Interpreting the Data: G* and Phase Angle (δ)

The DSR generates two key values that describe the binder's behavior. We think of these as defining the material's overall resistance and its elastic nature.

To visualize what these numbers actually mean, it helps to think of everyday materials.

• Ideally Elastic (δ = 0°): Think of a steel spring. If you twist it, it snaps back instantly to its original position. It stores all that energy.
• Ideally Viscous (δ = 90°): Now, picture warm molasses. If you stir it, it just flows. It doesn't try to snap back at all; the energy is lost.
• Viscoelastic (Asphalt): Asphalt is like chilled pizza dough. If you pull it, it stretches (viscous), but it also resists and tries to pull back slightly (elastic). The DSR measures exactly where on that spectrum the binder sits.


1. Complex Shear Modulus (G*)

This value represents the binder's total resistance to being deformed.

• A high G* value indicates a very stiff material.
• A low G* value indicates a soft, more pliable material.


2. Phase Angle (δ)

This value shows the relationship between the binder's elastic and viscous responses.

• A 0° angle would be a perfectly elastic material.
• A 90° angle would be a perfectly viscous fluid.
• Asphalt binder exists somewhere between these two extremes.


From Lab Results to Commercial Grades

You regularly see asphalt binder specified as PG 64-22 or PG 58-28. The DSR test is what validates that first, all-important number, which directly influences the product’s application and value.

Consider a hypothetical scenario where a supplier is aiming to sell a premium PG 76-22 binder for a major interstate project. To certify this, the lab must confirm through DSR testing that the binder meets the required stiffness and elasticity at a blistering 76°C.

If the test shows the binder is too soft at that temperature, the batch fails. The supplier would then be forced to downgrade that entire tank to a PG 70-22 or lower.

This isn't just a data point. It is a direct loss of revenue. This link between the DSR test and the binder's market price means that an unreliable rheometer can have real financial consequences.

Moving Forward: The Role of MSCR Testing

While the standard DSR test is effective for conventional binders, it can struggle to properly characterize today's advanced polymer-modified asphalts. Because of this, the industry is increasingly adopting the Multiple Stress Creep Recovery (MSCR) test.

Moreover, specialized DSR setups have been developed to evaluate fatigue performance, adhesion, and cohesion of bituminous materials. This expands the instrument's application far beyond simple rheological characterization.

We advise any lab planning for the future to ensure their rheometer—whether it is the QualiDSR™ or another advanced unit—is equipped to handle these advanced testing protocols.

Trust Your DSR Test with a Qualitest Rheometer

Meeting the tight tolerances of AASHTO T315 requires equipment that is both accurate and reliable. You shouldn't have to struggle with your instruments to produce data you can trust.

The QualiDSR™ Rheometer is engineered for labs that demand efficiency and precision. It replaces cumbersome water baths with clean, exact Peltier temperature control and minimizes operator error with automated gap setting. The QualiDSR™ comes prepared to run all the essential standards, from AASHTO T315 to T350 (MSCR), making it a sound solution for both routine quality control and advanced research.

Need technical specifications or a quote? Explore the QualiDSR™ Series or contact our team to discuss your laboratory's requirements.
